Pickup Truck
Types of Pickup Truck Magnets
There are 3 types of magnets for pickup trucks differentiated by their mounting position:
Front Mount Pickup Truck Magnets
Front mounted magnets are mounted similar to a snow plow, they allow you to pick up debris before you drive over it, but they also tend to be more expensive.
Tow Behind Pickup Truck Magnets
Tow behind magnets come in a number of varieties to suit different uses.
Hanging Pickup Truck Magnets
Hanging magnets usually are hung from the front of the Pickup Truck like a Front Mount magnet to allow you to pick up debris before you drive over it.
A Hanging Magnet Designed to be Raised and Lowered as Needed. With Quick Clean Off Sleeve
Previous
Next
$1,999.99 USD – $2,299.99 USDSelect options
(all prices in USD)
Available in 4 sweeper widths: ISO 62″, ISO 74″, ISO 86″, ISO 98″
The ISO magnetic sweeper is a hanging magnet design specifically designed for highway maintenance operations.
The ISO design allows you to leave the magnet permanently mounted, enabling you to lower and deploy the magnet for use when needed, and then easily raise and secure it when not needed or for transport between locations.
High end “bumper wheels” keep the magnet off the ground and multiple mounting points keep this magnet where it should be.
A Quick Clean Off Sleeve makes cleaning debris off the magnet easy!
Get prices, specs, photos, videos, reviews and more...
A Hanging magnet made for dirt and gravel yards and roads.
Previous
Next
$799.99 USD – $1,999.99 USDSelect options
(all prices in USD)
Available in 6 sweeping widths: 38″, 50″, 62″, 74″, 86″, 98″
With 10” inch x 3” inch wide flat proof Bumper wheels.
The EIGER was designed for those slightly more off-road surfaces with more uneven surfaces such as dirt and gravel where potholes and bumps exist.
Designed with wide wheels to stay on top of those surfaces, and also designed with a greater minimum sweeping height of 2.5”inches to prevent the sweeper from hitting the ground.
Comes standard with black PVC Quick Clean Off Sleeve for easy debris removal, and 4 hanging chains with 8 quick clips to hang the EIGER from your vehicle.
Get prices, specs, photos, videos, reviews and more...
Durability, Power & Easy Clean Off System. Spring Assisted Clean Off!
Previous
Next
The Yacare magnetic sweeper is a 72 inch wide, durable off road tow behind magnetic sweeper with Spring Assisted Clean off that makes cleaning off the magnet easy.
Although the Yacare is a little on the small side to be seen behind full size pickup trucks it's perfect for smaller or mid-sized pickup trucks.
Yacare has the pick up performance for off road conditions provided by the "Wrap Around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory.
This thing is built like a tank. Check out the CAD drawings.
Get prices, specs, photos, videos, reviews and more...
Power & Durability in an 82 inch width. Similar to the Yacare Only Bigger!
Previous
Next
The Caiman magnetic sweeper is one step up from the Yacare magnetic sweeper. Like the Yacare, the Caiman magnets are enclosed and it has Dual Spring Assisted Debris Release Handles to make cleaning off the magnets easy.
However, the Caiman is wider with an 82 inch width and it has much more power with 50% more magnets than the Yacare.
The increased power and wider sweeping width make the Caiman a good choice for towing behind pickup trucks.
The Caiman also has solid pick up performance in off road conditions provided by the "Wrap Around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory.
Check out the Caiman CAD drawings for details.
Get prices, specs, photos, videos, reviews and more...
Fully Enclosed Automatic Tow Behind Magnet. Built for off road conditions!
Previous
Next
The Aardvark magnetic sweeper is a tow behind magnet design specifically built for off road, uneven or rough gravel dirt road conditions such as found in large landfills, industrial sites, mines, mine haul roads, logging roads, etc. Fully enclosed and automatic clean off and a lot features specifically for harsher conditions.
Get prices, specs, photos, videos, reviews and more...
Tow Behind Magnetic Sweeper Designed for Cleaning Large Flat Surface Areas.
Previous
Next
$7,299.99 USD – $7,699.99 USDSelect options
(all prices in USD)
Available in 2 sizes: Piranha 96″, Piranha 120″

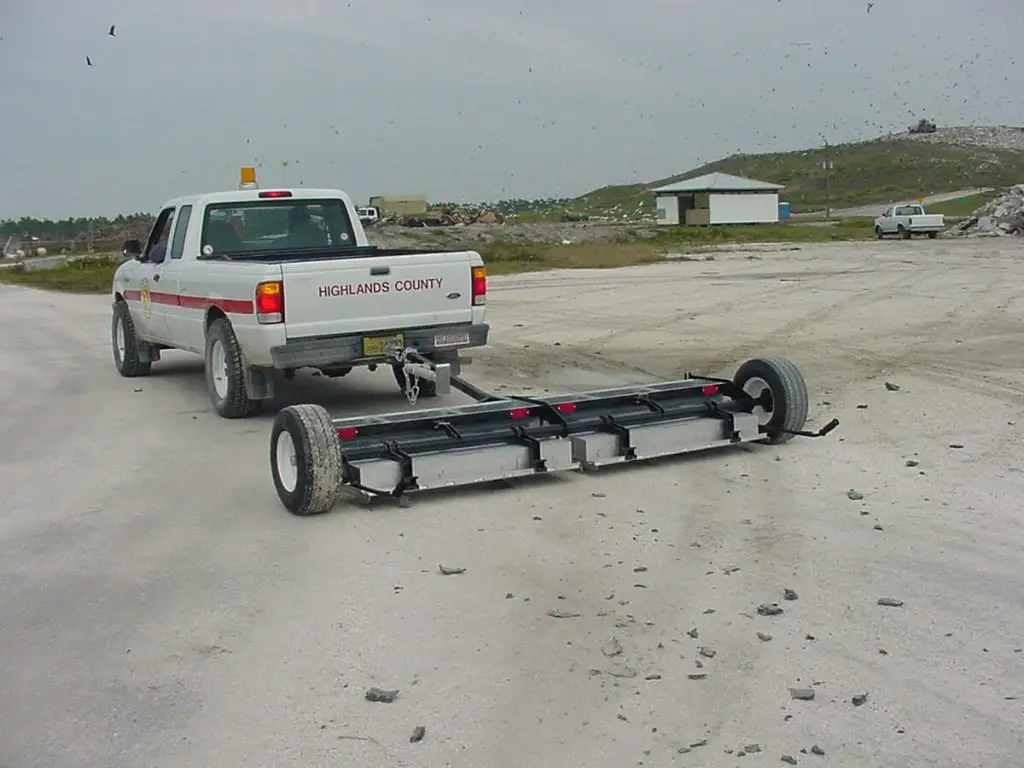

The Piranha magnetic sweeper is a tow behind design magnet specifically built for flat on road conditions, parking lots, airfields, etc. A simple design that looks similar to other flat surface tow behinds on the market but is a cut above the rest.
Get prices, specs, photos, videos, reviews and more...
Economical Hanging Magnetic Bar. Easily attach to pickup trucks in a variety of positions.
Previous
Next
$399.99 USD – $1,229.99 USDSelect options
(all prices in USD)
Available in 3 magnet housing sizes: Wrasse 2″x5″, Wrasse 3″x 3″, Wrasse 4.5″ x 4.5″
Available in 7 sweeping widths: 26″, 38″, 50″, 62″, 74″, 86″, 98″
The Wrasse magnetic bar is the most economical hanging design option because you’re paying for just a big magnet bar. Hang it underneath with the two included mounting chains and you’re off and ready to go!
The Wrasse comes in three different magnet strengths and different widths to suit your budget and needs. But if your vehicle bounces around a lot such that the magnet could hit the ground a lot as well, this may not be the best option.
There is also an optional Quick Clean Off Sleeve for the Wrasse 3"x 3" and 4.5″ x 4.5″ which makes cleaning debris off the magnet bar easy.
Get prices, specs, photos, videos, reviews and more...
Off Road Hanging Magnet Designed to be raised or lowered, as needed.
Previous
Next
$2,099.99 USD – $2,549.99 USDSelect options
(all prices in USD)
Available in 4 sizes: 62”, 74”, 86”, 98”
The KHAMSIN hanging magnet was designed for more “off road” applications such as gravel, sand, and dirt roads and yards, or grass covered areas. Ideal for rural roads or gravel roadsides. Ideal for gravel parking lots and driveways.
The Khamsin design allows you to leave the magnet permanently mounted, enabling you to lower and deploy the magnet for use when needed, and then easily raise and secure it when not needed or for transport between locations.
Larger 10” x 3” flat proof bump wheels keep the magnet from hitting the ground or sinking into softer ground surfaces.
The Khamsin has a slightly higher minimum sweeping height of 2.5” inches compared to the ISO’s minimum sweeping height of 1.75” inches, in order to operate more effectively in off road applications.
A Quick Clean Off Sleeve comes standard for quick and easy debris removal.
Get prices, specs, photos, videos, reviews and more...
For Flat asphalt and concrete terrain! With bump wheels for some added protection.
Previous
Next
$764.99 USD – $1,959.99 USDSelect options
(all prices in USD)
Available in 6 sizes: 38”, 50”, 62”, 74”, 86”, 98”
The PYR hanging magnet was designed for flat terrain and “on road” type uses where not much ground strike prevention is needed. “On road” type bump wheels are provided on the ends to eliminate magnet strikes due to occasional potholes, incline ramps and speed bump type obstacles.
Choose from 2 different models with different magnet strengths, and 6 different magnet lengths from 3 to 8 feet, to get the perfect setup for your application.
Maximum lifting height of 6” inches (using a 2 ½ inch nail) for the PYR 3”x3” model, and 9 ¼” inches for the PYR 4.5”x4.5” model. Measuring Magnetic Sweeper pickup power and performance.
Also includes 4 stabilizing chains with 8 quick clips to hang the PYR from your vehicle.
Standard debris clean off method is to wipe the magnet clean with a glove or rag. However a black PVC Quick Clean Off Sleeve accessory may be purchased separately for quick and easy debris removal.
Get prices, specs, photos, videos, reviews and more...
Remote controlled height adjustment without leaving the cab of your vehicle!
Previous
Next
$4,389.99 USD – $4,539.99 USDSelect options
(all prices in USD)
Available in 2 sizes: ALPHA 86”, ALPHA 98”
With outdoor rated IP65 12-volt DC actuators rated at 562 lbs each and 7.5” inches of up and down movement for remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position.

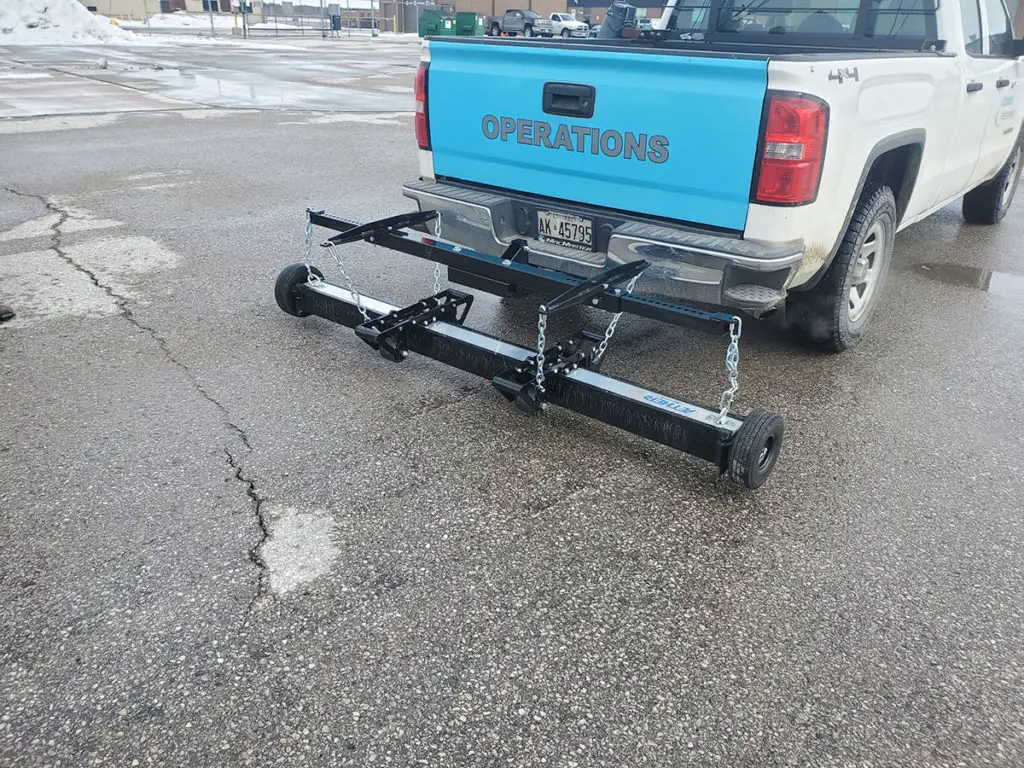

The ALPHA is the same as the AETHER magnetic sweeper but with the addition of the remote-controlled electric actuators for up and down movement.
Like the AETHER the ALPHA was designed for those off-road dirt and gravel situations where more ground strike prevention is needed.
The 10” x 3” flat proof bump wheels on the ends prevent the magnet from hitting the ground and from sinking into loose surfaces, and the wheeled outriggers provide additional ground strike prevention in the middle of the magnet’s overall length.
Maximum lifting height of 9” inches (using a 2 ½ inch nail). See Gauss strength measurements at various sweeping height distances also available.
Comes standard with a black PVC Quick Clean Off Sleeve for quick and easy debris removal.
Get prices, specs, photos, videos, reviews and more...
Remote – Controlled Clean off & Height Adjustment!
Previous
Next
Built to Retrieve Ball Milling Steel Abrasive Material
The Mammoth magnetic sweeper is built to clear big spaces quickly, the powerful 12” x 12” x 68” alternating pole C8 magnetic assembly can hold huge amounts of metallic debris before needing to be cleaned off and can pick up a 2.5” nail from 16” off the ground. The Mammoth can retrieve the even the most elusive debris types including the nickel/steel balls used in material processing from within its 2” – 7” sweeping range.
Height adjustment and clean off is just as heavy duty as the magnetic power, these functions can be controlled from the tow vehicle using a wireless remote that activates the 12v 3000psi hydraulic system that controls magnet position and trailer height.
Comes standard with lights & fenders, on-board battery charger, and pintle ring hitch. Debris digging rake and grader attachments are optional accessories that extend the function of the Mammoth to grooming roads and industrial yards with gravel or packed surfaces.
Check out the Product Demo Videos to see the Mammoth in action in different applications.
Get prices, specs, photos, videos, reviews and more...
Quick Tips
What do the staff of Bluestreak have to say on the subject of pickup truck magnets?
Pickup Truck hanging magnets quite frankly would be my last option, only because truck suspensions cause a lot of bounce, that can cause magnets to hit the ground. You don’t get that with front mount or trailer tow behind units. So if you need to use a hanging magnet, make sure there’s some protection from hitting the ground.
Tony - Bluestreak Equipment
Shipping Costs & Methods
Shipping Options
Shipping options and charges available at checkout.
Real-Time Shipping Rates
Shipping rates are calculated by connecting directly to shipping carriers, giving you real time shipping quotes when you order online.
International Shipping
Some international orders outside North America may require a freight quote on checkout before the order can be completed.
Payment Methods
Full line of magnetic sweeper products. All items in stock. Shop Online and Pay by Visa, Visa Debit, Mastercard, American Express, Discover, Diners Club, JCB, PayPal or Pay by Cheque or EFT / Wire Transfer.
Know what you need for your next project?
8 Questions to Ask Before Buying a Pickup Truck Magnetic Sweeper
How much suspension does your pickup truck have?
Trucks obviously have suspension and they absorb bumps but when they do, the height of the truck from the ground changes, and therefore any hanging magnet can hit the ground. The rougher the ground, the more likely this could happen. So what’s going to prevent the magnet from hitting the ground if your truck suspension compresses 4 inches, or if it does what will protect the magnet? It’s something to consider when selecting a hanging magnet.
What is the danger posed by the debris problem?
If you have an extensive debris problem that will almost certainly cause a flat tire if you run over the debris, then a front mount magnetic sweeper or hanging front mount is a necessity and may be the only consideration in your choice of magnet. A front mounted magnetic sweeper will pick up debris like nails before you run over it, something that seems obviously and practically much better than running over the debris before picking it up.
How much do you want to spend on a pickup truck magnet?
Hanging magnets are the most cost effective because a hanging magnet is essentially just a big magnet bar without most of the other mechanism’s that accompany a tow behind magnet or Front Mount magnet.
How easy is it to mount and secure the magnet?
A Pickup Truck has to be used for other tasks. Therefore it’s important that the magnet can be mounted and dismounted from the Pickup Truck quickly and easily, or alternatively, the magnet can be locked into a position where it will not interfere with normal operation of the truck when not being used for sweeping. If not, then the tow behind solution may be best for you because it can be easily and quickly hitched up when needed.
How easy is the magnet to clean off?
A magnet may work really well at picking up debris, but how easy is it to clean off? Think through how you would clean the magnet off step by step. Make sure it makes sense to you and your situation. We try and do this for you so that clean off isn’t a difficult or time consuming task, but some manufacturers don’t. Pay attention to the details of how this will work from start to finish, right up to the point of getting the debris in the garbage or scrap bin.
How good is the magnet at hanging on to the debris that it picks up?
You are not going to be cleaning your magnet off constantly, so it’s important that when your magnet does pick up a nail or screw that the magnet secures the debris so that it won’t fall off if the magnet is suddenly shaken because of a bump or if the bottom of the magnet hits the ground and the debris is wiped backward on the magnet. The last thing you want is for the debris to fall off again. Make sure your magnet has some feature like our “Wrap Around Feature”, it not only makes sure debris doesn’t get wiped off the bottom of the magnet, it makes the debris holding capacity higher and you’ll find in practice that most of your debris ends up on the side of your magnet not the bottom of it. And that’s a good indication to you why we have this feature.
How far off the ground will the magnet be positioned?
It's important to know how far off the ground you will position the magnet and also how far off the ground the magnet will still perform. For most of our magnets we give you the "Maximum Lifting Height" in the specs. This will tell you how far off the ground the magnet will perform. We want to make sure our products meet your expectations. Make sure you take a look at the magnet's specifications for "Maximum in Lifting Height". We bench test every one of our magnetic sweeper models to determine their maximum lifting height using a two and a half inch standard nail. Everyone knows what a two and half inch nail looks like which is why we use this standard measure of magnet strength and it will give you a very good idea of magnet performance. Many times we have videos of our products picking up various other materials so take a look at the videos in the video galleries. They give you a chance to "kick the tires" and see how the products perform. Many of these videos have been submitted by previous customers. See our Comparison Chart to compare lifting height.
What terrain and in what conditions will you be working in?
The rougher, dirtier terrain your Pickup Truck operates in the stronger the magnet your likely going to want, because the magnet will have to be set higher to avoid constantly hitting the ground. The magnet will also need to pick up debris through some dirt therefore you need a stronger magnet. The rougher the terrain that exists because of things like bumps and pot holes, more you will want or favor a magnet that has some protection built in to the design to either deal with the abuse of hitting the ground or being able to move out of the way when it does hit the ground in order to prevent damage.
The maximum lifting height of the Pickup Truck Magnets;
ISO | 9 inches
Eiger | 9 and 1/4 inches
Yacare | 9 and 3/4 inches
Caiman | 10 and 1/2inches
Aardvark | 12 inches
Piranha | 10 and 1/2 inches
Wrasse 2" x 5" | 4 and 3/4 inches
Wrasse 3" x 3" | 6 inches
Wrasse 4.5" x 4.5" | 8 and 1/2 inches
PYR 3" x 3" | 6 inches
PYR 4.5" x 4.5" | 9 and 1/4 inches
Khamsin | 9 inches
Alpha | 9 inches
Mammoth | 16 inches
For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”
| Product | Max Lift Height | Weight | Widths | Height Adj. | Wheel Type | Clean-off Method | Terrain Surface | Pricing | Purchase |
|---|---|---|---|---|---|---|---|---|---|
| ISO |
9" | 210 lbs, 251 lbs, 292 lbs, 332 lbs | 62", 74", 86", 98" | Continuously adjustable. | 5” Dynatread Thermoplastic Rubber wheels with polypropylene hubs and 5/8 inch ball bearings rated at 300 lbs capacity each. | Comes standard with a Quick Clean Off Sleeve | All Terrain | $1,999.99 USD – $2,299.99 USDSelect options |
|
| Eiger |
9.25" | 124lbs, 158lbs, 192lbs, 226lbs, 259lbs, 292lbs | 38", 50", 62", 74", 86", 98" | Yes – by changing mounting height. | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 100kg (220 lbs) capacity each | Quick Clean Off Sleeve comes standard. | All Terrain | $799.99 USD – $1,999.99 USDSelect options |
|
|
Yacare |
9 3/4" | 511.4 lbs | 72" | 2" to 6" Continuous Adjustment | 13" x 6.5" flat proof, ball bearing tires | Spring Assisted Dual Debris Release Handles | All Terrain | $6,499.99 USDSelect options |
|
|
Caiman |
10 1/2" | 884 lbs | 82" | 2" to 6" Continuous Adjustment | 16.5" x 6.5" flat proof, hub and spindle wheels | Spring Assisted Dual Debris Release Handles | All Terrain | $9,899.99 USDSelect options |
|
|
Aardvark |
12" | 1056 lbs | 96" | 1.5" to 6" Continuous Adjustment | 16.5" x 6.5" flat proof, hub and spindle wheels | Automatic | All Terrain | $11,999.99 USDSelect options |
|
|
Piranha |
10 1/2" | P96 = 678 lbs, P120 = 832 lbs | P96 = 72" sweeping width, P120 = 96" sweeping width | 2 to 3″ clearance with sweepers down, 6.5” clearance when traveling with sweepers up and not in use. | 20.5" x 8.5" - 5 bolt wheels | Slingjaw clean off system. Magnetic housing rotates up side down, debris falls into debris holding trays. | Flat Surfaces | $7,299.99 USD – $7,699.99 USDSelect options |
|
|
Wrasse 2"x5"
|
4 3/4" | 24lbs, 35lbs, 47lbs, 58lbs, 70lbs, 81lbs, 93lbs | 26", 38", 50", 62", 74", 86", 98" | Change suspension height by rising or lowering the chains to a maximum height of 3". | None | Wipe clean with glove or rag. | Flat Surfaces | $399.99 USDAdd to cart -$759.99 USDAdd to cart |
|
|
Wrasse 3"x3"
|
6" | 28lbs, 40lbs, 53lbs 65lbs, 77lbs, 89lbs,102lbs | 26", 38", 50", 62", 74", 86", 98" | Change suspension height by rising or lowering the chains to a maximum height of 4". | None | Wipe clean with glove or rag. Also available with a Quick Clean Off Sleeve accessory. | Flat Surfaces | $439.99 USDAdd to cart -$859.99 USDAdd to cart |
|
|
Wrasse 4.5"x4.5"
|
8 1/2" | 65lbs, 93lbs, 120lbs, 148lbs, 175lbs, 203lbs, 230lbs | 26", 38", 50", 62", 74", 86", 98" | Change suspension height by rising or lowering the chains to a maximum height of 5". | None | Wipe clean with glove or rag. Also available with a Quick Clean Off Sleeve accessory. | Flat Surfaces | $569.99 USDAdd to cart -$1,229.99 USDAdd to cart |
|
| Pyr 3"x3" |
6" | 42 lbs, 54 lbs, 66 lbs, 79 lbs, 91 lbs, 103 lbs | 38", 50", 62", 74", 86", 98" | Change suspension height by raising or lowering the hanging chains to a maximum of 4". | 7" diamond tread lawnmower wheel with steel hub and 1/2 inch ball bearings | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve accessory also available.. | Flat Surfaces | $764.99 USDAdd to cart -$1,114.99 USDAdd to cart |
|
 Pyr 4.5"x4.5" |
9 1/4" | 126 lbs, 160 lbs, 193 lbs, 227 lbs, 260 lbs, 293 lbs | 38", 50", 62", 74", 86", 98" | Change suspension height by raising or lowering the hanging chains to a maximum of 5". | 5" Dynatread Thermoplastic Rubber Wheels with Polypropylene Hubs and 5/8 inch ball bearings rated at 300 lbs capacity each | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve accessory also available. | Flat Surfaces | $1,239.99 USDAdd to cart -$1,959.99 USDAdd to cart |
|
| Khamsin |
9" | 191 lbs, 225 lbs, 258 lbs, 291 lbs | 62", 74", 86", 98" | Yes, minimum 2.5" with wheel on the ground, 3" recommended, 5" inch maximum | 10” x 3” Foam Filled flat proof bump wheels with steel hubs and 5/8” ball bearings rated at 100 kg (220 lbs) capacity each | Comes standard with a Quick Clean Off Sleeve | All Terrain | $2,099.99 USD – $2,549.99 USDSelect options |
|
| Alpha |
9" | 328 lbs, 361 lbs | 86”, 98” | Yes , 2 ½” minimum, recommended from 3” to 5” maximum, remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position. | 10" x 3" foam filled flat proof wheels with 5/8" ball bearings, each with a 100 kg (220 lb) rating | Quick Clean Off Sleeve | All Terrain | $4,389.99 USD – $4,539.99 USDSelect options |
|
|
Mammoth |
16" | 3500 lbs | 68" | 2”-7” Using On-board Hydraulics and Adjustable Height Stops | 10 ply (3520lbs each) rated highway trailemr tires | Hydraulic | All Terrain | $40,375.00 USDSelect options |
Why Use a Pickup Truck Magnet?
Magnets easily attach to a pickup truck.
Sometimes a pickup truck is the only vehicle available to use for magnetic sweeper. But pickup trucks are versatile and magnetic sweepers can easily be attached to them because they have a high load capacity for towing and front mounts.
If it is the only vehicle available and a serious debris problem exists, this can mean that you have to use a front mount magnet to protect the tires from flats. Pickup trucks are also great for towing larger magnets to clean large areas regularly to keep them free from debris.
