Mining Facility
Magnetic Sweepers

Power & Durability in an 82 inch width. With Spring Assisted Dual Release Handles!

$9,899.99 USDBuy Now

(all prices in USD)



Available in 1 sweeper width: Caiman 82″

The Caiman magnetic sweeper uses a Debris Release Lever Spring Assisted Clean Off System to clean off the magnets. Clean off takes only seconds.



To clean off the Caiman when it is full of metal debris, just pull down on the spring assisted clean off handle for each magnet.



The Caiman has solid pick up performance in off road conditions provided by the "wrap around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory.

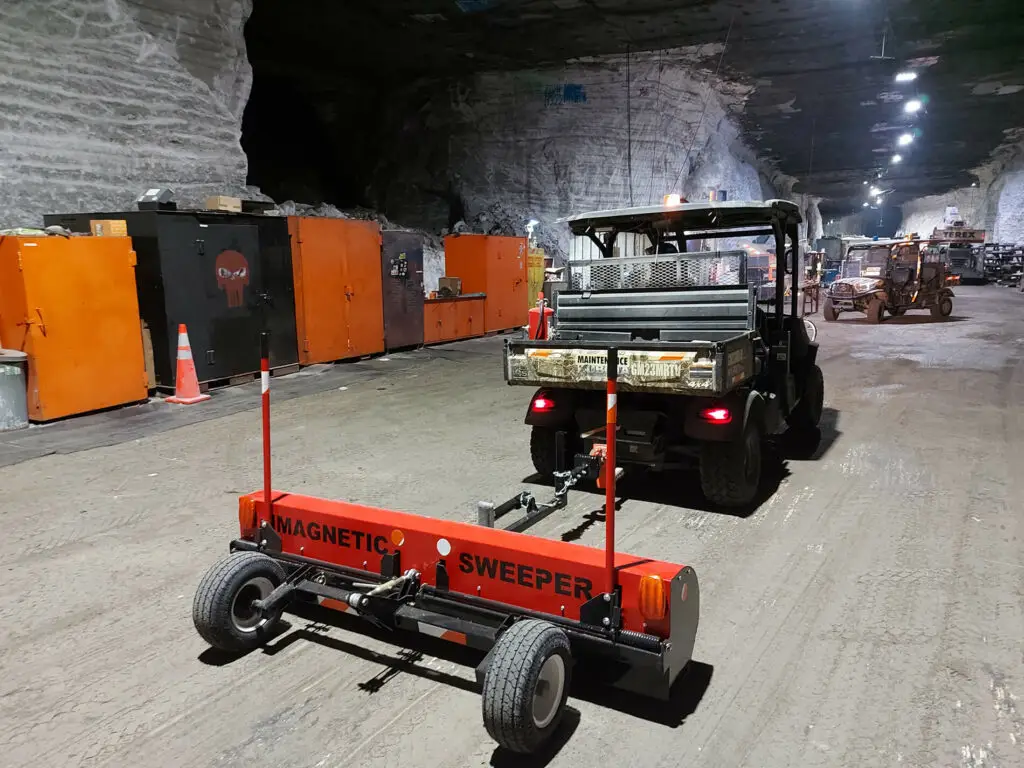

The Caiman is smaller and lighter than the Aardvark and is a good choice for towing behind UTVs or smaller vehicles.



Check out the Caiman CAD drawings for details.



Get prices, specs, photos, videos, reviews and more...



Fully Enclosed Automatic Magnetic Sweeper for Mining Sites. Clean debris off with a push of the button!

$11,999.99 USDBuy Now

(all prices in USD)



Available in 1 size: Aardvark 96″

The Aardvark magnetic sweeper has a fully enclosed magnet which means you don’t have to worry about metal getting all over the magnet. It's also easy to clean off with a push of the button!



Designed with Push button automatic clean off an eight foot wide almost 600lb magnet with an ability to pick up a nail from twelve inches, the Aardvark is formidable.



The Aardvark is designed for some severe off road industrial type conditions experienced by mining sites and can be easily towed behind trucks, utility vehicles or mining equipment to sweep mining roads.



Inset wheels, flat proof tires, safety flags, large “MAGNETIC SWEEPER” signage, continuously adjustable sweeping height, adjustable hitch height, skid plate and bash bar, wrap around feature and optional debris digging rake round out the Aardvark’s off road readiness features.



Get prices, specs, photos, videos, reviews and more...



Remote controlled height adjustment without leaving the cab of your vehicle!

$4,389.99 USD$4,539.99 USDBuy Now

(all prices in USD)



Available in 2 sizes:  ALPHA 86”, ALPHA 98”

With outdoor rated IP65 12-volt DC actuators rated at 562 lbs each and 7.5” inches of up and down movement for remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position.



The ALPHA is the same as the AETHER magnetic sweeper but with the addition of the remote-controlled electric actuators for up and down movement.



Like the AETHER the ALPHA was designed for those off-road dirt and gravel situations where more ground strike prevention is needed.



The 10” x 3” flat proof bump wheels on the ends prevent the magnet from hitting the ground and from sinking into loose surfaces, and the wheeled outriggers provide additional ground strike prevention in the middle of the magnet’s overall length.



Maximum lifting height of 9” inches (using a 2 ½ inch nail). See Gauss strength measurements at various sweeping height distances also available.



Comes standard with a black PVC Quick Clean Off Sleeve for quick and easy debris removal.



Get prices, specs, photos, videos, reviews and more...



Hydraulically Controlled Magnetic Cleaning! With Yard Grooming Debris Digging Rake

$19,999.99 USDBuy Now

(all prices in USD)



Available in 1 size: Ocicat 76″

The Ocicat is a front mounted magnetic sweeper that attaches to any skidsteer or track loader with a universal adapter plate and standard auxiliary hydraulic hose fittings. The Ocicat has a powerful C8 magnet that can pick up a 2.5” nail from 13” off the ground and drop it into a scrap metal bin without having to touch the nail using the hydraulic clean-off system.



Low maintenance design and 4 easy tie-down points make the Ocicat ideal for transport between sites where the magnet is needed for collecting metal debris in rough conditions.



Included debris digging rake digs and loosens embedded debris so the magnet can pick it up and also grooms gravel and hard packed areas at the same time.



Low profile design provides high visibility from operator cab.



Heavy Duty Construction with wrap around design to prevent collected debris from being wiped off the bottom before it can be disposed of.



Available in one 76” inch magnet sweeping width. See CAD Drawings for details.



Get prices, specs, photos, videos, reviews and more...



Remote – Controlled Clean off & Height Adjustment!

$40,375.00 USDBuy Now

(all prices in USD)



Available in 1 size: Mammoth 68″

Built to Retrieve Ball Milling Steel Abrasive Material



The Mammoth magnetic sweeper is built to clear big spaces quickly, the powerful 12” x 12” x 68” alternating pole C8 magnetic assembly can hold huge amounts of metallic debris before needing to be cleaned off and can pick up a 2.5” nail from 16” off the ground. The Mammoth can retrieve the even the most elusive debris types including the nickel/steel balls used in material processing from within its 2” – 7” sweeping range.



Height adjustment and clean off is just as heavy duty as the magnetic power, these functions can be controlled from the tow vehicle using a wireless remote that activates the 12v 3000psi hydraulic system that controls magnet position and trailer height.



Comes standard with lights & fenders, on-board battery charger, and pintle ring hitch. Debris digging rake and grader attachments are optional accessories that extend the function of the Mammoth to grooming roads and industrial yards with gravel or packed surfaces.



Check out the Product Demo Videos to see the Mammoth in action in different applications.



Get prices, specs, photos, videos, reviews and more...



Quick Tips

Shipping Costs & Methods

Shipping Options

Shipping options and charges available at checkout.

Real-Time Shipping Rates

Shipping rates are calculated by connecting directly to shipping carriers, giving you real time shipping quotes when you order online.

International Shipping

Some international orders outside North America may require a freight quote on checkout before the order can be completed.

Payment Methods

Full line of magnetic sweeper products. All items in stock. Shop Online and Pay by Visa, Visa Debit, Mastercard, American Express, Discover, Diners Club, JCB, PayPal or Pay by Cheque or EFT / Wire Transfer.



card-visacard-mastercard card-amex card-discover card-dinersclub card-jcb Debit Visa
PayPal

Know what you need for your next project?

The maximum lifting height of the Mining Site Magnets;

Caiman | 10 and 1/2 inches
Aardvark | 12 inches
Alpha | 9 inches
Ocicat | 13 inches
Mammoth | 16 inches

For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”

Product Max Lift Height Weight Widths Height Adj. Wheel Type Clean-off Method Terrain Surface Pricing Purchase
CaimanCaiman 10 1/2" 884 lbs 82" 2" to 6" Continuous Adjustment 16.5" x 6.5" flat proof, hub and spindle wheels Spring Assisted Dual Debris Release Handles All Terrain

$9,899.99 USDBuy Now

AardvarkAardvark 12" 1056 lbs 96" 1.5" to 6" Continuous Adjustment 16.5" x 6.5" flat proof, hub and spindle wheels Automatic All Terrain

$11,999.99 USDBuy Now

AlphaAlpha 9" 328 lbs, 361 lbs 86”, 98” Yes , 2 ½” minimum, recommended from 3” to 5” maximum, remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position. 10" x 3" foam filled flat proof wheels with 5/8" ball bearings, each with a 100 kg (220 lb) rating Quick Clean Off Sleeve All Terrain

$4,389.99 USD$4,539.99 USDBuy Now

OcicatOcicat 13" 1652 lbs 76" Continuous, using lift arms None Hydraulic debris release using auxiliary hydraulics All Terrain

$19,999.99 USDBuy Now

MammothMammoth 16" 3500 lbs 68" 2”-7” Using On-board Hydraulics and Adjustable Height Stops 10 ply (3520lbs each) rated highway trailemr tires Hydraulic All Terrain

$40,375.00 USDBuy Now

Reduce mining facility maintenance costs and disruptions caused by flat tires.

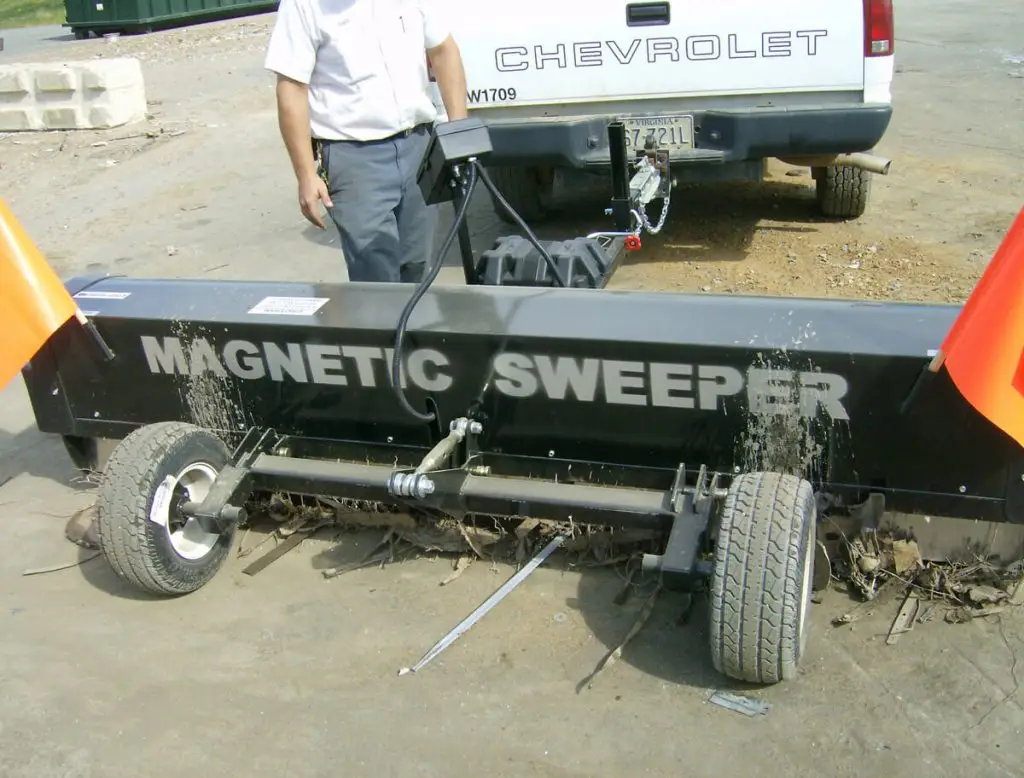

PWC-landfill-magnetic-sweeper-bluestreak-equipment21

The price of flat tires...

Tire costs are a large expense for mining operations, and keeping yards and haul roads clean can greatly reduce the root cause of excessive tire costs which is damage causing debris. Reducing the amount of damage causing debris can reduce overall tire expenses.



Tire damage and flats can be excessive because the number of pieces of equipment with tires is high in mining operations and there is also a fairly high debris problem from the amount of mechanization.



Reducing metal debris problems reduces not only tire damage and repair costs but it also reduces the associated operational downtime, schedule disruptions and possibility or risk of human injury from the incident or from the repair of the tire. After all repair of tires in a mining environment isn’t as simple as changing the tire on your car.

phu-bia-debris from Magnetic Sweeper from PKO to Muenglong-blueatreak-equipment3

Picking metal debris is a good thing for business..

Mines not only have to be concerned about their roads and yards and their equipment, but they also have to be concerned about trucks entering the sites for supply and distribution purposes.



These vehicles can’t be flat proofed and yet have to access at least a portion of the site.



Mines may have outside areas and yards and long roads that have to be kept clean and the best way to do this is with a large, wide and powerful magnetic sweeper to cover large areas quickly and be able to pickup even the toughest debris.

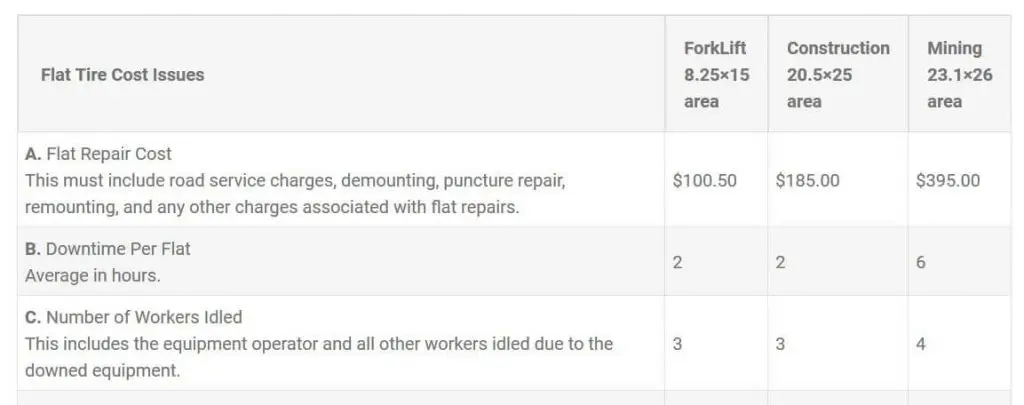

Flat Tire Cost Savings Analysis

Flat Tire Cost Savings Analysis

For a details flat tire cost savings analysis and payback period.
