The Wrasse hanging magnetic bar is designed for use on “flat terrain”. It is extremely versatile because it comes in many different sizes, in terms of strength and width. The Wrasse hanging magnet bars are available in widths from 26” – 98” inches and in 3 different magnet housing sizes: 2” x 5” inches, 3” x 3” inches, and 4.5” x 4.5” inches each level of housing size offers more magnetic strength than the previous.
The Wrasse can hang from almost any piece of equipment if the ground the vehicle traverses is fairly even so that the magnet bar doesn’t hit the ground all the time which can cause damage to the housing. The Wrasse hanging magnet bar functions very well at allowing the equipment operators to clean environments while they do their normal tasks.
There are also optional Quick Clean Off Sleeves available for the Wrasse. A PVC Quick Clean Off Sleeve is available for the 3″x 3″ inch and 4.5″ x 4.5″ inch models which makes cleaning debris off the magnet bar easy. A Heavy-Duty Aluminum Quick Clean Off Sleeve is available for some 4.5” x 4.5” inch sweeping widths, this sleeve also assists in cleaning debris from the magnet and increases the durability of the sweeper.
Available in 3 magnet housing sizes: Wrasse 2″x5″, Wrasse 3″x 3″, Wrasse 4.5″ x 4.5″
Available in 7 sweeping widths: 26″, 38″, 50″, 62″, 74″, 86″, 98″
Get prices, specs, photos, videos, reviews and more…
The PYR hanging magnet was designed for flat terrain and “on road” type uses where not much ground strike prevention is needed. “On road” type bump wheels are provided on the ends to eliminate magnet strikes due to occasional potholes and speed bump type obstacles.
Choose from 2 different models with different magnet strengths, and 6 different magnet lengths from 3 to 8 feet, to get the perfect setup for your application.
Maximum lifting height of 6” inches (using a 2 ½ inch nail) for the PYR 3”x3” model, and 9 ¼” inches for the PYR 4.5”x4.5” model. Measuring Magnetic Sweeper pickup power and performance.
Also includes 4 stabilizing chains with 8 quick clips to hang the PYR from your vehicle.
Standard debris clean off method is to wipe the magnet clean with a glove or rag. However a black PVC Quick Clean Off Sleeve accessory may be purchased separately for quick and easy debris removal.
Available in 6 sizes: 38”, 50”, 62”, 74”, 86”, 98”
Get prices, specs, photos, videos, reviews and more…
With 10” inch x 3” inch wide flat proof Bumper wheels. The EIGER was designed for those slightly more off-road surfaces with more uneven surfaces such as dirt and gravel where potholes and bumps exist.
Designed with wide wheels to stay on top of those surfaces, and also designed with a greater minimum sweeping height of 2.5”inches to prevent the sweeper from hitting the ground.
Comes standard with black PVC Quick Clean Off Sleeve for easy debris removal, and 4 hanging chains with 8 quick clips to hang the EIGER from your vehicle.
Available in 6 sweeping widths: 38″, 50″, 62″, 74″, 86″, 98″
Get prices, specs, photos, videos, reviews and more…
The ISO magnetic sweeper is a hanging magnet design specifically designed for highway maintenance operations.
The ISO design allows you to leave the magnet permanently mounted, enabling you to lower and deploy the magnet for use when needed, and then easily raise and secure it when not needed or for transport between locations.
High end “bumper wheels” keep the magnet off the ground and multiple mounting points keep this magnet where it should be.
A Quick Clean Off Sleeve makes cleaning debris off the magnet easy!
Available in 4 sweeper widths: ISO 62″, ISO 74″, ISO 86″, ISO 98″
Get prices, specs, photos, videos, reviews and more…
The KHAMSIN hanging magnet was designed for more “off road” applications such as gravel, sand, and dirt roads and yards, or grass covered areas. Ideal for rural roads or gravel roadsides. Ideal for gravel parking lots and driveways.
The KHAMSIN design allows you to leave the magnet permanently mounted, enabling you to lower and deploy the magnet for use when needed, and then easily raise and secure it when not needed or for transport between locations.
Larger 10” x 3” flat proof bump wheels keep the magnet from hitting the ground or sinking into softer ground surfaces.
The KHAMSIN has a slightly higher minimum sweeping height of 2.5” inches compared to the ISO’s minimum sweeping height of 1.75” inches, in order to operate more effectively in off road applications.
A Quick Clean Of Sleeve comes standard for quick and easy debris removal.
Available in 4 sizes: 62”, 74”, 86”, 98”
Get prices, specs, photos, videos, reviews and more…
The AETHER hanging magnet was designed for those off road dirt and gravel situations where more ground strike prevention is needed than the EIGER provides, but less ground strike prevention than the REMORAS provides.
The 10” x 3” flat proof bump wheels on the ends prevent the magnet from hitting the ground and from sinking into loose surfaces, and the wheeled outriggers provide additional ground strike prevention in the middle of the magnet’s overall length.
Maximum lifting height of 9” inches (using a 2 ½ inch nail). Measuring Magnetic Sweeper pickup power and performance.
Comes standard with a black PVC Quick Clean Off Sleeve for quick and easy debris removal. Also includes 6 stabilizing chains with 12 quick clips to the AETHER from your vehicle.
Available in 4 sizes: AETHER 62”, AETHER 74”, AETHER 86”, AETHER 98”
Get prices, specs, photos, videos, reviews and more…
With outdoor rated IP65 12-volt DC actuators rated at 562 lbs each and 7.5” inches of up and down movement for remote controlled raising and lowering of magnet from raised travelling to lowered sweeping position.
The ALPHA is the same as the AETHER magnetic sweeper but with the addition of the remote-controlled electric actuators for up and down movement.
Like the AETHER the ALPHA was designed for those off-road dirt and gravel situations where more ground strike prevention is needed.
The 10” x 3” flat proof bump wheels on the ends prevent the magnet from hitting the ground and from sinking into loose surfaces, and the wheeled outriggers provide additional ground strike prevention in the middle of the magnet’s overall length.
Maximum lifting height of 9” inches (using a 2 ½ inch nail).See Gauss strength measurements at various sweeping height distances also available.
Comes standard with a black PVC Quick Clean Off Sleeve for quick and easy debris removal.
Available in 2 sizes: ALPHA 86”, ALPHA 98”
Get prices, specs, photos, videos, reviews and more…
The Remoras magnet is an “all terrain” hanging magnet that you can attach to equipment you already use and own. This magnet is specifically designed to withstand frequent ground hits while picking up metal debris from uneven and rough surfaces with potholes and ruts.
Normal hanging magnetic sweepers like the Wrasse series can’t stand up to the pounding of hitting the ground over and over as the equipment wheels go into ruts and potholes, but the Remoras series can withstand frequent ground hits with no damage to the magnet housing itself. A protective cage protects the magnetic housing from hitting the ground when your vehicle travels over uneven, rough terrain.
Magnets of this type are very useful if there are severe ruts in industrial yards caused by constant use over the same path by heavy vehicles.
Available in 6 sizes: Remoras 38″, Remoras 50″, Remoras 62″, Remoras 74″, Remoras 86″, Remoras 98″
Get prices, specs, photos, videos, reviews and more…
The Nyx Heavy Duty Hanging Magnetic Sweeper is built to endure heavy duty terrain while clearing metal debris. An Aluminum quick clean off sleeve protects the magnet housing from impacts and crush forces and allows debris to be removed from the magnetic field quickly and easily.
The Nyx also features 10.5” x 3.25” inch Carlisle flat free wheels with UHMW bushings replacing standard ball bearings for greater impact resistance and smooth operation. These wheels will touch down on terrain changes before the clean off sleeve so the Nyx can glide over obstacles rather than strike the ground.
A 4.5” x 4.5” inch permanently charged C8 magnet housing allows the Nyx to pull a 2.5” inch 8 penny nail from up to 8.25” inches off the ground. So, in the 3”-5” inch recommended sweeping height range the Nyx has plenty of pick up power to retrieve metal debris regardless of terrain requirements. The Nyx attaches easily to many different vehicles using the included chains; making it a versatile and durable tool for clearing debris in rough environments.
Available in 4 sizes: NYX 62”, NYX 74”, NYX 86”, NYX 98”
Get prices, specs, photos, videos, reviews and more…
The Erebus Heavy Duty Offroad Hanging Magnet is built to clean metal from the toughest job sites, the onboard out-riggers and aluminum sleeve protect the magnet housing from ground strikes and scrapes. The Erebus also has 10.5 “ x 3.25” Carlisle flat free bump wheels that allow the magnet to roll over changing terrain rather than hit the aluminum clean off sleeve off the ground. The wheel bearings have been replaced with custom 5/8” UHMW bushings that can withstand greater impacts and roll smoothly.
From recycling centers to highway maintenance, the Erebus is a heavy duty durable magnet with exceptional pickup power. It can pick up a 2.5” 8 penny nail from 8.25” off the ground, so in the recommended sweeping height range of 3-5” there is plenty of power available to collect metal debris. The aluminum clean off sleeve resists crush forces that normally make clean off sleeves difficult to remove and slides easily on PVC rails inside the aluminum sleeve that prevent friction.
The Erebus can be easily mounted on a Bluestreak Equipment hanging bracket or by using the included chains with quick links. A hanging magnet mounts easily on a variety of vehicles and is a versatile tool for keeping job sites clean and safe for personnel and equipment.
Available in 4 sizes: Erebus 62”, 74”, 86”, 98”
Get prices, specs, photos, videos, reviews and more…
The Ananke is a hanging magnet that is loaded with convenience and durability features designed to operate in harsh environments like mines, highways and in military road clearing settings and increase productivity of any grader with rear auxiliary hydraulics. The Ananke can even pick up nails from outside of the grader’s blade width if used with the optional side shift bracket.
C8 magnets allow the Ananke to retrieve 2.5” inch 8 penny nails from up to 10.75” inches, so when used in the recommended 3” inch – 5” inch operating range it can collect any type of metal debris even at speed. When it’s time to clean the magnet, the operator can perform clean-off from the cab of the grader using hydraulic power. If using the side shift bracket you can switch between clean-off and side shift by using the included remote control.
Reduce punctures and increase uptime on all equipment using your roads by having a magnet that works while you do to ensure a safe environment to travel and work.
Available in 1 size: 95″
Get prices, specs, photos, videos, reviews and more…
An economical choice for a magnet that can pick up from greater heights.
The GOBIE hanging magnet was designed to be strong yet economical.
The two 4.5”x4.5” housings placed side by side create a magnet that can “reach” further downward, able to pickup debris from greater heights.
Maximum lifting height of 11” inches (using a 2 ½ inch nail). Gauss measurements are also provided at different distances for this magnet. Measuring Magnetic Sweeper pickup power and performance
The GOBIE can hang from almost any piece of equipment as long as it doesn’t hit the ground all the time.
Comes in 15 different sizes (widths) from 14” inches to 98” inches, in 6” inch increments.
Includes 4 hanging chains with 8 quick clips to hang the GOBIE.
Available in 15 widths: 14″, 20″, 26″ 32″, 38″, 44″, 50″, 56″, 62″, 68″, 74″, 80″, 86″, 92″, 98″
Get prices, specs, photos, videos, reviews and more…
Build the width you need by attaching them together with easy pin together design.

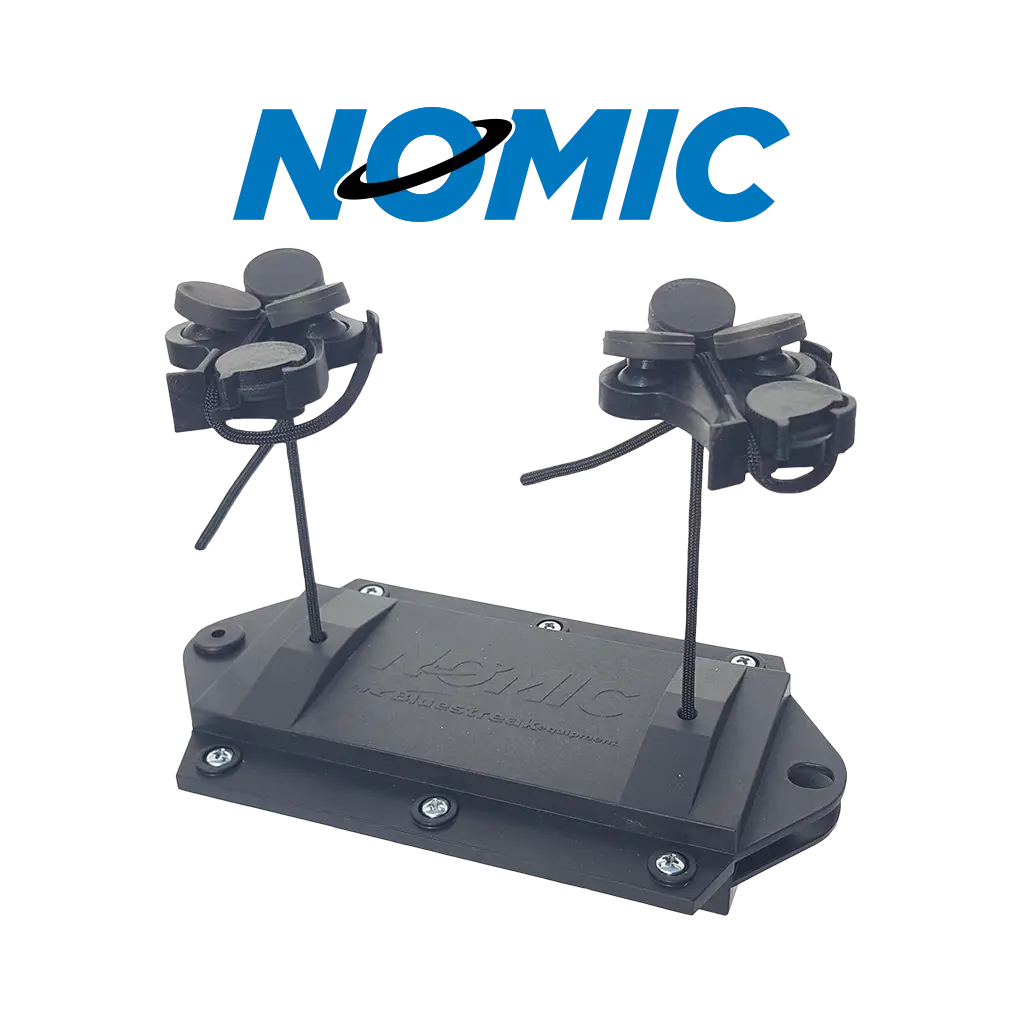

Designed to be completely concealed under your forklift where it cannot get damaged. The NOMIC easily mounts to the underside of your forklift with rare earth magnet tripods designed to swivel to attach to any metal curved or flat surface.
6 round rare earth pot magnets (3 per tripod), each with 13 lbs of holding force (that’s 78 lbs of total holding force!) are used to hang the 3.5 lb NOMIC to any steel under surface including curved surfaces such as the counterweight on the rear of a forklift.
Easily pin together multiple NOMIC sections to make a magnetic sweeper as large or small as needed making it one of the most versatile magnetic sweepers on the market.
Allows 35 degrees of arc curvature so that multiple NOMIC units can form an arc to match the rear shape of your forklift.
Durable Nylon Construction for severe abrasion resistance and long useful life.
Although small, the NOMIC is not lacking in pickup power. Made with a permanently charged C8 magnet the NOMIC will pick up a 2 ½” nail from 3 ½” off the ground.
Easy height adjustability (with self tightening cord cleat)
Available in 1 size: NOMIC 6”
Get prices, specs, photos, videos, reviews and more…
The Vigilant Forklift Magnetic Sweeper mounts to the bottom of any forklift in minutes and is an easy way to continuously clean metal debris up while the forklift performs its daily tasks. The Vigilant mounts to any flat steel surface using the quad pod or 12 pod magnet mounting system with up to 415lbs of holding force. It comes with a quick clean off sleeve that allows for the collected debris to be removed easily from the magnet without having to bend over or scrape anything from the magnet. The Vigilant comes in either a 36” or 42” sweeping width which is suitable for most indoor / outdoor forklifts, mounting the magnet in the middle of the forklift also prevents damage since it is tucked away under the forklift and doesn’t extend outside of the wheel width. The Vigilant magnet housing is built out of anodized aluminum and comes with a PVC clean off sleeve that has wrap around function to hang onto metal debris even if the magnet strikes the ground. The Vigilant magnetic sweeper can pick up a 2.5” nail from a height of 3.25” inches, meaning when it is hung at the recommended 1-2” sweeping height there is plenty of magnetic pickup power.
Available in 2 size: VIGILANT 36” and 42”
Get prices, specs, photos, videos, reviews and more…

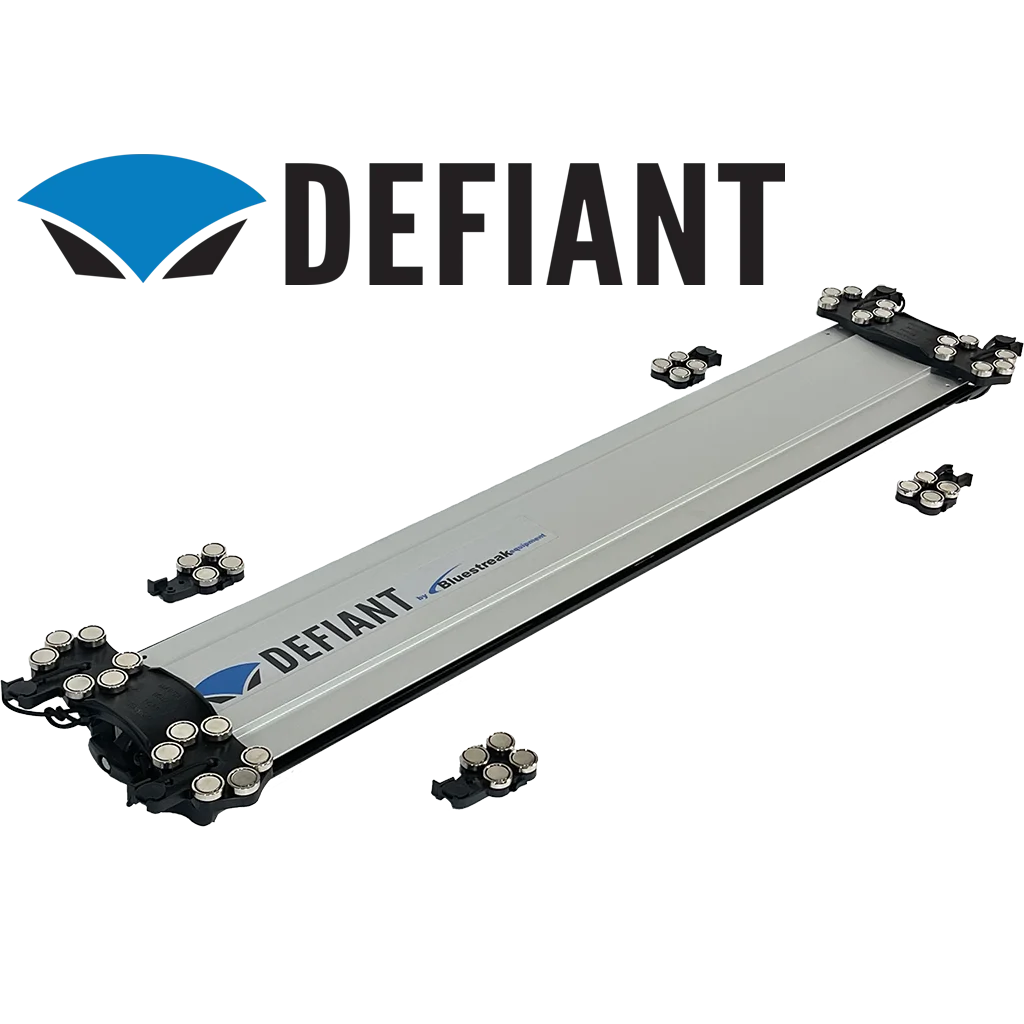

The Defiant Magnet Mounted Hanging Forklift Magnetic Sweeper mounts to any forklift in minutes with no tools and is the easiest way to utilize permanently charged rare earth magnetic power to continuously clean a job site or facility with no additional labour costs.
Forklifts travel through all high-traffic areas frequently, having a magnet that removes any bolts, nails, staples, banding or wire from these areas ensures less down time from damaged tires on equipment, and less chance of personnel injuries.
Able to pick up a 2.5” 8 penny nail from 4”inches there is plenty of pickup power when operating between 1 and 2 inches. The Defiant hangs between the wheels of the forklift and doesn’t extend out the sides so movement is never impeded.
Available in 2 size: DEFIANT 36” and 42”
Get prices, specs, photos, videos, reviews and more…
Only choose the Remoras if you think that a hanging magnet like the Wrasse would hit the ground all the time because of bumps, ruts, potholes, etc. That’s the only reason for selecting the Remoras, because the Remoras magnet is the same magnet as the strongest Wrasse magnet (the 4.5×4.5 series).
Mike – Bluestreak Equipment
The maximum lifting height of the Hanging Magnet Models are as follows;
For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”
When buying a magnetic sweeper bar you are only paying for a big magnet… no wheels, handles, or frame are part of the design or cost. As a result they are simply a great value for what you get, which is essentially just a big magnet.
Once you hang them on a vehicle of any type they work continuously, while you go about your other duties.
When you attach a magnetic sweeper bar to your equipment, you don’t have to spend extra labor time and money just sweeping for metal debris. You can hang them from almost anything, you just have to look at the equipment for the best place to hang them, and in most cases a place can be found to simply attach the magnet using the chains provided, at worst you simply have to make a simple metal bracket to get the optimal positioning.
If you’re wondering about pickup power, Bluestreak measures pickup power in terms of the “maximum lifting height using a two and a half inch nail”.
Everyone knows what a two and a half inch nail looks like. This measure indicates the maximum height that the sweeper can pick up a two and a half inch nail from in a bench test. This is the best indication of performance and pickup power that is easy to understand.
Above are the maximum lifting height measurements of the Hanging Magnet Models.
When choosing a hanging magnet consider the terrain you will be working on because the terrain you will be working on greatly effects the magnets’ performance.
We have designed the Wrasse magnetic bar to work well on flat surfaces and the Remoras magnet to work well in more “all terrain” environments where there might be pot holes or ruts and where the magnet could be frequently hitting the ground.
If you know you will be working mainly on concrete or relatively flat terrain then choose a model within the Wrasse Series that is designed for flat surfaces.
If you are going to be attaching your magnet to vehicles where the terrain is rough and the magnet may hit the ground, then choose a model within the Remoras Series.
Flat Surfaces
A: Asphalt
B: Cement
All Terrain
C: Dirt
D: Grass
E: Broken Concrete
See how to easily mount a hanging magnet to the front bumper or rear hitch of your truck using our optional hanging magnet brackets.
A: Hanging Bracket C
B: 2” Inch Reveiver Mount Bracket
If you have a 2” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of hanging magnet you choose), and the 2” inch Receiver Mount Bracket. These accessories are available for purchase and will be recommended accessories when you checkout.
A: Bumper Mount Bracket A
B: Hanging Bracket B
If you have a flat steel bumper on your commercial truck, you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of a hanging magnet you choose), and Bumper Mount Bracket A.
A: Push until holes line up
B: 2” inch receiver on truck
C: 2.5” inch to 2” inch steel receiver adaptor sleeve
If you have a 2.5” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available hanging brackets with the 2” inch receiver mount bracket and the 2.5” to 2” inch steel receiver adaptor sleeve accessory.
A: Hanging bracket D with easy height adjustment for hanging magnets with outrigger
Hanging Bracket D is compatible with the same magnets as Hanging Bracket C but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
A: Hanging Bracket E attaches to snowplow mount
B: Kubota snowplow mount for hanging bracket works with all Bluestreak hanging brackets
Hanging Bracket E is compatible with the same magnets as Hanging Bracket B (except Wrasse & Gobie) but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
