ISO Magnetic Sweeper

Move it up and down with ease!

Recommended Industry Applications

The ISO hanging magnetic sweeper moves up and down easily.

Super Controlled Hanging Magnet!

The ISO is a hanging magnet designed for mounting under commercial type vehicles such as street sweepers, shunt/yard trucks, larger commercial trucks as well as standard pickup trucks. Once mounted it picks up metal debris that causes flat tires such as nails, screws, wire, discarded pieces of metal from fabrication activities, bolts, nuts, pins, miscellaneous metal pieces, etc.



The ISO is designed with complete stability and control in mind, solving many of the problems associated with hanging magnets.



It comes with 6 stabilizing chains, Dynatread Thermoplastic rubber Bumper Wheels on each end and an easy height adjustment feature that allows complete control over the height of the magnet once it is mounted.



The ISO also comes with a durable Quick Clean Off Sleeve for easy removal of debris.



And to keep the ISO’s long term performance power, the ISO utilizes permanently charged C8 Ceramic Magnets that will never need to be recharged. These magnets provide a strong magnetic field with a maximum lifting height of 9 inches using a 2.5″ nail. Performance power will never decrease, ensuring years of use.

$1,999.99 USD$2,299.99 USDSelect options

See Pricing For All Models Below

ISO

Product Pricing

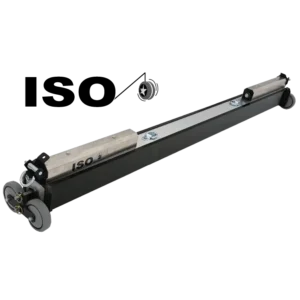

 ISO™ 62 magnetic sweeper

ISO™ 62 magnetic sweeper

$ 1999.99

Shipping

Weight: 226.4 lbs | Length: 72
Width: 12 | Height: 15

SKU:

IS62

 ISO™ 74 magnetic sweeper

ISO™ 74 magnetic sweeper

$ 2099.99

Shipping

Weight: 268.3 lbs | Length: 84
Width: 12 | Height: 15

SKU:

IS74

 ISO™ 86 magnetic sweeper

ISO™ 86 magnetic sweeper

$ 2199.99

Shipping

Weight: 310.2 lbs | Length: 96
Width: 12 | Height: 15

SKU:

IS86

 ISO™ 98 magnetic sweeper

ISO™ 98 magnetic sweeper

$ 2299.99

Shipping

Weight: 351.1 lbs | Length: 108
Width: 12 | Height: 15

SKU:

IS98


* If you want to order more than one you may add or adjust product quantities once you have added the product to your shopping cart.

Specs


ISO Series ISO 62 ISO 74 ISO 86 ISO 98
SKU IS62 IS74 IS86 IS98
Sweeper Width 62″ 74″ 86″ 98″
Cleaning Method Quick Clean Off Sleeve Quick Clean Off Sleeve Quick Clean Off Sleeve Quick Clean Off Sleeve
Sweeping Height Adjustability Yes, continuous adjustment Yes, continuous adjustment Yes, continuous adjustment Yes, continuous adjustment
Magnet Type Ceramic 8 Ceramic 8 Ceramic 8 Ceramic 8
Maximum Lifting Height (using 2.5″, 8 penny nails) 9 inches 9 inches 9 inches 9 inches
Ground Clearance Adjustable, with a minimum of 1.75 inches Adjustable, with a minimum of 1.75 inches Adjustable, with a minimum of 1.75 inches Adjustable, with a minimum of 1.75 inches
Wheels 5” Dynatread Thermoplastic Rubber wheels with polypropylene hubs and 5/8 inch ball bearings rated at 300 lbs capacity each 5” Dynatread Thermoplastic Rubber wheels with polypropylene hubs and 5/8 inch ball bearings rated at 300 lbs capacity each 5” Dynatread Thermoplastic Rubber wheels with polypropylene hubs and 5/8 inch ball bearings rated at 300 lbs capacity each 5” Dynatread Thermoplastic Rubber wheels with polypropylene hubs and 5/8 inch ball bearings rated at 300 lbs capacity each
Accessories Comes standard with 6 stabilizing chains and Quick Clean Off Sleeve Comes standard with 6 stabilizing chains and Quick Clean Off Sleeve Comes standard with 6 stabilizing chains and Quick Clean Off Sleeve Comes standard with 6 stabilizing chains and Quick Clean Off Sleeve
Total Sweeper Weight 210 lbs 251 lbs 292 lbs 332 lbs
Total Shipping Weight 226.41 lbs 268.31 lbs 310.21 lbs 351.12 lbs
Shipping Dimensions 72″L x 12″W x 15″H 84″L x 12″W x 15″H 96″L x 12″W x 15″H 108″L x 12″W x 15″H
Pricing Range $1999.99 $2099.99 $2199.99 $2299.99

CAD Drawings


ISO End View

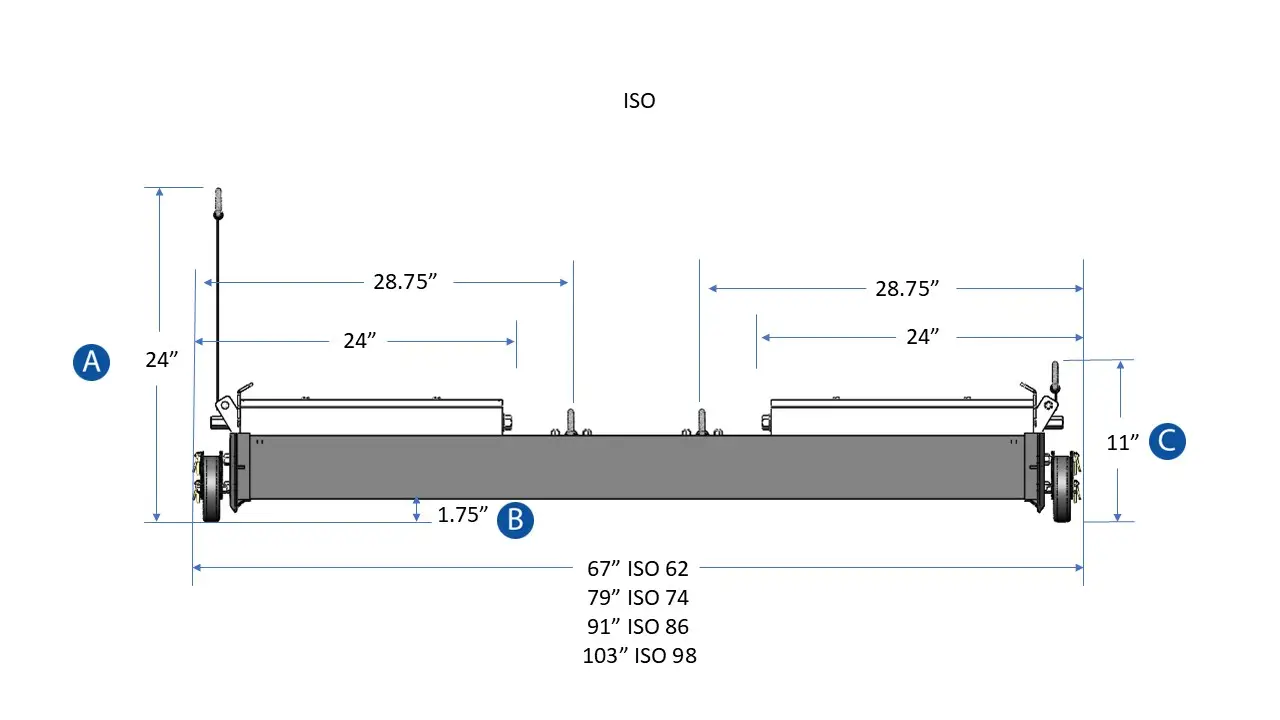

ISO Side View


ISO Dimensions and Material Thickness

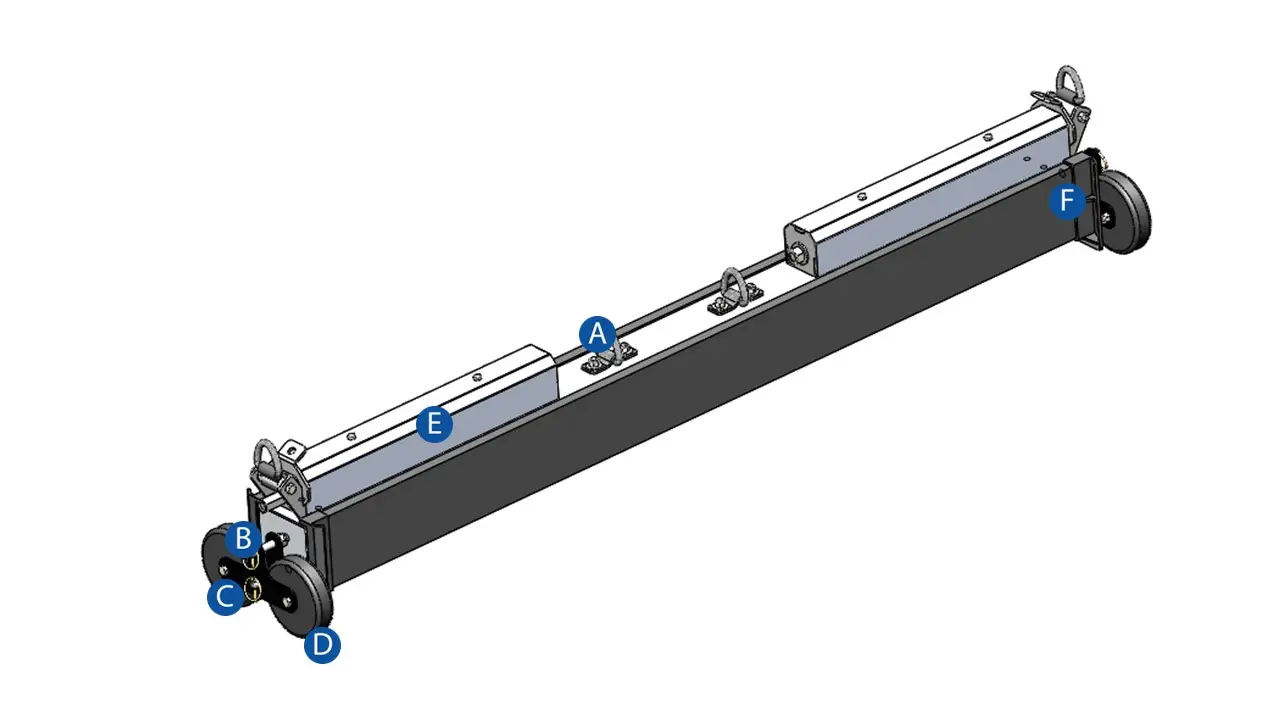

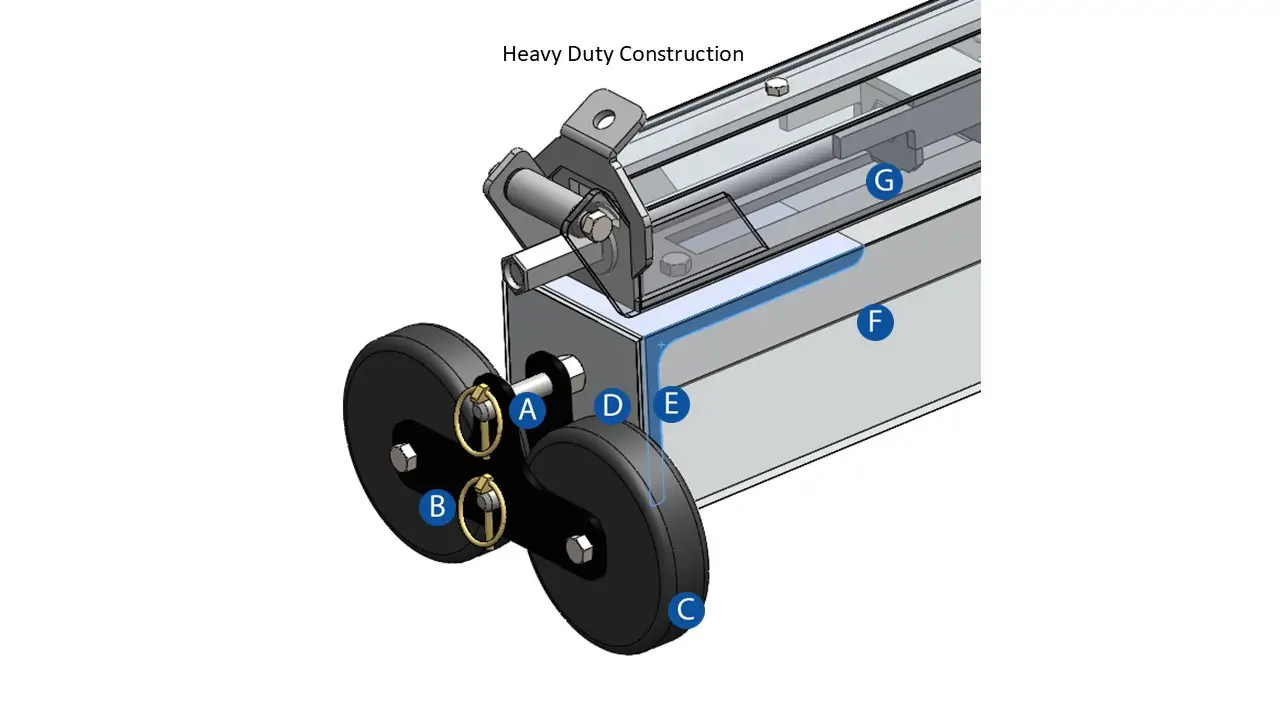

ISO Construction

The ISO uses permanently charged grade C8 magnets that will never need to be recharged. Power will never decrease, ensuring years of consistent use.

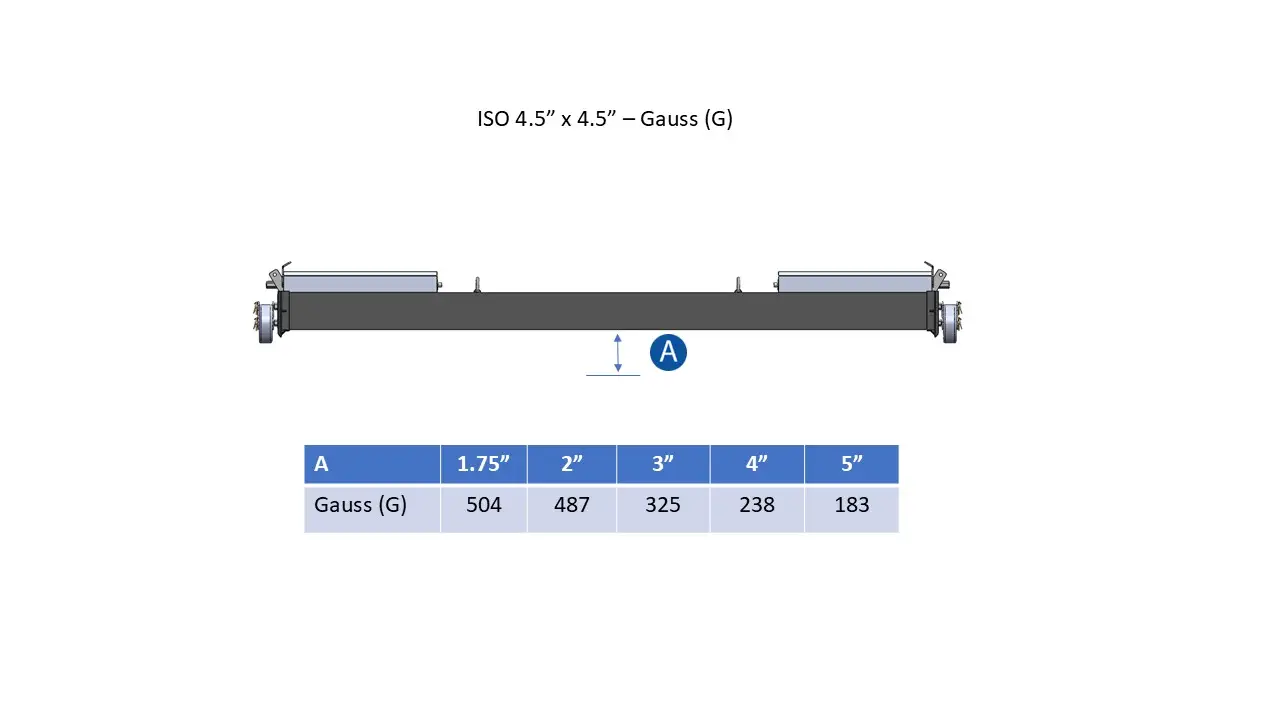

ISO 4.5 x 4.5 Gauss Measurments

Reviews

0 of 0 reviews

Sorry, no reviews match your current selections

Literature


ISO Brochure PDF

1 file(s) | 635.87 KB


ISO Operating Instructions PDF

1 file(s) | 1.75 MB


ISO Assembly Instructions PDF

1 file(s) | 2.4 MB

Parts



Part #1 ISO Axle Lynch Pins (2pcs)

$ 24.77


Part #2 ISO Thermoplastic rubber wheel with polypropylene hub (1pc)

$ 56.89


Part #3 ISO Wheel Brackets w/bolts (2pcs)

$ 85.15


Part #4 ISO Steel End Cap Assembly (1pc)

$ 141.44

Accessories



ISO ISPM-15 Compliant International Packaging Crate

$ 116.9


Quick Clean Off Sleeve

$ 129.99


Hanging Bracket A

$ 659.99


Hanging Bracket B

$ 789.99

Two fully enclosed Actuators make controlling the magnet's height quick and easy.

Super Stable Magnet!

The ISO is designed as a hanging magnet that is super stable. When a hanging magnet is attached to a vehicle there can be a lot of movement and swing to the magnet when the vehicle is in motion making the magnet ineffective.

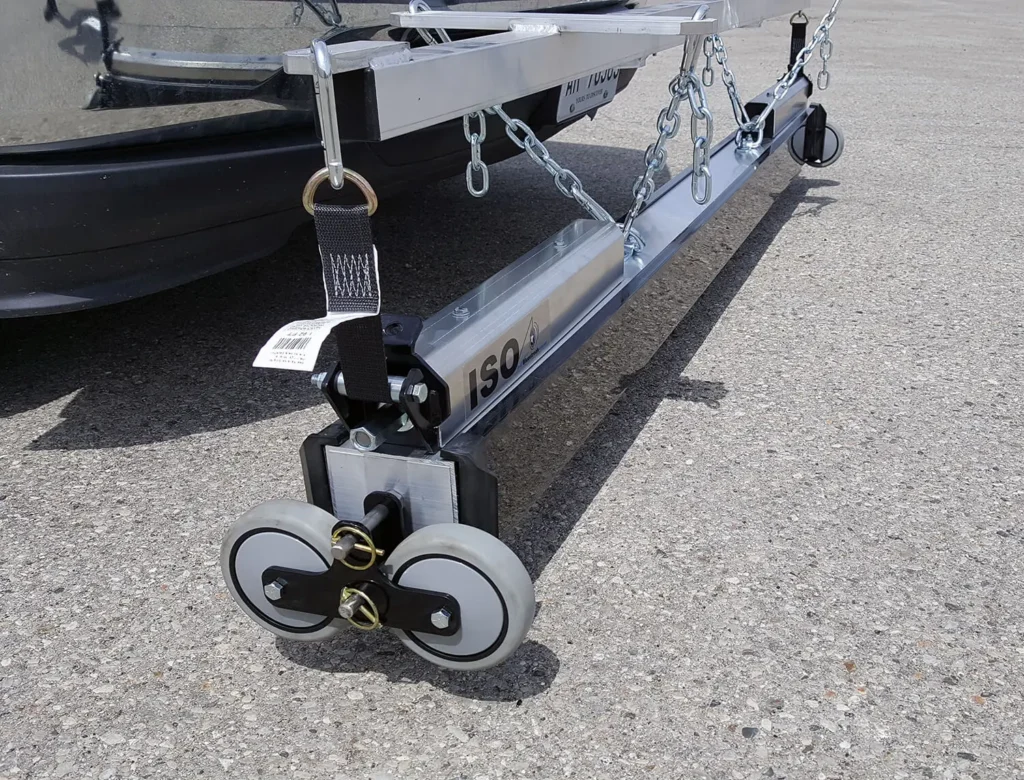

Bump Wheels stabilize the sweeper and prevent the magnet from hitting the ground. They also allow low sweeping heights.

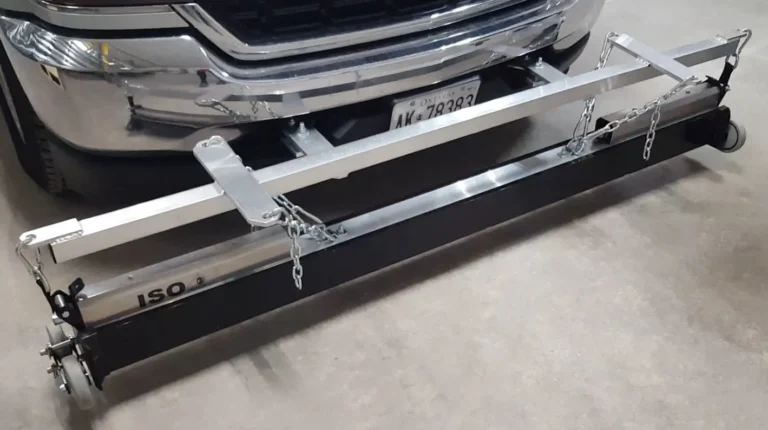

ISO magnet sweeper overview
Stabilizing chains secure the magnet so there is very little swing and make it very very stable.

The unique ISO design eliminates this problem.



The ISO is designed to use 6 stabilizing chains to create a very stable magnet.



The ISO is also designed with heavy duty Bump Wheels on each end of the magnet. The Bump Wheels add further stability preventing the magnet from hitting the ground. The Bump Wheels are designed to hang slightly above ground, but protect the magnet from hitting the ground when the truck suspension compresses, or if there are bumps in the road.



The Bump Wheels also allow hanging the magnet lower for better performance than would be possible without Bump Wheels. They ensure a consistent height off the ground is maintained when sweeping.



The Bump Wheels are 5” Thermoplastic rubber wheels with polypropylene hubs that have a 300 lb capacity (each).

Easy, Convenient, Durable, Quick Clean Off Sleeve

When mounting a hanging magnet under a vehicle the magnetic sweeper needs to be easy to clean off.



To clean off the ISO magnetic sweeper when full of debris, just remove the Bump Wheel bracket on one end, slide the wheels off and pull off the Quick Clean Off Sleeve.  All of the debris will drop off on the side of the magnet that you pull the Sleeve off.  Clean off is easy, convenient and simple.

Play Video

For The Perfect Fit
The ISO is available in 4 different sizes!

The ISO comes in 4 different sweeper widths of 62″, 74″, 86″ and 98″ to accommodate many different vehicle sizes and uses. The ISO can be front, mid or rear mounted on a variety of vehicles as long as enough clearance and space is present.



As a hanging magnet, the ISO has no specific requirements of the vehicle to ensure FIT.  You should however, take a look at the CAD files showing overall dimensions of width and minimum retracted and maximum extended dimensions to ensure this magnet will work with your intended vehicle and the anticipated mounting position.



The ISO has a minimum retracted dimension of 11 inches (when raised) and maximum extended dimension of 24 inches (when lowered).  The depth of the magnet from front to back (front wheel tip to back wheel tip is 10.125 inches.)



To accommodate mounting of the ISO to a vehicle it may be necessary for the purchaser to buy one of the available hanging bracket accessories.  As an alternative, the purchaser can themselves design and build a suspension frame with mounting points specific to those available on the vehicle being used as well as the suggested mounting points to the ISO.  Guidance on the design of such as frame is provided in the ISO Assembly and Installation Instructions.

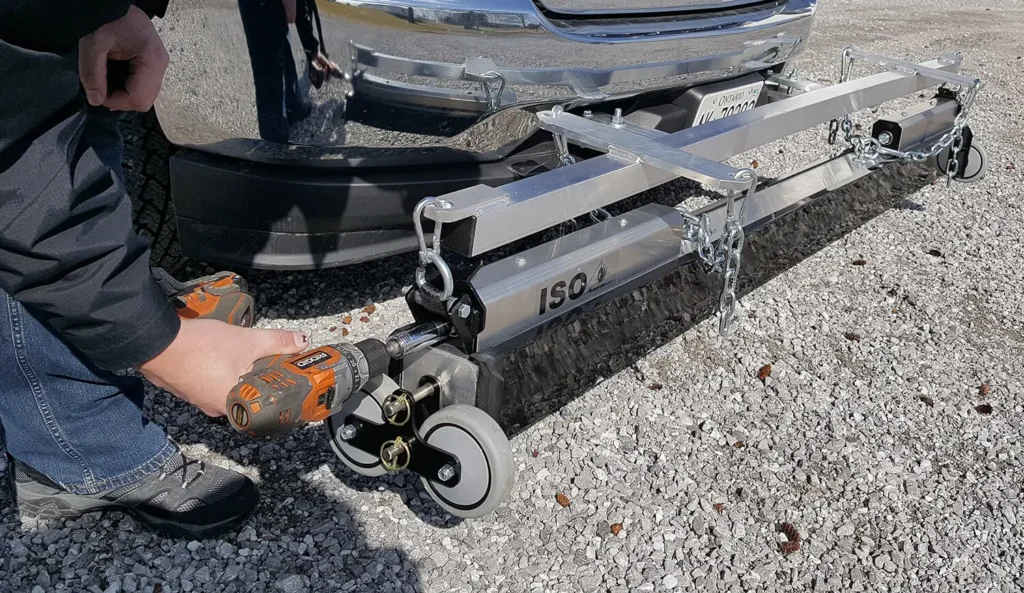

Raising and Lowering the ISO magnetic sweeper

Easily Adjust the Sweeping Height

Once a hanging magnet is mounted to a vehicle it can often be quite difficult to fine tune and control the sweeper height. This is especially frustrating if operators want the sweeper raised and out of the way when it is not being used or when moving between job sites. Operators do not want to attach and reattach the magnet continuously.



The ISO makes adjusting the height of the sweeper easy!



The ISO is unique because it is designed with Actuators on either end of the magnet that make moving the magnet up and down super quick and easy. By using a cordless drill inserted into the Actuators, operators can easily control the sweeper height, moving the sweeper to the chosen sweeping height or raising it to a road traveling height.

ISO Lifting Height Test

Play Video

Compact Size

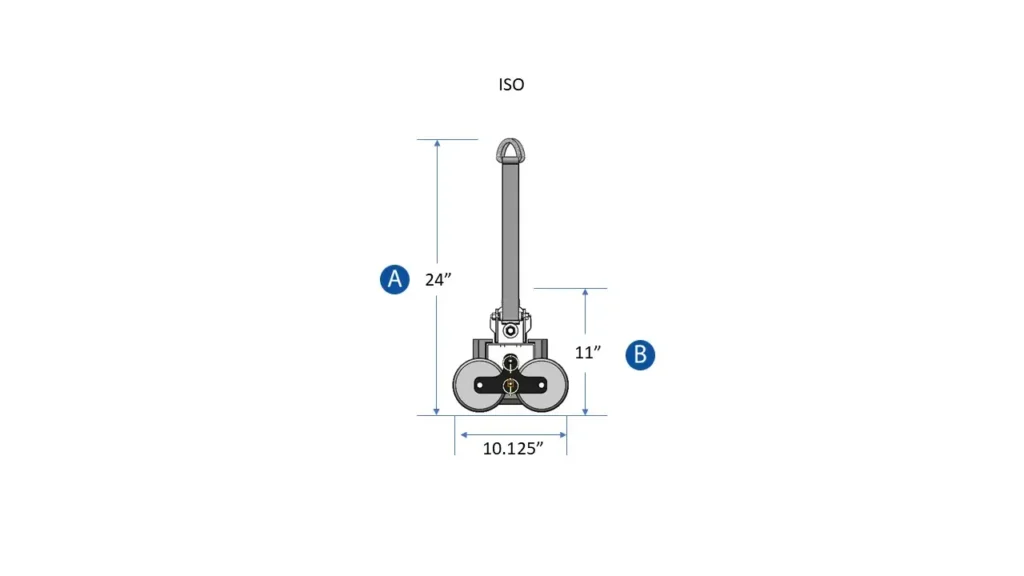

ISO end view

The ISO has a compact profile so it doesn’t interfere with your vehicle operations. For further information see the CAD section for CAD drawings showing overall dimensions of the ISO.

Exceptional Pickup Performance

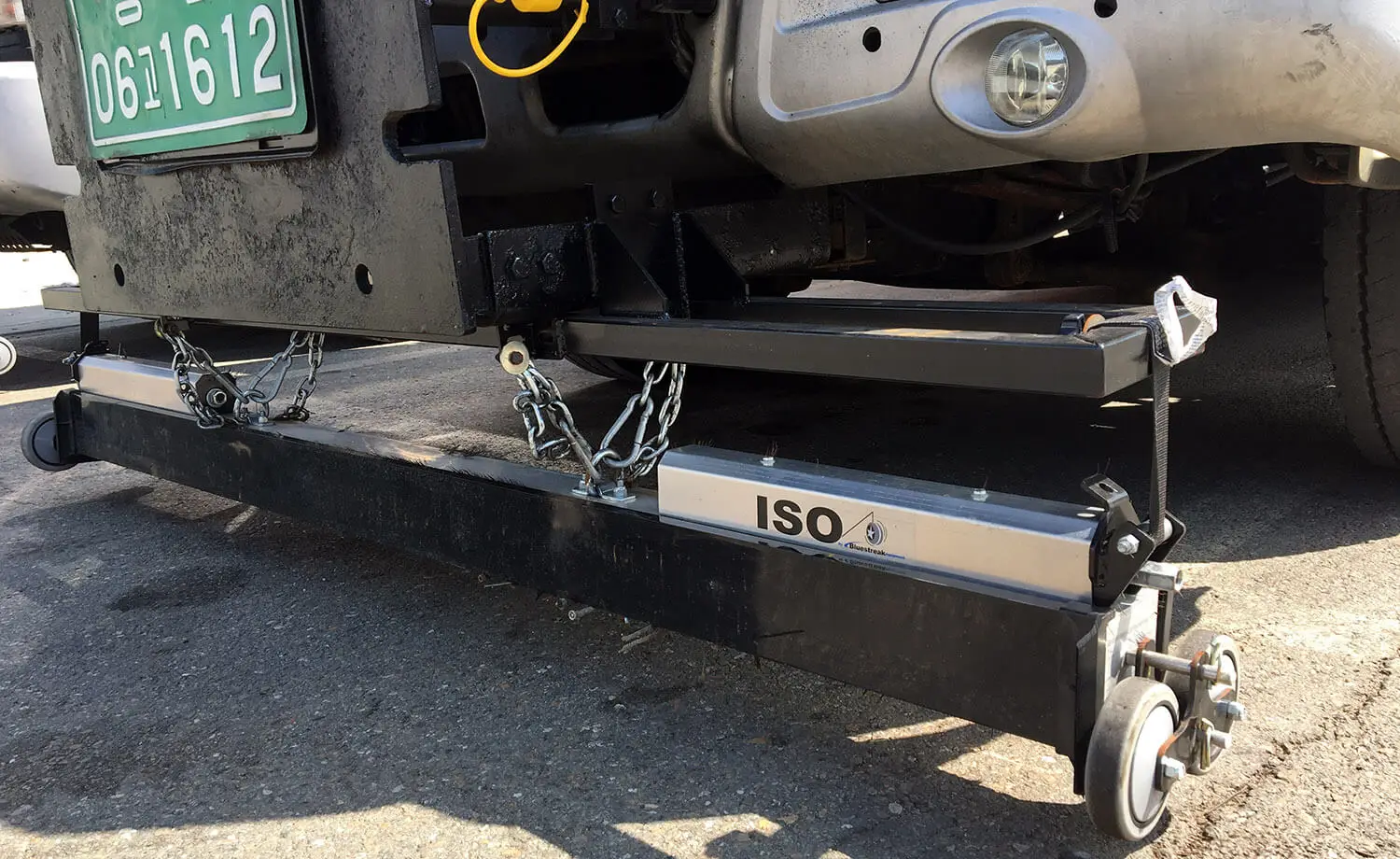

iso magnet for commercial trucks

The ISO uses permanently charged grade C8 magnets that will never need to be recharged. Power will never decrease, ensuring years of use.



The ISO will pick up a 2.5” nail when the bottom of the magnet is 9” off the ground providing plenty of pickup power performance. Magnet effectiveness will decrease as speed and sweeping height increase so to maximize performance we recommend setting the sweeping height between 2 and 3 inches in most situations. The maximum effective sweeping height while a vehicle is moving  is 5″.



The ISO magnet is completely enclosed, and the replaceable black PVC Quick Clean Off Sleeve further protects the magnet by taking all of the wear and tear of everyday use.

Wrap Around Design

The ISO is designed as an all terrain magnet which means it is designed with our “Wrap Around” feature.

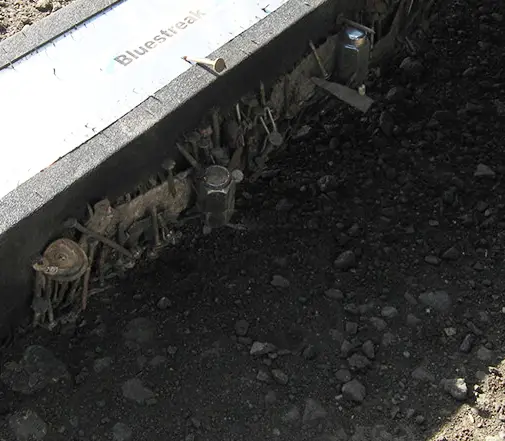

The “Wrap Around” feature ensures debris never gets wiped off the bottom of the magnet. The debris that slides off the bottom just snaps onto the back of the magnet.



In practice most of the debris that is picked up ends up on the back side of the magnet when operating at speed which gives you a good indication of why we have this feature.

Long Term Durability

iso_magnetic-sweeper-stainless-steel-pins-bluestreak-equipment

The ISO magnet is built for long term durability.



Metal debris hitting the aluminum magnet housing can wear the aluminum housing on the magnet over a long period of time and reduce its useful service life.



That’s why we’ve shifted the wear to the replaceable and removable PVC Quick Clean Off Sleeve that wraps around the magnet making clean off quick and easy and it extends the life of the ISO magnet.

Add Optional hanging bracket accessories to make mounting easy

Add Optional hanging bracket accessories to make mounting easy

See how to easily mount a hanging magnet to the front bumper or rear hitch of your truck using our optional hanging magnet brackets.

hanging bracket c and 2 inch receiver mount bracket on truck

If you have a 2” inch receiver on either the front or rear of your vehicle you can mount a ISO using Hanging Bracket A or B (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of ISO you choose), and the 2” inch Receiver Mount Bracket. These accessories are available for purchase and will be recommended accessories when you checkout.

shunt truck magnet

If you have a flat steel bumper as on many commercial trucks as shown in the picture you can mount a ISO using Hanging Bracket A or B (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of ISO you choose), and Bumper Mount Bracket A.

If you have a 2.5” inch receiver on either the front or rear of your vehicle you can mount a ISO using Hanging Bracket A or B, the 2” inch Receiver Mount Bracket and the 2.5” to 2” inch Steel Receiver Adaptor Sleeve accessory.
