Tow Behind
Easy to Use Off Road Magnetic Sweeper. Compact size and lighter.
The HOG magnetic sweeper is the little brother of the Rhino. Whereas the Rhino is designed for applications requiring significant pickup power, such as construction sites, horse arenas and small landfills where there is either significant amounts of debris or the debris needs to be pulled up from under dirt, the Hog is designed for the somewhat lighter use applications such as gravel and dirt parking lots, rental center users, trucking terminal yards and farm driveways and yards.
Easily tow this compact and light magnet with an ATV, UTV, lawn mower, golf cart, forklift. The 62" width of the HOG is perfect for these tow vehicles because these vehicles are this same general width.
Optional Quick Clean Off Sleeve and Debris Digging Rake accessories are available.
Get prices, specs, photos, videos, reviews and more...
Severe Duty Tow Behind Magnet in a Compact Size. Loads of Options for Off Road Work!
The Rhino tow behind magnetic sweeper, known as the "Big Brother" of the HOG magnetic sweeper, is ready for some very severe duty conditions with a range of options and off road features in a compact size.
It’s offered in three sweeping widths of five, six and seven feet wide and the ability to continuously adjust sweeping height from zero to five and a half inches.
It’s all the little extra features that add to the Rhino’s popularity, such as the adjustable hitch height so that when hitching the Rhino to a tow vehicle is doesn’t matter what height the hitch is on the tow vehicle the Rhino can still be held level for optimum performance.
You can add accessories such as the Quick Clean Off Sleeve to allow very quick and easy clean off. You can also add a Debris Digging Rake accessory to dislodge embedded debris to aid in the pickup process.
Get prices, specs, photos, videos, reviews and more...
Durability, Power & Easy Clean Off System. This thing is built like a tank!
The Yacare magnetic sweeper is a 72 inch wide, durable off road tow behind magnetic sweeper with an easy to use Spring Assisted Clean Off system and torsion ride suspension that smooths out rough terrain!
The Yacare clean off system is entirely different from both the HOG and RHINO. It replaces the Quick Clean Off Sleeve system with an easier to use, more durable long term solution that's especially helpful for heavy debris conditions.
More power and advanced durability provided by all steel and stainless steel construction and easy effortless clean off with dual debris release levers provide sound rationale to move up from the Rhino to the Yacare.
Yet the Yacare keeps all the features that makes the Rhino so popular; the pick up performance in off road conditions provided by the "wrap around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory. The suspension system also increases towability of the Yacare magnet through rough terrain, reducing strain on the chassis of the sweeper and tow vehicle.
Replacing the safety flags on the Rhino are the RED colored lid and “MAGNETIC SWEEPER” signage on the back of the Yacare unit, to ensure that high visibility is maintained.
This thing is built like a tank! Check out the CAD drawings.
Get prices, specs, photos, videos, reviews and more...
Power & Durability in an 82 Inch Width. Similar to the Yacare Only Bigger!
The Caiman magnetic sweeper is one step up from the Yacare magnetic sweeper.
It is like the Yacare because it has an enclosed magnet and Dual Spring Assisted Debris Release Handles, but it's wider at 82 inch wide and has much more power with 50% more magnets.
More power and wider sweeping width makes it a good choice for towing behind pickup trucks, larger tractors and UTVs such as John Deere Gators, Kubota side by sides, etc.
The Caiman also has solid pick up performance in off road conditions provided by the "wrap around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory. The torsion ride suspension system increases control in rough terrain and reduces stress on the sweeper and tow vehicle’s chassis.
Get prices, specs, photos, videos, reviews and more...

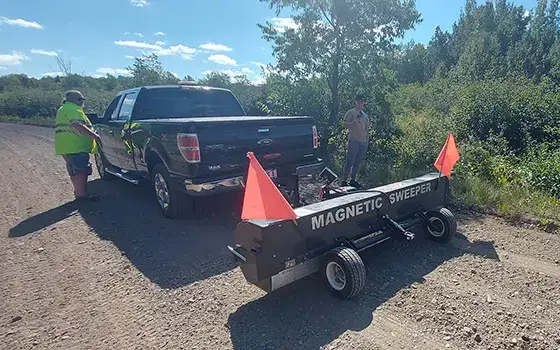

Heavy-Duty Off-Road Tow-Behind Magnet. Clean Off with a Push of a Button!

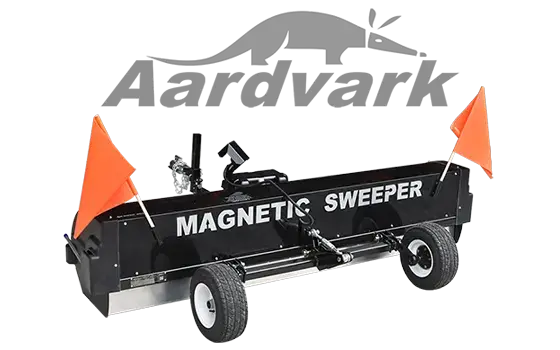

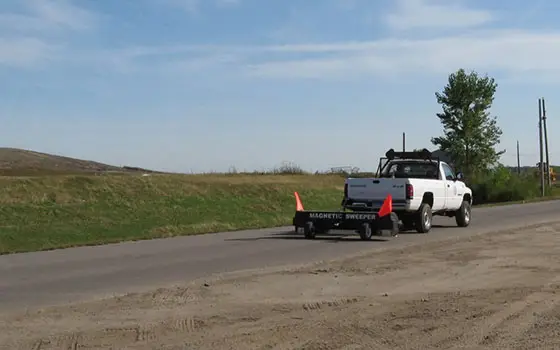

The Aardvark Magnetic Sweeper is designed for landfill sites, construction sites, access roads, rail trails, mining areas or any larger rough terrain areas. With urethane foam filled flat free wheels, heavy duty construction. With a 12” maximum pickup height using a 2.5” nail the Aardvark has plenty of power to clean up metal debris in the toughest conditions.
This unit is packed with off-road features, such as sweeping height control, inset wheels and a torsion ride suspension system to smooth out rough terrain. The Aardvark Heavy Duty Tow-Behind Magnetic Sweeper also features a 12-volt automatic push button clean off system which makes cleaning off debris from the sweeper easy and automatic.
The magnet housing is fully enclosed, offering a level of protection around the magnet. This means you don’t have to worry about metal getting all over the magnet. The Aardvark also has wrap around function (link to wrap around function blog page) which retains collected debris even if the 14-gauge aluminum debris pan hits the ground while sweeping. This makes the Aardvark magnetic sweeper an excellent option for cleaning up metal debris when terrain gets tough.
Get prices, specs, photos, videos, reviews and more...
Tow Behind Magnetic Sweeper Designed for Cleaning Large Flat Surface Areas.
The Piranha magnetic sweeper is designed to hit the road! It's the tow behind magnet to choose when you need to pickup metal from large areas like airport runways, roads or other flat surface applications.
It has lots of power, to allow greater speed while still picking up debris.
The Piranha has on board debris bins since when cleaning large areas, you could be a long way from home when you need to clean off the magnet. You can store the debris in the debris bins until you reach a dumping site. It also features larger highway rated tires to allow you to pull the unit down the road from location to location. Since the Piranha was designed for flat surfaces, the sweeping height is adjustable from 2" to 3" inches.
Get prices, specs, photos, videos, reviews and more...

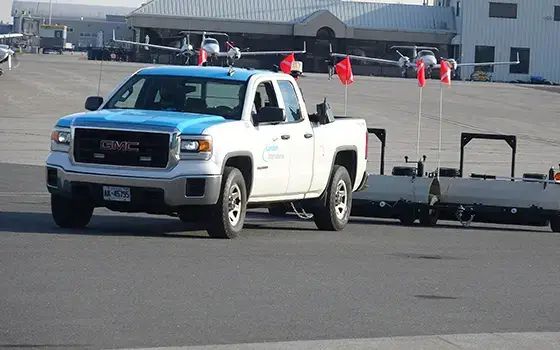

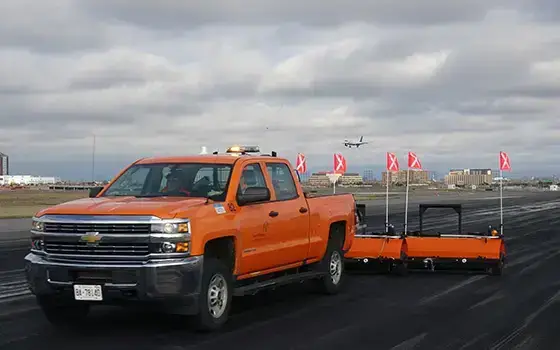

Built to Control Metal FOD at Airfields and On Aprons
$24,989.99 – $74,879.99 USD
(all prices in USD)
Â
Available in 2 sizes: Seeker Airmag 60” & Seeker Airma 180”
international airports in Ontario. The London International and Toronto Pearson International Airport gave input on features they needed for effective FOD control at their facilities. With these inputs in mind, Bluestreak Equipment built the new industry leader in metal FOD control.
A massive 12” x 3” x 60” inch alternating pole C8 ceramic magnet has twice the magnetic power of the Piranha magnet assembly and more surface area to hold onto collected debris so clean-off doesn’t have to happen as often. Clean off is accomplished by a counterweighted lever that needs to be manually pushed down to swing the magnet housing up and away from the stainless-steel debris pan to release the collected debris. From there debris can be collected using included Powerstik Pro Elite magnets and dropped into onboard FOD containment buckets.
The Seeker Airmag is built to pick up metal debris from runways at speeds up to 25km/h or 15mph but is stable at higher speeds so the magnet can get off the runway quickly if needed, and can cover ground around maintenance areas and the apron faster.
Get prices, specs, photos, videos, reviews and more...
Compact, Economical Flat Surface Tow Behind Magnet. As Simple as It Gets.
The Razor magnetic sweeper is an economical towable magnet that is ideal for parking lots, driveways or other large flat surfaces.
This tow behind magnet has no extraneous extras. It's as simple as it gets. It's simply a magnet bar on wheels.
It does feature 6 sweeper widths and 2 magnetic strength sizes so you can easily find the perfect fit for your application or vehicle.
It is particularly well suited to be towed by smaller vehicles such as ATVs or UTVs because of it's light weight.
Get prices, specs, photos, videos, reviews and more...
Remote – Controlled Clean off & Height Adjustment!
Built to Retrieve Ball Milling Steel Abrasive Material
The Mammoth magnetic sweeper is built to clear big spaces quickly, the powerful 12” x 12” x 68” alternating pole C8 magnetic assembly can hold huge amounts of metallic debris before needing to be cleaned off and can pick up a 2.5” nail from 16” off the ground. The Mammoth can retrieve the even the most elusive debris types including the nickel/steel balls used in material processing from within its 2” – 7” sweeping range.
Height adjustment and clean off is just as heavy duty as the magnetic power, these functions can be controlled from the tow vehicle using a wireless remote that activates the 12v 3000psi hydraulic system that controls magnet position and trailer height.
Comes standard with lights & fenders, on-board battery charger, and pintle ring hitch. Debris digging rake and grader attachments are optional accessories that extend the function of the Mammoth to grooming roads and industrial yards with gravel or packed surfaces.
Check out the Product Demo Videos to see the Mammoth in action in different applications.
Get prices, specs, photos, videos, reviews and more...
Quick Tips
What do the staff of Bluestreak have to say about Tow Behind magnets?
Tow behind magnets in general are just really convenient because you can pull them with a lot of different vehicles because they don’t pull hard. They’re also generally really strong, stronger than other types of magnets in a lot of cases because weight is not an issue, so they generally have bigger magnets and stronger pickup strengths.
Patrick - Bluestreak Equipment
Shipping Costs & Methods
Shipping Options
Shipping options and charges available at checkout.
Real-Time Shipping Rates
Shipping rates are calculated by connecting directly to shipping carriers, giving you real time shipping quotes when you order online.
International Shipping
Some international orders outside North America may require a freight quote on checkout before the order can be completed.
Payment Methods
Full line of magnetic sweeper products. All items in stock. Shop Online and Pay by Visa, Visa Debit, Mastercard, American Express, Discover, Diners Club, JCB, PayPal or Pay by Cheque or EFT / Wire Transfer.
Â
Know what you need for your next project?
The maximum lifting height of the Tow Behind Magnetic Sweeper Models are as follows;
Hog | 6 inches
Rhino | 8 and 1/2 inches
Yacare | 9 and 3/4 inches
Caiman | 10 and 1/2 inches
Aardvark | 12 inches
Piranha | 10 and 1/2 inches
Seeker Airmag | 10 and 1/2 inches
Razor 3"x 3" | 6 inches
Razor 4.5"x 4.5" | 8 and 1/2 inches
Mammoth | 16 inches
For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”
HogChoose The Tow Behind Magnetic Sweeper for Your Application.
Consider what surface you will be working on.
When choosing a tow behind magnetic sweeper, consider the terrain you will be towing the sweeper on because the terrain you will be working on greatly affects the magnet's performance.
Bluestreak designs tow behind magnets specifically for either "flat surfaces" applications or "all terrain" applications.
If you know you will be working mainly on relatively flat surfaces such as concrete or asphalt then choose a Piranha or the smaller Razor. If you are driving on some rougher terrain or going off road onto surfaces of dirt and gravel then choose from the HOG, Rhino, Yacare, Caiman or Aardvark.
Should you pick a magnet with the most pickup power?
Before choosing only on the basis of pickup power, keep in mind that not every application needs the most power. Some applications may benefit from having more application specific features such as a lighter frame to tow behind smaller vehicles such as ATVs or UTVs.
However, if you're wondering about pickup power, Bluestreak measures pickup power in terms of the “maximum lifting height using a two and a half inch nail”. Everyone knows what a two and a half inch nail looks like. This measure indicates the maximum height that the sweeper can pick up a two and a half inch nail from in a bench test. This is the best indication of performance and pickup power that is easy to understand.
Below are the maximum lifting height measurements of the Tow Behind Magnetic Sweeper Models.
"All Terrain" versus "Flat Surface" Tow Behind Magnets.
Flat Surface Tow Behind Magnets

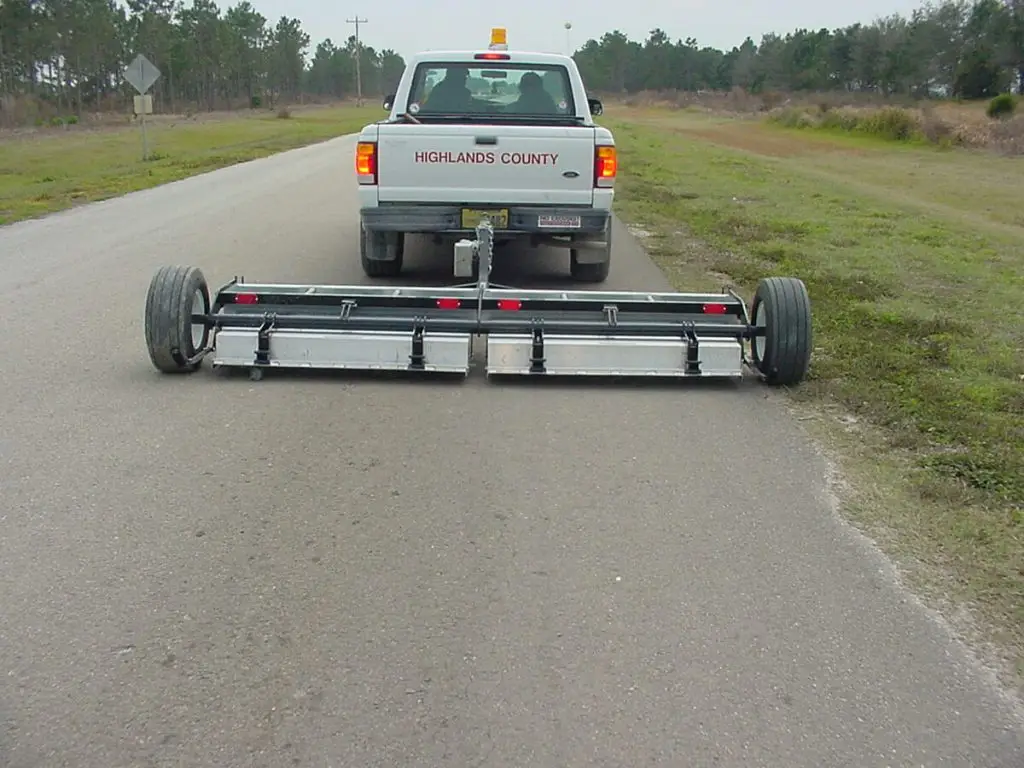

Tow behind magnetic sweepers for flat surfaces are ideal for clearing very large concrete, paved or other flat surface areas of harmful metal particles and debris.
They are ideal for use as a parking lot sweeper or for cleaning shipping and trucking facility yards, roads, highways and airports.
Tow behind magnetic sweepers for flat surfaces come in a variety of sweeping widths to best accommodate the size of the area you need to sweep. The bigger the area is, the wider the sweeper that you will need to cover that area in a given amount of time.
Heavy duty solid frame construction and pickup power.
Flat Surface Magnet Features
On Board Debris Storage
These sweepers were meant to clean large areas and therefore there may be a need to clean the debris off the unit when you’re quite a distance from anywhere you can dump the debris. Therefore the more advanced units, such as the Piranha, have on board debris buckets that provide a place for you to quickly clean the magnet off and keep sweeping until you get back to a place where you can empty the debris bins.
Light Packages
On the larger models such as the Piranha, there is an option to purchase a Lights and Fender Package. The Lights and Fender Package ensures safer operation on roads and for towing from location to location.
More Economical
These units are simpler than their equivalent “off road all terrain” counterparts. They do not have as many features so they are also less expensive. They don’t need all the height adjustment features, flat proof tires, and other features like skid plates and bash bars. They tend to be a good buy.

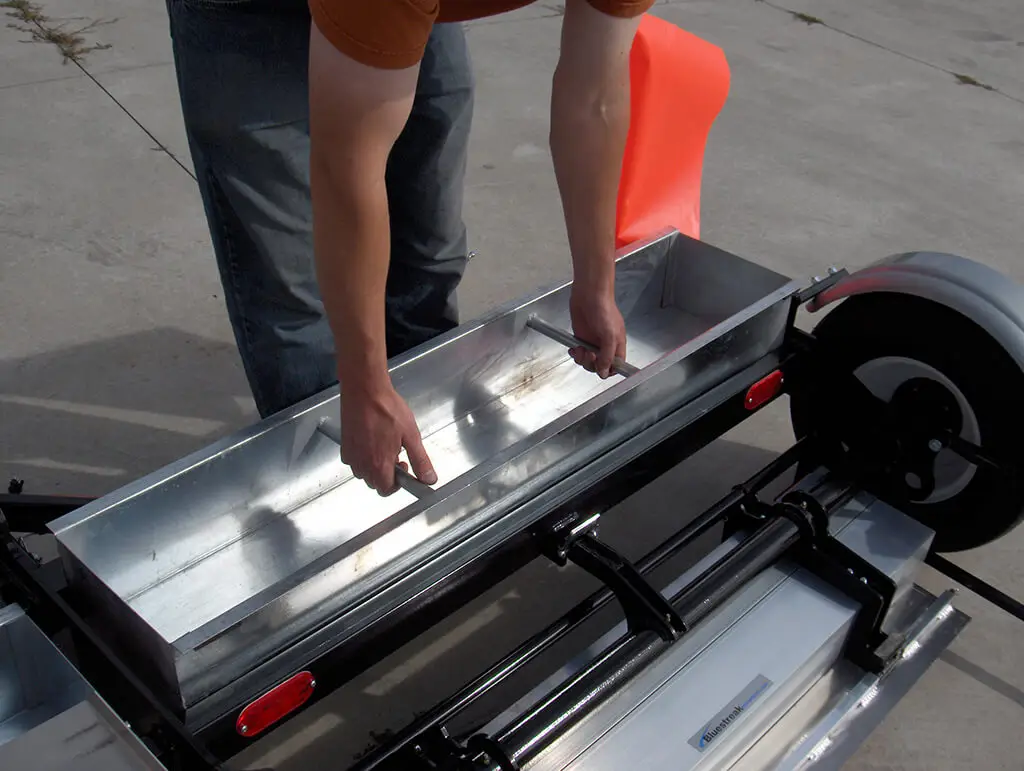

On Board debris storage included with the Piranha magnetic sweeper.
What Is a Tow-Behind Magnetic Sweeper?
Tow-behind magnetic sweepers—also referred to as towable magnetic sweepers and tow-behind magnets—are used to keep large workplace areas free from foreign metal objects that can cause injury to employees or damage to equipment, such as nails, screws, springs, scraps, and shards. They are designed to attach to the back of flat surface, off-road, and all-terrain vehicles, which enables them to be moved across and between different locations without the need for a separate motor or another form of self-propulsion.
These magnetic sweepers are highly effective and efficient at picking up metal debris and waste on various types of terrain. Additionally, they are available in a variety of designs and configurations to suit different workplace needs. While all of them have relatively simple operating requirements and low operating costs, the inclusion of specific features can facilitate sweeping operations.
Bluestreak towable magnets are available in flat surface and all-terrain variations. Key features of our all-terrain units include:
Adjustable sweeping height to maximize performance in any given terrain
Adjustable hitch height to accommodate any tow vehicle
“Wrap around” magnet design to keep debris from being wiped off
Inset rear wheels to reduce bottoming in uneven terrain
Debris digging rake to loosen embedded debris
Flat proof tires
All Terrain Tow Behind Magnets
Off road or "all terrain" tow behind magnets require very different design features that just aren’t found on general purpose or "flat surface" magnetic sweepers.
These sweepers require features to accommodate for rough terrain such as adjustable height settings and inset wheels. that help prevent “bottoming” or “ground hits” that cause the magnet bottom to hit the ground.
All the "all terrain" models also require greater pickup power to pull debris out of dirt or grass. They also have an option to add a Debris Digging Rake accessory which can loosen up embedded debris from dirt or gravel.
Control the sweeping height of the the Aardvark by turning the top link which pivots the rear inset wheels up and down.
All Terrain Magnet Features
Adjustable Height
Adjustable sweeping height control is a key feature of off road applications. If the terrain is really rough you have to be able to adjust how high the magnet is off the ground so that it isn’t hitting the ground constantly, because if it hits all the time it can drive debris into the ground making it harder to pick up the debris or can push it further back on the magnet and potentially off the magnet. It’s better that the magnet doesn’t hit the ground constantly even for a sweeper like the Aardvark that is designed to take these ground hits.
Inset Wheels
Inset wheels add to the magnetic sweeper’s ability to handle rough terrain and minimize bottoming. If wheels are on the end of a magnetic sweeper there is a greater chance of the middle of the magnetic sweeper hitting the ground. By reducing the distance any one point of the magnet is away from a wheel it reduces the chances of the magnetic sweeper hitting the ground. All of Bluestreak’s tow behind magnetic sweepers for “all terrain” are designed with wheels that are inset from the ends.
Debris Digging Rake
Off road applications may require a mechanism to “loosen up” the debris that is embedded in the dirt and gravel, in order to make it easier for the magnet to pick it up. This debris if not loosened up and picked up will gradually make its way to the surface again over time causing the same problems you’re trying to prevent. This is why all Bluestreak tow behind magnets for all terrains have an optional Debris Digging Rake accessory which provides loosen up embedded debris.
Greater Pickup Power
Off road applications require greater magnetic pick up power to pull debris out of dirt, gravel or grass. Unlike concrete and asphalt, debris can get pounded into dirt, grass and gravel over time and this material “holds” the debris making picking up the debris harder. Therefore a stronger magnet is needed to pull the debris up through this material in order to pick it up. All of Bluestreak’s tow behind magnets for “all terrain” are designed for extra pickup strength with multiple layers of permanently charged magnets packed end to end, un-spaced and with a steel backing plate in order to make the magnetic field extend further downward in order to pick up bigger debris from a greater distance.
“Debris Digging Rake” feature on the Rhino disturbs the ground on rough surfaces loosens debris.
Applications of Tow-Behind Magnets
Tow-behind magnets are suitable for removing ferrous metal debris and waste in a variety of workplaces. Some of the most common applications for our tow-behind sweeps include:
Foreign object debris (FOD), such as broken-off equipment parts or forgotten tools, pose a significant risk to aircraft  for airfields. Tow-behind magnetic sweepers make it easy for airport personnel to collect any FOD that may accumulate on runways and other areas, ensuring areas are clean and clear of all metal materials that can injure employees or damage equipment.
During construction projects, any unchecked metal materials (e.g., fasteners, wire, scrap metal, etc.) can lead to employee injury and/or equipment damage. Towable magnets enable construction workers to quickly and easily clear these unwanted materials from large areas.
In agricultural facilities, metal debris naturally accumulates in and around fields, pastures, and barns as trucks and equipment come and go. This material can be dangerous to livestock and damaging to vehicles, both of which cost the farm time and money. Tow-behind magnets help farmers keep their land and facilities free from debris, resulting in a safer working and living environment.Â
The roads to landfills are often rife with metal debris and waste that can damage the vehicles that drive on them. These include both passenger cars, garbage trucks, and the vehicles working in the landfill. The latter two generally have many wheels that are expensive to repair and replace, which is why it’s essential landfills invest in magnetic sweepers to keep the surrounding areas clear of ferrous materials.
On roads and highways, metal debris can be extremely dangerous. When vehicles run into it, it can cause flat tires or accidents. Magnetic sweepers are a fast and easy method of removing this unwanted material from the roadways. Â
Metal debris and waste in parking lots can harm people, pets, and vehicles. It can also lower the overall aesthetic quality of the area. By investing in magnetic sweepers, property owners and managers can avoid these problems.
FOD poses similar aircraft risks for military facilities as it does for airports. The damage to equipment and injury to employees it causes can significantly decrease productivity and increase costs. For this reason, the need for magnetic sweepers to control FOD is extremely high in these workplaces.
In shipping and trucking yards, metal debris and waste come from various sources, including the transportation vehicles, the equipment used to load/unload goods, and the goods themselves. Regardless of the source, the FOD can cause equipment damage and employee injury. Magnetic sweepers help keep these unwanted materials in check.
