Types of UTV Magnets

There are three types of UTV magnets differentiated by their mounting position on the UTV;

Front Mount UTV Magnets

Attach to the front of the UTV like a snowplow.

construction-site-magnetic-sweeper-rhino-bluestreak-equipment

Tow Behind UTV Magnets

Attach behind the UTV using a ball or wagon style pin hitch.

wrasse-magnetic-sweeper-front-plow-bluestreak-equipment

Hanging UTV Magnets

Attach to the UTV by hanging from the front, rear or mid mounted.

Front Mount UTV Magnet! Pick up metal debris before you drive over it!

Yak

$5,999.99 USDBuy Here

(all prices in USD)



Available in 1 sizes: Yak 66″

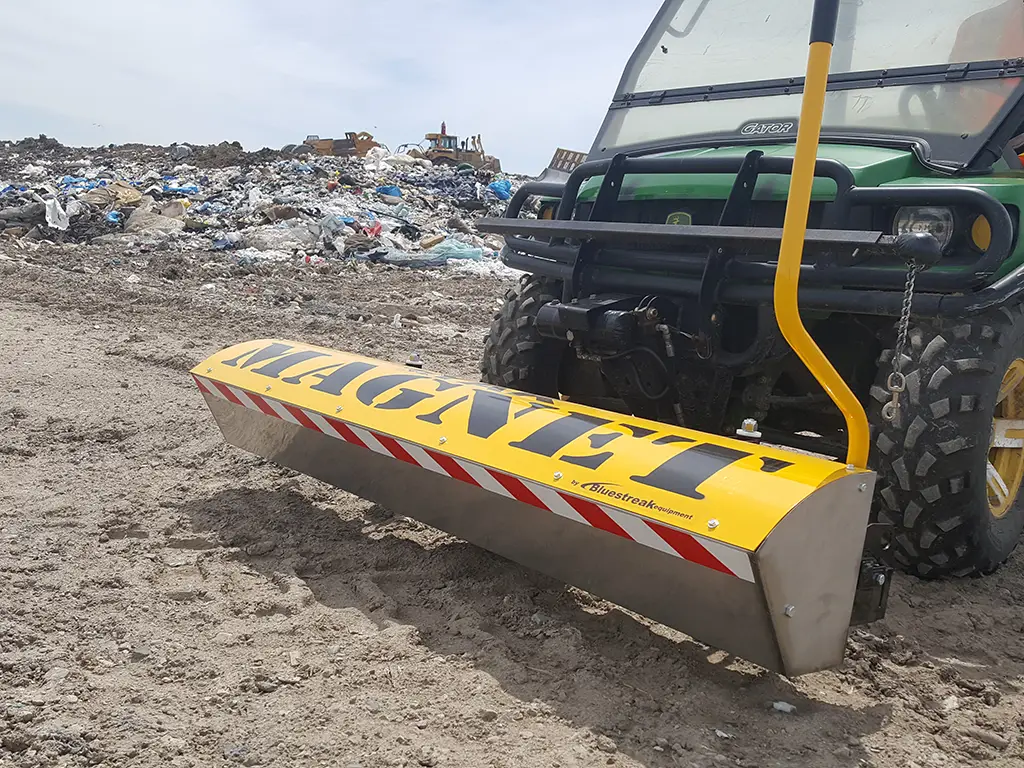

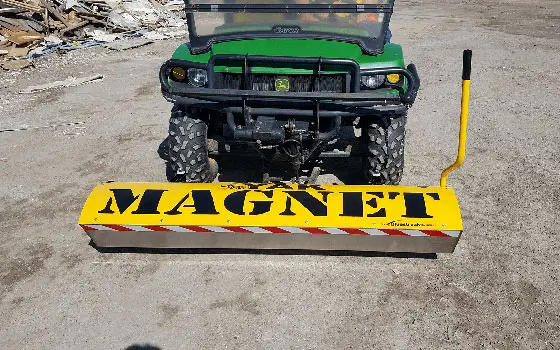

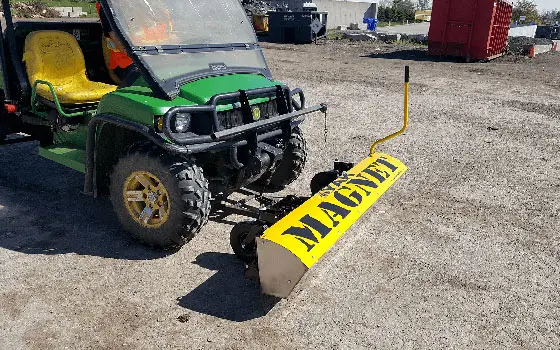

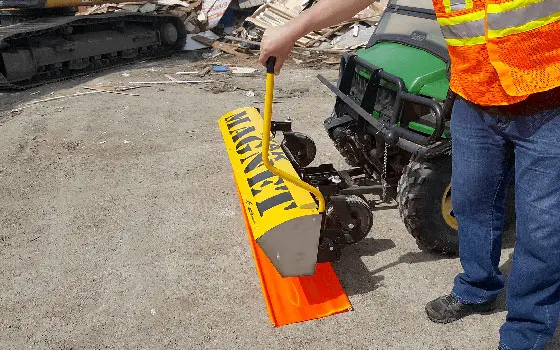

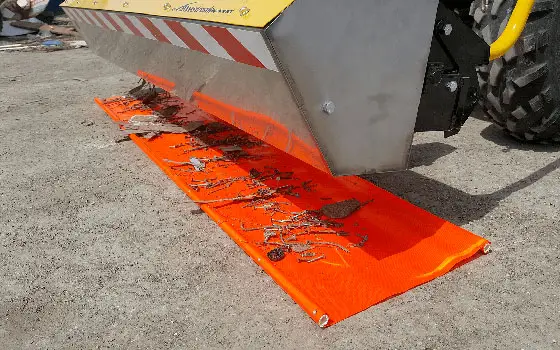

The YAK is a front mount, off road, all terrain magnetic sweeper designed specifically for UTV side by side vehicles. Designed to any fit any UTV side by side vehicle right out of the box by utilizing any UTV snow plow setup as the connection point to the UTV.



It has a 66 inch sweeping width and a fully enclosed magnet. Comes with highly visible “MAGNET” signage, and safety yellow colored lid. Flat proof 10 inch x 3 inch caster wheels. Utilizes your UTV winch or other lifting device to raise and lower the magnet.



Sweeping height is adjustable from 1 inch to 4 inch, in 1/2 inch increments. Stainless steel magnet housing and magnet pan (all sides except the yellow lid). Maximum lifting height of 7 ½” inches (using a 2 ½ inch nail)



The YAK is the ultimate UTV magnet in functionality and performance.



Get prices, specs, photos, videos, reviews and more...



Severe Duty Tow Behind UTV Magnet in a Compact Size!

$2,899.99 USD$3,099.99 USDBuy Here

(all prices in USD)


Available in 3 sizes: Rhino 62″, Rhino 74″, Rhino 86″

Loads of Options for Off Road Work!

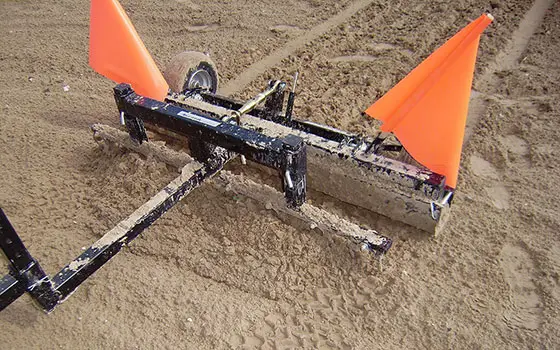

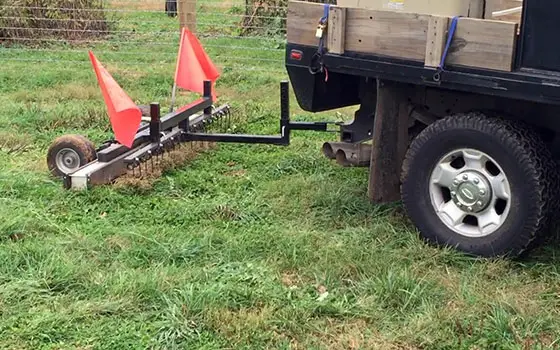

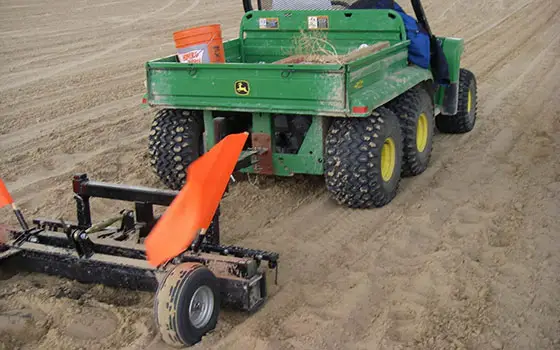

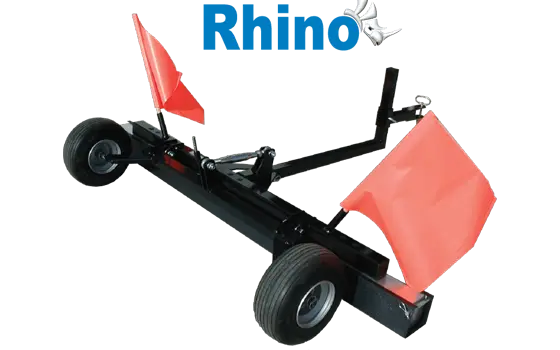

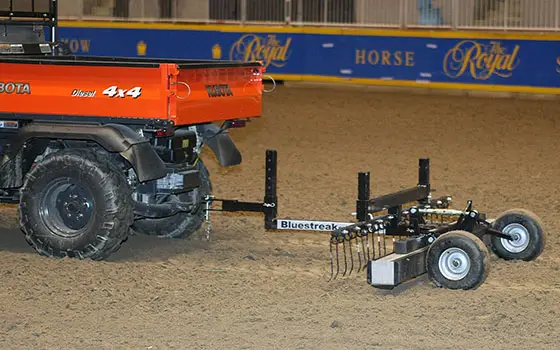

The Rhino magnetic sweeper is a robust tow behind designed specifically for tough use in off road conditions.



Comes in 3 sweeping width sizes of five, six and seven feet.



Lots of pickup power, adjustable sweeping height, safety flags and optional accessories including a Quick Clean Off Sleeve and Debris Digging Rake.



Get prices, specs, photos, videos, reviews and more...



Easy To Use Off Road UTV Magnet. Compact and Light!

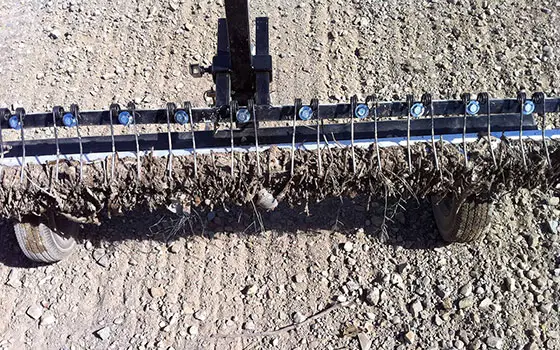

Hog

$1,729.99 USDBuy Here

(all prices in USD)



Available in 1 size:  HOG 62″″

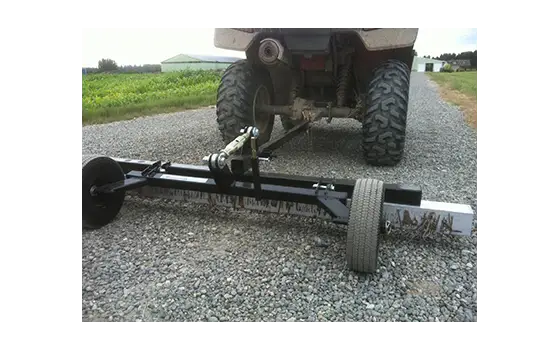

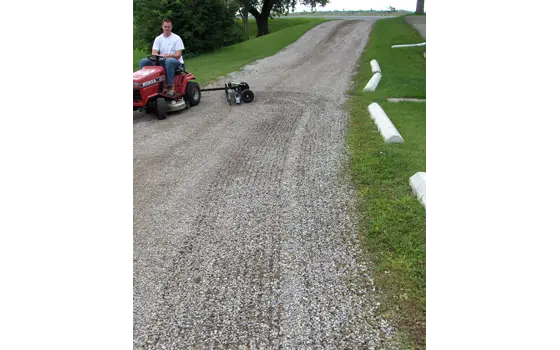

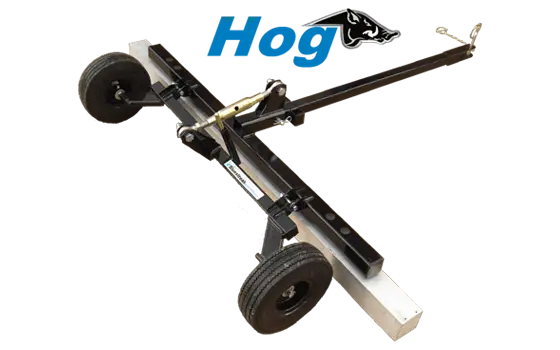

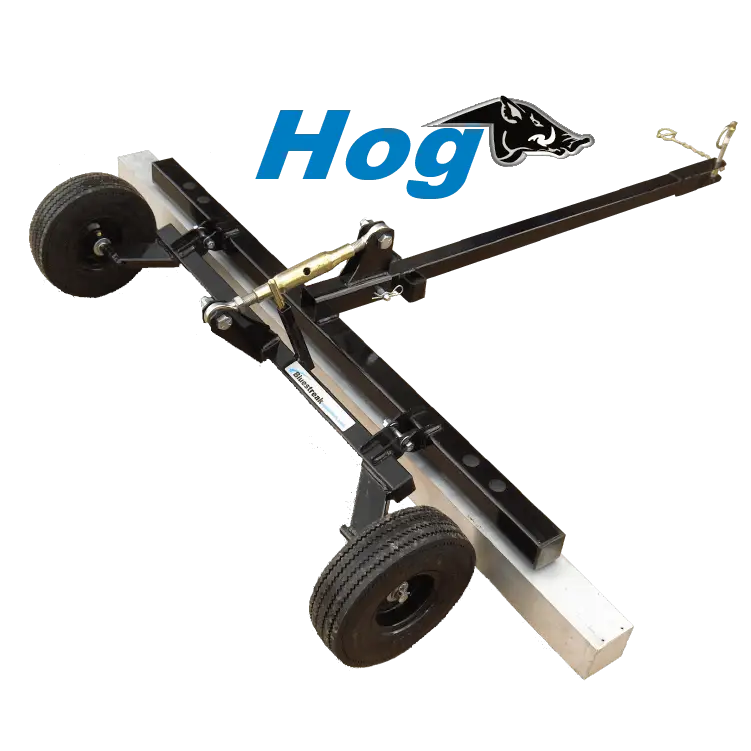

The HOG magnetic sweeper is an off road tow behind design that’s a smaller version of the Rhino.



It comes in 1 five-foot sweeping width, and optional Quick Clean Off Sleeve and Debris Digging Rake accessories are available.



Get prices, specs, photos, videos, reviews and more...



Durability, Power & Easy Clean Off System. This thing is built like a tank!

$8,499.99 USD

(all prices in USD)



Available in 1 sweeper width: Yacare 72″

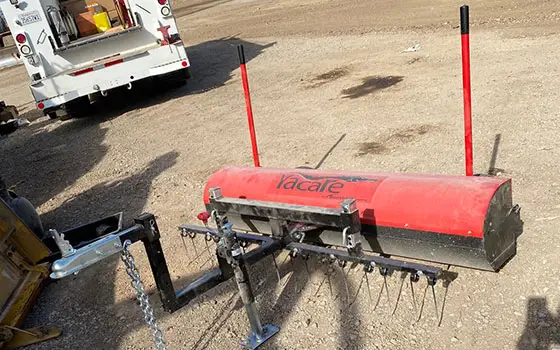

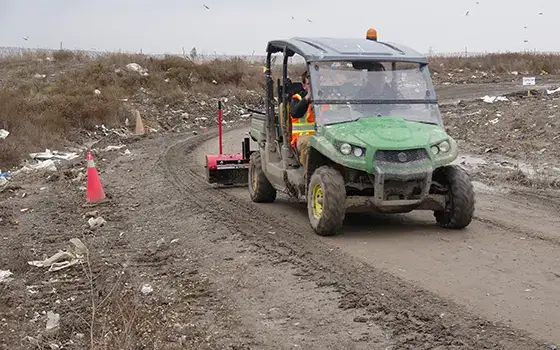

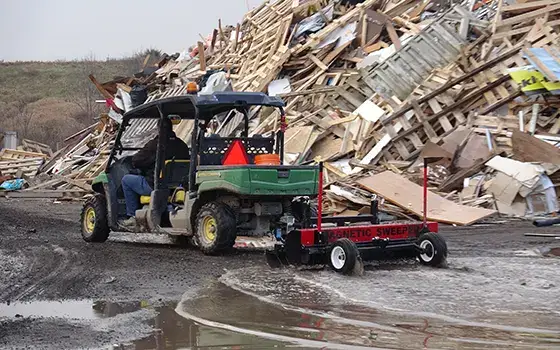

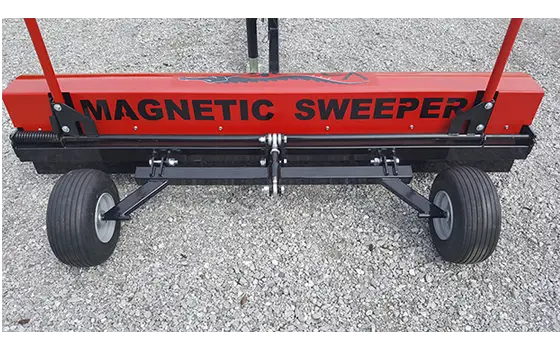

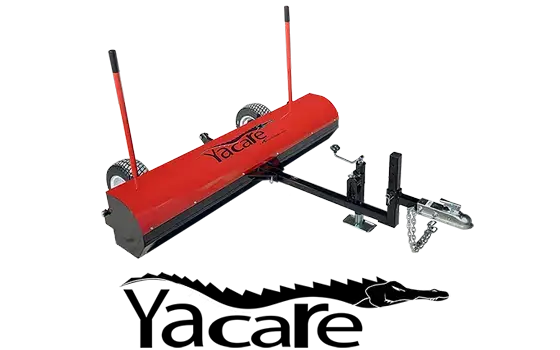

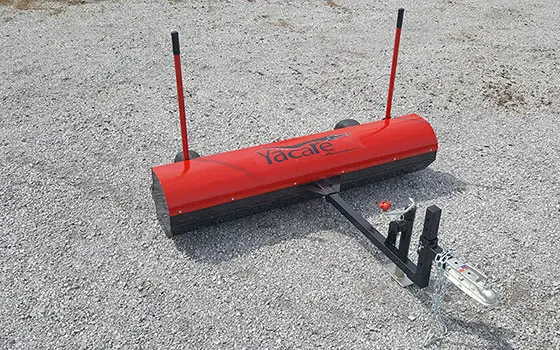

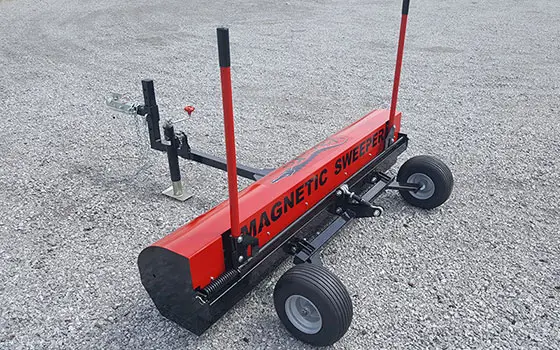

The Yacare magnetic sweeper is a 72 inch wide, durable off road tow behind magnetic sweeper with an easy to use Spring Assisted Clean Off system and torsion ride suspension that smooths out rough terrain!



The Yacare clean off system is entirely different from both the HOG and RHINO. It replaces the Quick Clean Off Sleeve system with an easier to use, more durable long term solution that's especially helpful for heavy debris conditions.



More power and advanced durability provided by all steel and stainless steel construction and easy effortless clean off with dual debris release levers provide sound rationale to move up from the Rhino to the Yacare.



Yet the Yacare keeps all the features that makes the Rhino so popular; the pick up performance in off road conditions provided by the "wrap around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory. The suspension system also increases towability of the Yacare magnet through rough terrain, reducing strain on the chassis of the sweeper and tow vehicle.



Replacing the safety flags on the Rhino are the RED colored lid and “MAGNETIC SWEEPER” signage on the back of the Yacare unit, to ensure that high visibility is maintained.



This thing is built like a tank! Check out the CAD drawings.



Get prices, specs, photos, videos, reviews and more...



Power & Durability in an 82 Inch Width. Similar to the Yacare Only Bigger!

$12,999.99 USD

(all prices in USD)



Available in 1 sweeper width: Caiman 82″

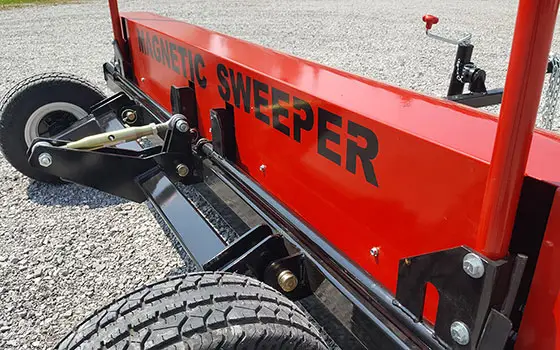

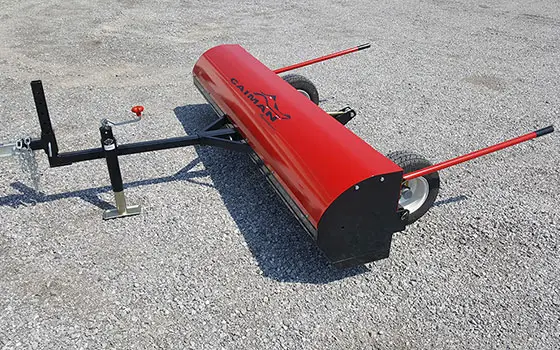

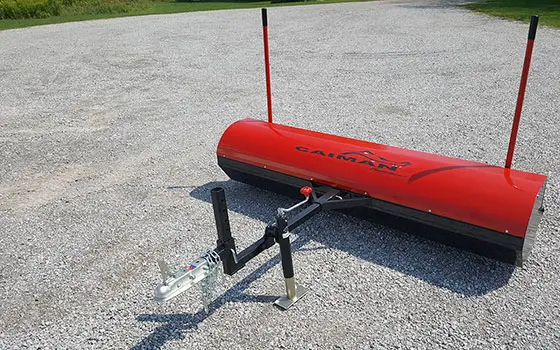

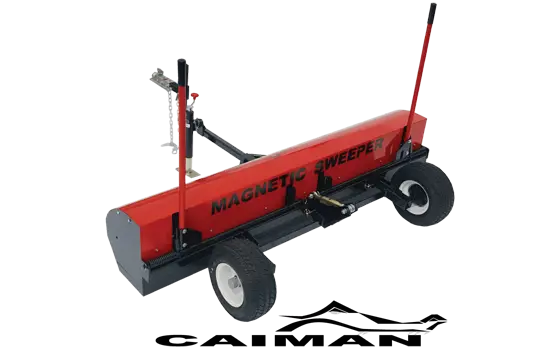

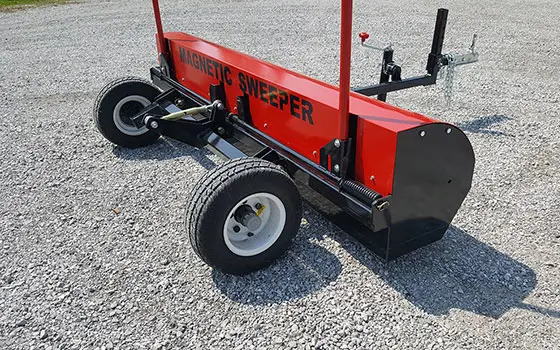

The Caiman magnetic sweeper is one step up from the Yacare magnetic sweeper.



It is like the Yacare because it has an enclosed magnet and Dual Spring Assisted Debris Release Handles, but it's wider at 82 inch wide and has much more power with 50% more magnets.



More power and wider sweeping width makes it a good choice for towing behind pickup trucks, larger tractors and UTVs such as John Deere Gators, Kubota side by sides, etc.



The Caiman also has solid pick up performance in off road conditions provided by the "wrap around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory. The torsion ride suspension system increases control in rough terrain and reduces stress on the sweeper and tow vehicle’s chassis.



Get prices, specs, photos, videos, reviews and more...



Economical UTV Hanging Magnetic Bar. Versatile and solid UTV magnet.

$459.99 USD$1,479.99 USDBuy Here



(all prices in USD)



Available in 3 magnet housing sizes: Wrasse 2″x5″,  Wrasse 3″x 3″, Wrasse 4.5″ x 4.5″



Available in 7 sweeping widths: 26″, 38″, 50″, 62″, 74″, 86″, 98″

The Wrasse magnetic bar is extremely versatile and economical UTV magnet solution.



The Wrasse hanging design has multiple magnet strengths and sweeping widths to fit your UTV.



It is a simple magnet bar of with a range of sizes to choose from. Hanging chains are included with the magnet. You decide where the it fits best on your UTV.



There is also an optional Quick Clean Off Sleeve for the Wrasse 3"x 3" and 4.5″ x 4.5″ which makes cleaning debris off the magnet bar easy.



Get prices, specs, photos, videos, reviews and more...



A hanging magnet made for front mounting on UTV’s operating in dirt and gravel conditions.

$919.99 USD$2,419.99 USDBuy Here

(all prices in USD)



Available in 6 sweeping widths: 38″, 50″, 62″, 74″, 86″, 98″

With 10” inch x 3” inch wide flat proof Bumper wheels.



The EIGER was designed for those slightly more off-road surfaces with more uneven surfaces such as dirt and gravel where potholes and bumps exist.



Designed with wide wheels to stay on top of those surfaces, and also designed with a greater minimum sweeping height of 2.5”inches to prevent the sweeper from hitting the ground.



Comes standard with black PVC Quick Clean Off Sleeve for easy debris removal, and 4 hanging chains with 8 quick clips to hang the EIGER from your UTV.



Get prices, specs, photos, videos, reviews and more...



Heavy Duty Aluminum Sleeve Hanging Magnetic Sweeper

Nyx

$2,589.99 – $3,189.99 USD

(all prices in USD)



Available in 4 sizes:  NYX 62”, NYX 74”, NYX 86”, NYX 98”

The Nyx Heavy Duty Hanging Magnetic Sweeper is built to endure heavy duty terrain while clearing metal debris. An Aluminum quick clean off sleeve protects the magnet housing from impacts and crush forces and allows debris to be removed from the magnetic field quickly and easily.



The Nyx also features 10.5” x 3.25” inch Carlisle flat free wheels with UHMW bushings replacing standard ball bearings for greater impact resistance and smooth operation. These wheels will touch down on terrain changes before the clean off sleeve so the Nyx can glide over obstacles rather than strike the ground.



A 4.5” x 4.5” inch permanently charged C8 magnet housing allows the Nyx to pull a 2.5” inch 8 penny nail from up to 8.25” inches off the ground. So, in the 3”-5” inch recommended sweeping height range the Nyx has plenty of pick up power to retrieve metal debris regardless of terrain requirements. The Nyx attaches easily to many different vehicles using the included chains; making it a versatile and durable tool for clearing debris in rough environments.



Get prices, specs, photos, videos, reviews and more...



Quick Tips

Shipping Costs & Methods

Shipping Options

Shipping options and charges available at checkout.

Real-Time Shipping Rates

Shipping rates are calculated by connecting directly to shipping carriers, giving you real time shipping quotes when you order online.

International Shipping

Some international orders outside North America may require a freight quote on checkout before the order can be completed.

Payment Methods

Full line of magnetic sweeper products. All items in stock. Shop Online and Pay by Visa, Visa Debit, Mastercard, American Express, Discover, Diners Club, JCB, PayPal or Pay by Cheque or EFT / Wire Transfer.



card-visacard-mastercard card-amex card-discover card-dinersclub card-jcb Debit Visa
PayPal

Know what you need for your next project?

Front Mount Brackets for Kubota Snow Plow System

Kubota Snow Plow Mount For Hanging Bracket

The Kubota Snow Plow Mount for Hanging Brackets allows the use of any Bluestreak Equipment hanging bracket on the front of a Kubota UTV that has the Kubota snow plow system attached to it. This gives you hydraulic control of the height of the magnet. Mounting a magnet on the front of a Kubota lets the magnets protect the machines tires rather than having the tires be the first point of contact while sweeping.

Hanging UTV Magnet on Kubota Snow Plow Mount

Kubota Yak Bracket

This bracket system allows owners of a Kubota UTV with the Kubota snow plow system to easily attach the Yak magnetic sweeper. This grants the user hydraulic control over the height of the Yak magnet so it can be lifted out of the way if not being used. This bracket makes mounting a Yak to a UTV a very simple job with no fabrication required.

Kubota Yak Bracket UTV Front Mount Magnetic Sweeper

7 Questions to Ask Before Buying a UTV Magnet​

How much do you want to spend on a UTV magnet?

If you have an extensive debris problem that will cause flat tires if you run over the debris then a front mount magnetic sweeper is the recommended UTV magnet and may be the only consideration in your choice of magnet. A front mounted magnetic sweeper will pick up debris like nails before you run over them. This is something that seems obvious but positioning the UTV magnet at the front of the UTV is much better than at the rear where you will run over the debris before you pick it up.

What is the danger posed by the debris problem?

While picking up debris before running over it seems intuitively like the best option and only option, it also comes at a greater cost. The front mount UTV magnet design is a more complex solution because it requires a much more complex mounting system and the weight of the magnet has to be controlled to keep the UTV in balance. If a front mount UTV magnet is too costly an option then a UTV hanging magnet is the most versatile and cost effective solution. A UTV hanging magnet is essentially a large magnetic bar without many of the other design mechanisms that accompany either a tow behind magnet or a front mount magnet. A UTV hanging magnet is a versatile and cost effective choice.

Are you able to leave a magnet mounted on the UTV?

Given that you will be using the UTV for other tasks, you should consider if you are able to leave a tow behind, front mount or hanging magnet on the UTV all of the time or if it has to come off and on regularly. If you cannot leave the UTV magnet on, then the tow behind solution may be the best option for you because it can be easily and quickly hitched to the UTV when needed. A hanging magnet or front mount magnet will be a bit more involved and take more time to mount and demount from the UTV. If you can mount a magnet permanently on your UTV, it’s going to work for you all the time while you’re driving around and it saves you the time of temporarily mounting and demounting it. If you can leave a UTV magnet mounted, a mounted solution such as a UTV front mount or a hanging UTV magnet is the best solution.

How easy is the UTV magnet to clean off?

A UTV magnet may work very well at picking up metal debris, but consider how easy it is to clean the magnet off. Think through how you would clean the magnet off step by step. Make sure it makes sense to you and your situation. We try and do this for you so that the clean off system isn’t a difficult or time-consuming task, but some manufacturers have not thought of this. Pay attention to the details of how this clean off system will work from start to finish, right up to the point of getting the debris to the garbage or scrap bin.

How good is the UTV magnet at hanging on to the debris that it picks up?

If you are using your UTV magnet regularly, you are not going to be cleaning your magnet off constantly.  So it’s important that when your magnet does pick up nails or screws these items stick to the magnet and do not fall off at the first bump. If the UTV magnet is suddenly shaken because of a bump or if the bottom of the magnet hits the ground and the debris is wiped backward on the magnet it’s important that the debris stays on. You want the debris to stay on the magnet until you decide to remove it. The last thing you want is to pick up the same debris over and over again because it keeps falling off.  To ensure your debris hangs on to the magnet make sure your magnet has features like our “Wrap Around Feature”. This feature not only makes sure debris doesn’t get wiped off the bottom of the magnet, it makes the debris holding capacity higher. You’ll actually find in practice that most of your debris ends up on the side of your magnet not the bottom of it. And that’s a good indication to you why we have the “Wrap Around” feature.

How far off the ground will the UTV magnet be positioned?

It’s important to know how far off the ground you will position the magnet and also know how far off the ground the magnet will still perform well. For most of our magnets we give you the “Maximum Lifting Height” in the specs. This will tell you how far off the ground the magnet will perform. We want to make sure our products meet your expectations. Make sure you take a look at the magnet’s specification for “Maximum Lifting Height”. We bench test every one of our magnetic sweeper models to determine their maximum lifting height using a two and a half inch standard nail. Everyone knows what a two and a half inch nail looks like which is why we use this standard measure of magnet strength and it will give you a very good idea of magnet performance. Many times we have videos of our products picking up various other materials so take a look at the videos in the video galleries. They give you a chance to “kick the tires” and see how the products perform. Many of these videos have been submitted by previous customers.

What terrain and in what conditions will you be working in?

The rougher and dirtier the terrain your UTV operates in the stronger the magnet your likely going to need because the magnet will have to be set higher to avoid constantly hitting the ground. The magnet will also need to pick up debris through some dirt so the strength needs to be greater. The rougher the terrain that exists because of things like bumps and pot holes the more you will want or favor a magnet that has some protection built in to the design to either deal with the abuse of hitting the ground or being able to move out of the way when it does hit the ground in order to prevent damage.

The maximum lifting height of the UTV magnets;

Yak | 7 and 1/2 inches
Rhino | 6 inches
Hog | 4 and 1/2 inches
Yacare | 9 and 3/4 inches
Caiman | 10 and 1/2 inches
Wrasse 2" x 5" | 4 and 3/4 inches
Wrasse 3" x 3" | 6 inches
Wrasse 4.5" x 4.5" | 8 and 1/2 inches
Eiger | 9 and 1/4 inches
Nyx | 8 and 1/4 inches

For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”

Product Max Lift Height Weight Widths Height Adj. Wheel Type Clean-off Method Terrain Surface Pricing Purchase
YakYak 7 1/2 ” inches 249 lbs 66" Yes, 1 to 4 Inches, in 1/2” increments 10” x 3“ foam filled flat proof - centered hub with 5/8" ball bearing Debris Release Handle All Terrain

$5,999.99 USD

RhinoRhino 8 1/2" 252 lbs, 277 lbs, 302 lbs 62", 74", 86" 0" to 5 1/2" Continuous Adjustment 13" x 6.5" flat proof, ball bearing tires Wipe clean with glove or rag or purchase the optional Quick Clean Off Sleeve All Terrain

$2,899.99 - $3,099.99 USD

HogHog 6" 128 lbs 62" 0" to 6" Continuous Adjustment 10" x 3" flat proof tires Wipe clean with glove or rag. All Terrain

$1,729.99 USD

YacareYacare 9 3/4" 594 lbs 72" 2" to 6" Continuous Adjustment 15” x 6.5” flat proof, hub and spindle wheels Spring Assisted Dual Debris Release Handles All Terrain

$8,499.99 USD

CaimanCaiman 10 1/2" 900 lbs 82" 2" to 6" Continuous Adjustment 16.5" x 6.5" flat proof, hub and spindle wheels Spring Assisted Dual Debris Release Handles All Terrain

$12,999.99 USD

Wrasse 2.5Wrasse 2"x5" 4 3/4" 24lbs, 35lbs, 47lbs, 58lbs, 70lbs, 81lbs, 93lbs 26", 38", 50", 62", 74", 86", 98" Change suspension height by rising or lowering the chains to a maximum height of 3". None Wipe clean with glove or rag. Flat Surfaces

$459.99 USD

-

$839.99 USD

Wrasse 3Wrasse 3"x3" 6" 28lbs, 40lbs, 53lbs 65lbs, 77lbs, 89lbs,102lbs 26", 38", 50", 62", 74", 86", 98" Change suspension height by rising or lowering the chains to a maximum height of 4". None Wipe clean with glove or rag. Also available with a Quick Clean Off Sleeve accessory. Flat Surfaces

$479.99 USD

-

$959.99 USD

Wrasse 4.5Wrasse 4.5"x4.5" 8 1/2" 65lbs, 93lbs, 120lbs, 148lbs, 175lbs, 203lbs, 230lbs 26", 38", 50", 62", 74", 86", 98" Change suspension height by rising or lowering the chains to a maximum height of 5". None Wipe clean with glove or rag. Also available with a Quick Clean Off Sleeve accessory. Flat Surfaces

$629.99 USD

-

$1,479.99 USD

EigerEiger 9.25" 124lbs, 158lbs, 192lbs, 226lbs, 259lbs, 292lbs 38", 50", 62", 74", 86", 98" Yes – by changing mounting height. 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 100kg (220 lbs) capacity each Quick Clean Off Sleeve comes standard. All Terrain

$919.99 - $2,419.99 USD

NyxNyx 8.25" 204.6 lbs, 252.5 lbs, 291.1 lbs, 324.5 lbs 62", 74", 86", 98" Yes, 3" - 5" 10.5" x 3.5" foam filled flat proof wheels with 5/8" UHMW bushings Aluminum quick clean off sleeve All Terrain

$2,589.99 - $3,189.99 USD

Add a magnet to your UTV and pick up metal debris while you work.

What is a UTV?

UTV stands for Utility Terrain Vehicles or Utility Task Vehicles, but most people know them by the name of “UTV’s” or “side by sides”.



UTV’s have grown in popularity by leaps and bounds and while used for recreational purposes their also heavily used in working environments.



They are common place on farms, in manufacturing environments, on many large construction sites, and large industrial locations, sports facilities, fire/rescue, disaster relief workers, beach patrols, the military and widely used by park management everywhere. They move people, equipment, tools, and parts efficiently from place to place in almost any conditions.



UTV's tend to be more useful than an ATV, but more versatile than a pickup truck. The whole segment is still evolving, with some models leaning more to the “recreational side” and others leaning more to the “commercial utility” side of things.

Why use a UTV magnet?

If you use a UTV and you also have debris that is causing problems usually in the form of flat tires, then attaching a magnet to your UTV is an obvious solution because it will allow you to pickup the debris causing the flat tires while the UTV is used during it’s normal activities. Labor is the biggest single cost to removing debris, therefore if debris can be picked up without additional labor costs, while other normal activities are carried out, the cost of debris removal is minimal and the payback from buying a UTV magnet can be high. Payback can be measured in the form of reduced flat tire costs, reduced downtime, and schedule disruptions.

wrasse-magnetic-sweeper-4wheeler-bluestreak-equipment

Make Clean Off Easier

A Quick Clean Off Sleeve can make cleaning off the Rhino or Wrasse magnets a simple and easy task. Just pull the sleeve off and all the metal debris falls off the one side of the magnet.
