$1,008.99
| Weight | 51.2 lbs |
|---|---|

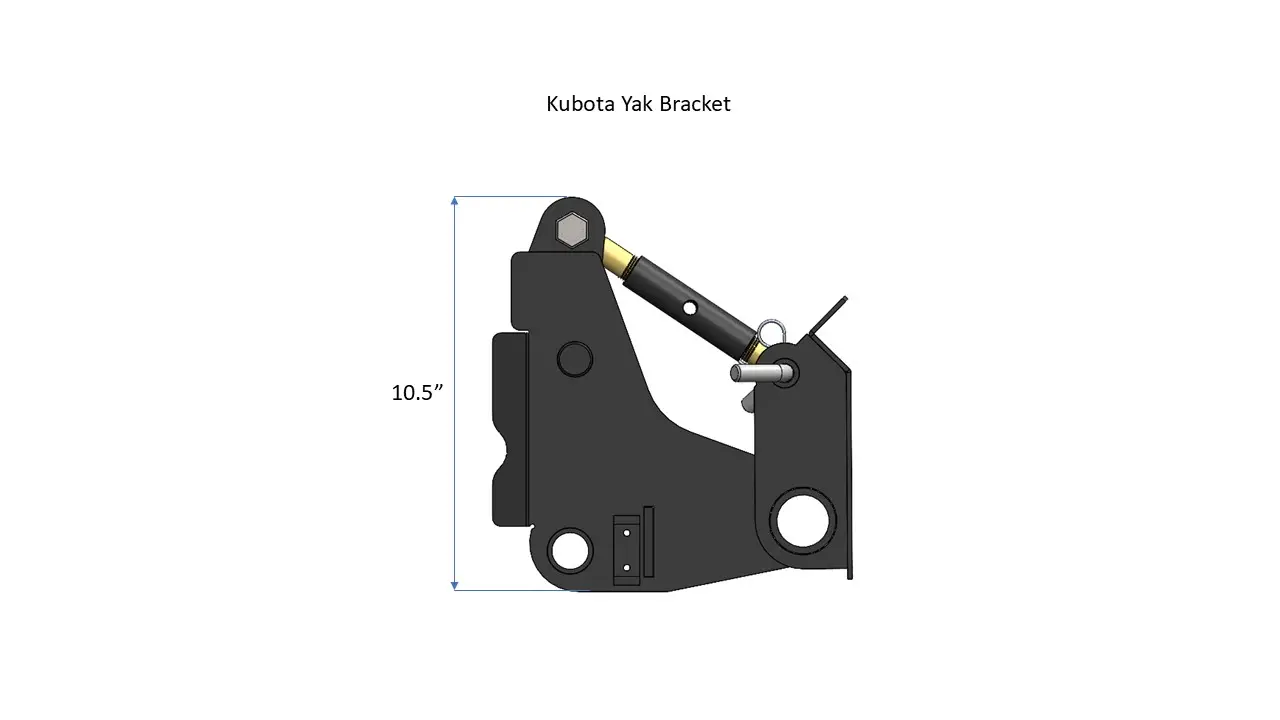

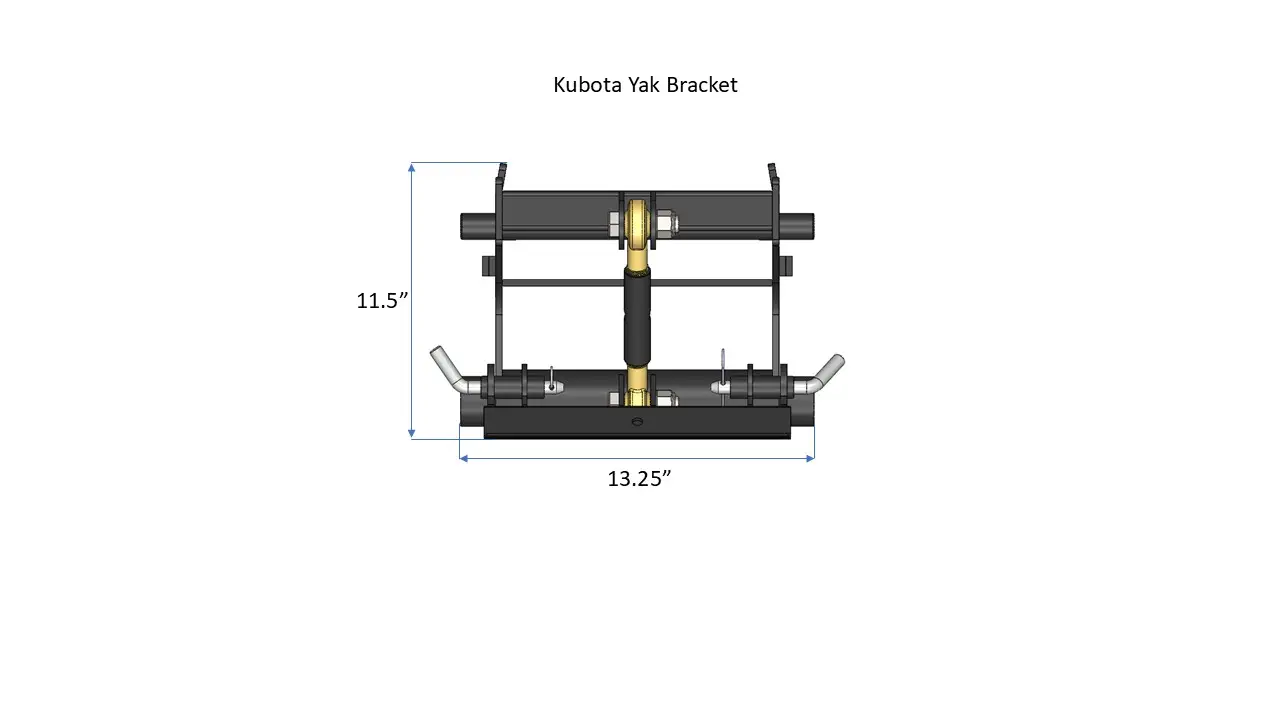

| Dimensions | 16 × 16 × 14 in |
| SKU | KYB |
So this is the mid bracket for the Kubota-to-Yak system. This comes off the front of the Kubota snow plow and then just pins into the bracket that’s on the back of the Yak, so you can leave that on the Yak magnet. Then you’ve got your Kubota snowplow system here that will just key into those lugs on the bracket for the Yak. So the snowplow mount will just key into these lugs, and then you drop your pins on their system into our bracket and it’ll all fit together.
So when you’ve got your mid bracket onto the Yak magnet, because there’s a receiving bracket on the Yak and then there’s the mid mount that connects the Yak to the Kubota system, you can just use your lift arms on the Kubota to just drive into it and hook it up. So you see the lugs there on the front of the Yak get hooked into by this Kubota snowplow system. So with a little bit of assistance there, you just hit those lugs into the keys on the Kubota mount—the Kubota snowplow system—and then you just put the two pins that are on the Kubota snowplow mount. Just pop those two pins in and you’re connected.
It’s the disconnection of the new Kubota-to-Yak mounting bracket in front of the UTVs. Pull your two hands on the Kubota snowplow mount, drop down with your arms, and back out.
This accessory is designed to be used with the Yak 66 magnetic sweeper. This bracket allows the Yak to be attached to a Kubota UTV V5293 snowplow system quickly and easily. This grants the user hydraulic control over the height of the Yak magnet so it can be lifted out of the way if not being used. This bracket makes mounting a Yak to a UTV a very simple job with no fabrication required. See the video to see how the bracket joins a Yak magnetic sweeper to a Kubota snowplow system.
None at this time.

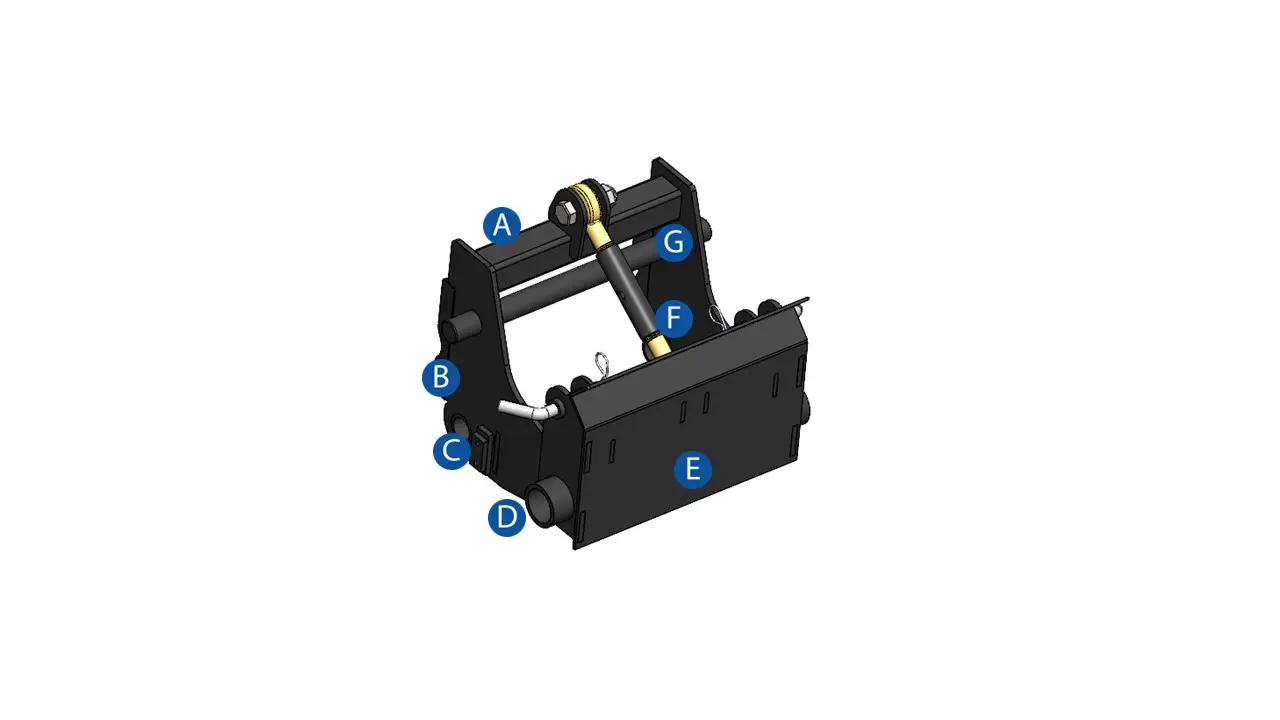

A: 1.5” square x 3/16” wall steel tubing
B: 1/4” thick steel end plates
C: ½” thick bump stop
D: 2.0” / 1.5” SCH. 80 Pipe on Pipe Pivot
E: 3/16” thick welded construction mount plate
F: M20 x 2.5 thread top link (for sweeper height adjustment)
G: 1” Solid steel pin
