Tractor Magnetic
Types of Tractor Magnetic Sweepers
Which Type of Tractor Magnet is Right For You? Tow Behind Magnets versus Hanging Magnets
Tow Behind Magnets
A tow behind magnet uses a ball type hitch or wagon style pin hitch. An optional pintle ring hitch is available on some tow behind magnets. These tow behind magnet trailers are as off road capable as the tractors that pull them. Designed for off road conditions on farms, construction sites, and equine facilities, etc. All tow behind magnets for tractors can accept an optional Debris Digging Rake accessory to turn over and loosen up embedded debris in the ground before the magnet passes over it and to make it easier for the magnet to pick up embedded debris.
Why Select a Tow Behind magnet? Tow behind magnets are the easiest to use, you just hook them up like any other trailer. It's quick and easy.
If you want a lot of magnet strength, we have several tow behind tractor magnets that are more powerful than the biggest hanging magnet we have.
Why You Might Not Want a Tow Behind magnet?
The first reason is that you’re towing the magnet and therefore running over all of the debris before you pick it up.
The second reason is that they tend to be more expensive because you're paying for the frame and wheels etc. and not just the magnet.
Hanging Magnets
Hanging magnets are hung from the front, rear or mid mounted underneath of the tractor. All of the hanging magnets selected here are capable of off road conditions with slightly varying features to suit both different tractor and environmental needs.
Why Select a Hanging Magnet? The first reason is that they give you a lot of mounting location options. You can hang them in front of the tractor so that you don’t drive over the debris before picking it up, which is really important if you have debris that can cause flat tires. You can hang them in the middle of the tractor and leave it there out of the way so that it’s always working. You can hang it on the back also if you want to take advantage of the 3 point hitch on the tractor.
The second reason is that hanging magnets are usually cheaper because you’re essentially only paying for the magnet and not much more.
Why You Might Not Want a Hanging Magnet?
Hanging magnets can require you to think through and possibly rig up some hanging points if they don’t exist on your tractor where you want to hang the magnet.
Durability, Power & Easy Clean Off System. This thing is built like a tank!
Previous
Next
The Yacare magnetic sweeper is a powerful off road tow behind magnetic sweeper with a Spring Assisted Debris Release System that makes cleaning off the magnet easy. Even when the magnet is heavily loaded with metal debris, cleaning it off can be done in seconds without much effort or bending over.
The Yacare's 72" wide sweeping width fits smaller tractors perfectly.
The Yacare magnetic sweeper is built to stand up to rough off road conditions with solid steel construction, protective steel lid that encloses the magnet, height adjustability, “Wrap Around” feature and inset 13″ x 6.5″ flat proof Carlisle ball bearing wheels.
This thing is built like a tank. Check out the CAD drawings.
Get prices, specs, photos, videos, reviews and more...
Power & Durability in an 82 inch width. Similar to the Yacare Only Bigger!
Previous
Next

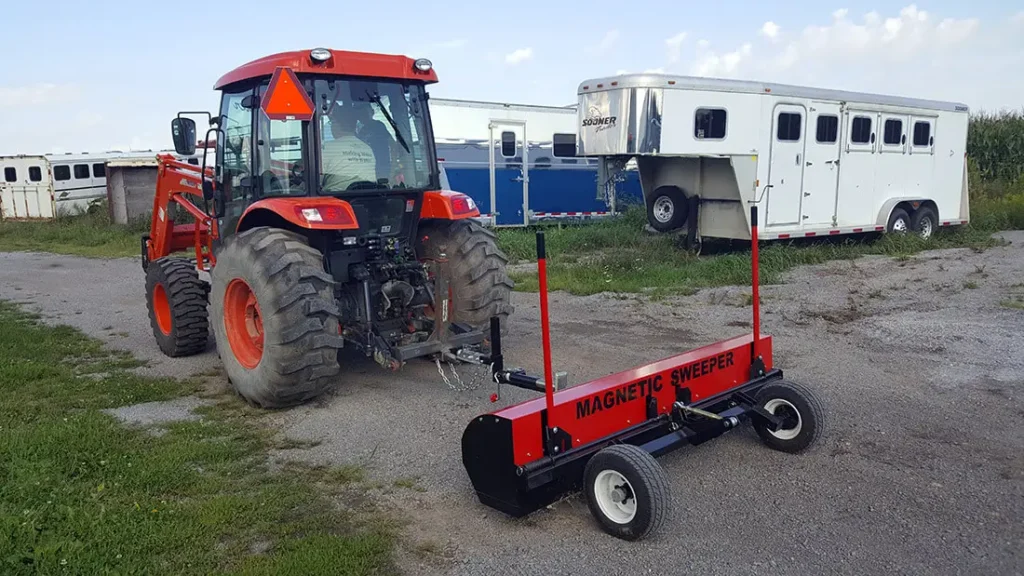

The Caiman magnetic sweeper is one step up from the Yacare magnetic sweeper. Like the Yacare, the Caiman magnets are protected and enclosed. The Caiman also has the Dual Spring Assisted Debris Release Handles for easily remove the debris from the magnets.
However, the Caiman is wider at 82 inches and it has more power with 50% more magnets than the Yacare.
With more power and a wider sweeping width, the Caiman is a solid choice for towing behind larger tractors.
The Caiman also has solid pick up performance in off road conditions where tractors often travel. The performance is provided by the "Wrap Around" design, the adjustable sweep height, flat proof tires, adjustable hitch height and optional debris digging rake accessory.
Check out the Caiman CAD drawings for details.
Get prices, specs, photos, videos, reviews and more...
Fully Enclosed Automatic Tow Behind magnet. Clean Off with a Push of a Button!
Previous
Next
The Aardvark Magnetic Sweeper is designed for landfills, construction sites, mining sites and off road applications where the terrain may be rough. It can easily be towed behind tractors of various sizes.
The magnet housing is fully enclosed offering a level of protection around the magnet. This means you don’t have to worry about metal getting all over the magnet.
This unit is packed with all the standard off road features such as sweeping height control and inset wheels, but it also features an automatic clean off system which makes cleaning off debris from the sweeper easy and automatic.
Get prices, specs, photos, videos, reviews and more...
Designed to Take a Hit! Wrapped in A Protective Cage!
Previous
Next
$1,899.99 USD – $3,199.99 USDSelect options
(all prices in USD)
Available in 6 sizes: Remoras 38″, Remoras 50″, Remoras 62″, Remoras 74″, Remoras 86″, Remoras 98″
The Remoras magnet is an “all terrain” hanging magnet that you can attach to tractors you already use and own. This magnet is specifically designed to withstand frequent ground hits while picking up metal debris from uneven and rough surfaces with potholes and ruts.
A protective cage protects the magnetic housing from hitting the ground when your vehicle travels over uneven, rough terrain.
Magnets of this type are very useful if there are severe ruts in industrial yards caused by constant use over the same path by heavy vehicles, such as is common in precast concrete yards, where concrete pieces are stored outside in rows or aisles and delivered and removed from those aisles by large heavy forklifts.
Get prices, specs, photos, videos, reviews and more...
A hanging magnet made for mid mounting under tractors operating in dirt and gravel commercial manufacturing facilities roads and yards.
Previous
Next
$799.99 USD – $1,999.99 USDSelect options
(all prices in USD)
Available in 6 sweeping widths: 38″, 50″, 62″, 74″, 86″, 98″
With 10” inch x 3” inch wide flat proof Bumper wheels.
The EIGER was designed for those slightly more off-road surfaces with more uneven surfaces such as dirt and gravel where potholes and bumps exist.
Designed with wide wheels to stay on top of those surfaces, and also designed with a greater minimum sweeping height of 2.5”inches to prevent the sweeper from hitting the ground.
Comes standard with black PVC Quick Clean Off Sleeve for easy debris removal, and 4 hanging chains with 8 quick clips to hang the EIGER from your vehicle.
Get prices, specs, photos, videos, reviews and more...
For extra ground strike protection! With wheeled outriggers and bump wheels for Off Road use.
Previous
Next
$2,399.99 USD – $2,699.99 USDSelect options
(all prices in USD)
Available in 4 sizes: AETHER 62”, AETHER 74”, AETHER 86”, AETHER 98”
The AETHER tractor magnet was designed for those off road dirt and gravel and grass environments where you need a magnet and want to mount it to your tractor but more ground strike prevention is needed to protect the magnet than the EIGER provides, but less ground strike prevention is needed than the REMORAS provides.
The 10” x 3” flat proof bump wheels on the ends prevent the magnet from hitting the ground and from sinking into loose surfaces, and the wheeled outriggers provide additional ground strike prevention in the middle of the magnet’s overall length.
Maximum lifting height of 9” inches (using a 2 ½ inch nail). Measuring Magnetic Sweeper pickup power and performance.
Comes standard with a black PVC Quick Clean Off Sleeve for quick and easy debris removal. Also includes 6 stabilizing chains with 12 quick clips to the AETHER from your vehicle
Get prices, specs, photos, videos, reviews and more...
Off Road Hanging Magnet Designed to be raised or lowered, as needed.
Previous
Next
$2,099.99 USD – $2,549.99 USDSelect options
(all prices in USD)
Available in 4 sizes: 62”, 74”, 86”, 98”
The KHAMSIN hanging magnet was designed for more “off road” applications such as gravel, sand, and dirt roads and yards, or grass covered areas. Ideal for rural roads or gravel roadsides. Ideal for gravel parking lots and driveways.
The Khamsin design allows you to leave the magnet permanently mounted, enabling you to lower and deploy the magnet for use when needed, and then easily raise and secure it when not needed or for transport between locations.
Larger 10” x 3” flat proof bump wheels keep the magnet from hitting the ground or sinking into softer ground surfaces.
The Khamsin has a slightly higher minimum sweeping height of 2.5” inches compared to the ISO’s minimum sweeping height of 1.75” inches, in order to operate more effectively in off road applications.
A Quick Clean Off Sleeve comes standard for quick and easy debris removal.
Get prices, specs, photos, videos, reviews and more...
Simple, Basic, Strong. An economical choice for a magnet that can pick up from greater heights.
Previous
Next
$809.99 USD – $2,569.99 USDSelect options
(all prices in USD)
Available in 15 widths: 14″, 20″, 26″ 32″, 38″, 44″, 50″, 56″, 62″, 68″, 74″, 80″, 86″, 92″, 98″
The GOBIE hanging magnet was designed to be strong yet economical.
The two 4.5”x4.5” housings placed side by side create a magnet that can “reach” further downward, able to pickup debris from greater heights.
Maximum lifting height of 11” inches (using a 2 ½ inch nail). Gauss measurements are also provided at different distances for this magnet. Measuring Magnetic Sweeper pickup power and performance
The Gobie can hang from almost any piece of equipment as long as it doesn’t hit the ground all the time.
Comes in 15 different sizes (widths) from 14” inches to 98” inches, in 6” inch increments.
Includes 4 hanging chains with 8 quick clips to hang the GOBIE.
Get prices, specs, photos, videos, reviews and more...
Remote – Controlled Clean off & Height Adjustment!
Previous
Next
Built to Retrieve Ball Milling Steel Abrasive Material
The Mammoth magnetic sweeper is built to clear big spaces quickly, the powerful 12” x 12” x 68” alternating pole C8 magnetic assembly can hold huge amounts of metallic debris before needing to be cleaned off and can pick up a 2.5” nail from 16” off the ground. The Mammoth can retrieve the even the most elusive debris types including the nickel/steel balls used in material processing from within its 2” – 7” sweeping range.
Height adjustment and clean off is just as heavy duty as the magnetic power, these functions can be controlled from the tow vehicle using a wireless remote that activates the 12v 3000psi hydraulic system that controls magnet position and trailer height.
Comes standard with lights & fenders, on-board battery charger, and pintle ring hitch. Debris digging rake and grader attachments are optional accessories that extend the function of the Mammoth to grooming roads and industrial yards with gravel or packed surfaces.
Check out the Product Demo Videos to see the Mammoth in action in different applications.
Get prices, specs, photos, videos, reviews and more...
Quick Tips
What do the staff of Bluestreak have to say on the subject of tractor magnets?
Whatever type of tractor magnet you think will work best in your situation, make sure you err on the side of getting a bigger stronger one because tractors don’t really have any weight restrictions that would prevent getting a bigger one, and bigger stronger magnets will work best in the off-road type of environments that tractors work in where it’s necessary to pickup debris through grass and dirt.
Brian - Bluestreak Equipment
Shipping Costs & Methods
Shipping Options
Shipping options and charges available at checkout.
Real-Time Shipping Rates
Shipping rates are calculated by connecting directly to shipping carriers, giving you real time shipping quotes when you order online.
International Shipping
Some international orders outside North America may require a freight quote on checkout before the order can be completed.
Payment Methods
Full line of magnetic sweeper products. All items in stock. Shop Online and Pay by Visa, Visa Debit, Mastercard, American Express, Discover, Diners Club, JCB, PayPal or Pay by Cheque or EFT / Wire Transfer.
Know what you need for your next project?
7 Things to Consider When Selecting a Tractor Magnetic Sweeper
The Clean Off System
A magnet may work really well at picking up debris, but how easy is it to clean off? This is where your magnet choice can go off the rails. Think through how you would clean the magnet off step by step. Make sure it makes sense to you and your situation. We try and do this for you so that clean off isn’t a difficult or time-consuming task, but some manufacturers don’t. Pay attention to the details of how this will work from start to finish, right up to the point of getting the debris in the garbage or scrap bin. For instance, at Bluestreak we believe we have the best hanging magnet clean off system which is the Quick Clean Off Sleeve. And the reason for this is that hanging magnets are always hung under something, and the Quick Clean Off Sleeve allows you to clean a hanging magnet off while it is hung under a piece of equipment. The Quick Clean Off Sleeve allows you to pull the sleeve off and have all the debris fall off on the side that your pulling the sleeve off from without crawling under the piece of equipment to clean the magnet off. No one else really has an effective clean off system. Many companies use “kick down plates” or “hinged trays” on the bottom of the magnet, that are hinged on the magnet on one side, but these don’t work if the magnet is hung under a piece of equipment at a height where it can pick up debris. If you tried to swing the hinged tray downward to clean the magnet off the debris would still be at a height where the magnet would still want to pick it up and all the debris would still be under the middle of the tractor not at the side where it’s easy to pickup. Therefore, kick down plates or hinged tray clean off systems only work if you can lift the magnet up to clean it off such as when these types of magnets are used with a forklift to pick them up and dump them over a dumpster. The Bluestreak Quick Clean Off Sleeve is still the best clean off mechanism for hanging magnets.
The Danger Posed by the Debris
If you have an extensive debris problem that will almost certainly cause a flat tire if you run over the debris, then a front mounted hanging magnetic sweeper is a necessity and may be the only consideration in your choice of magnet. A front mounted hanging magnetic sweeper will pick up debris like nails before you run over it, something that seems obviously and practically much better than running over the debris before picking it up.
Securing The Debris
You are not going to be cleaning your magnet off constantly, so it’s important that when your magnet does pick up a nail or screw that the magnet secures the debris so that it won’t fall off if the magnet is suddenly shaken because of a bump or if the bottom of the magnet hits the ground and the debris is wiped backward on the magnet. The last thing you want is for the debris you just picked up to fall off again. Make sure your magnet has some feature like our “Wrap Around Feature”, it not only makes sure debris doesn’t get wiped off the bottom of the magnet, it makes the debris holding capacity higher and you’ll find in practice that most of your debris ends up on the side or back of your magnet not the bottom of it. And that’s a good indication to you why we have this feature.
Cost
Hanging magnets are the most cost effective because a hanging magnet is essentially just a big magnet bar without most of the other mechanisms that accompany a tow behind magnet.
Are You Able to Leave The Magnet Mounted?
Given the other tasks the tractor is used for. Are you able to leave a magnet on the tractor all the time? If not, then the tow behind solution may be best for you because it can be easily and quickly be hitched up when needed. A hanging magnet will be a bit more involved and take more time to mount and demount from the tractor when you want to. On the other hand, if you can mount a magnet permanently on your tractor, it’s going to work for you all the time while you’re driving around and it saves you the time of temporarily mounting and demounting it. Therefore, if you can leave a magnet mounted, a permanently mounted solution is usually better.
The Terrain and Conditions Your Tractor Operates In?
The rougher, dirtier terrain your tractor operates in, the stronger the magnet your likely going to want because the magnet will have to be set higher to avoid constantly hitting the ground. The magnet will also need to pick up debris through some dirt, therefore, you need a stronger magnet. The rougher the terrain that exists because of things like bumps and pot holes the more you will want or favor a magnet that has some protection built in to the design to either deal with the abuse of hitting the ground or being able to move out of the way when it does hit the ground in order to prevent damage.
The Magnet Strength
We want to make sure our products meet your expectations. Therefore, make sure you take a look at our “maximum lifting distance” specification for each magnetic sweeper (see lifting distance of tractor magnet selection here). We bench test every one of magnetic sweeper models to determine their maximum lifting distance of a two-and-a-half-inch standard nail. Everyone knows what a two-and-a-half-inch nail looks like which is why we use this standard measure of magnet strength and it will give you a very good idea of magnet performance. Many times, we have videos of our products picking up various other materials so take a look at the videos in the video galleries. They give you a chance to “kick the tires” and see how the products perform. Many of these videos have been submitted by previous customers.
The Maximum Lifting Distance of Tractor Magnets;
Yacare | 9 and 3/4 inches
Caiman | 10 and 1/2 inches
Aardvark | 12 inches
Remoras | 8 and 1/2 inches
Eiger | 9 and 1/4 inches
Aether | 9 inches
Khamsin | 9 inches
Gobie | 11 inches
Mammoth | 16 inches
For more information on Pickup Power follow this link: “Measuring Pickup Power and Performance in Magnetic Sweepers”
| Product | Max Lift Height | Weight | Widths | Height Adj. | Wheel Type | Clean-off Method | Terrain Surface | Pricing | Purchase |
|---|---|---|---|---|---|---|---|---|---|
|
Yacare |
9 3/4" | 511.4 lbs | 72" | 2" to 6" Continuous Adjustment | 13" x 6.5" flat proof, ball bearing tires | Spring Assisted Dual Debris Release Handles | All Terrain | $6,499.99 USDSelect options |
|
|
Caiman |
10 1/2" | 884 lbs | 82" | 2" to 6" Continuous Adjustment | 16.5" x 6.5" flat proof, hub and spindle wheels | Spring Assisted Dual Debris Release Handles | All Terrain | $9,899.99 USDSelect options |
|
|
Aardvark |
12" | 1056 lbs | 96" | 1.5" to 6" Continuous Adjustment | 16.5" x 6.5" flat proof, hub and spindle wheels | Automatic | All Terrain | $11,999.99 USDSelect options |
|
| Remoras |
8 1/2" | 155lbs, 204 lbs, 251lbs, 296lbs, 244lbs, 389lbs | 38", 50", 62", 74", 86", 98" | Change suspension height by rising or lowering the chains to a specified maximum height of. 5" | None | Comes standard with a Quick Clean Off Sleeve accessory | All Terrain | $1,899.99 USD – $3,199.99 USDSelect options |
|
| Eiger |
9.25" | 124lbs, 158lbs, 192lbs, 226lbs, 259lbs, 292lbs | 38", 50", 62", 74", 86", 98" | Yes – by changing mounting height. | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 100kg (220 lbs) capacity each | Quick Clean Off Sleeve comes standard. | All Terrain | $799.99 USD – $1,999.99 USDSelect options |
|
|
Aether
|
9" | 230 lbs, 264 lbs, 297 lbs, 330 lbs | 62", 74", 86", 98" | Yes, by changing hanging height. Minimum 2.5“ recommended hanging height 3” to 5“ maximum. | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 100kg (220 lbs) capacity each | Comes standard with a Quick Clean Off Sleeve. | All Terrain | $2,399.99 USD – $2,699.99 USDSelect options |
|
| Khamsin |
9" | 191 lbs, 225 lbs, 258 lbs, 291 lbs | 62", 74", 86", 98" | Yes, minimum 2.5" with wheel on the ground, 3" recommended, 5" inch maximum | 10” x 3” Foam Filled flat proof bump wheels with steel hubs and 5/8” ball bearings rated at 100 kg (220 lbs) capacity each | Comes standard with a Quick Clean Off Sleeve | All Terrain | $2,099.99 USD – $2,549.99 USDSelect options |
|
|
Gobie |
11" | 90 lbs, 120 lbs, 152 lbs, 182 lbs, 216 lbs, 246 lbs, 278 lbs, 308 lbs, 342 lbs, 372 lbs, 404 lbs, 434 lbs, 468 lbs, 498 lbs, 530 lbs | 14", 20", 26" 32", 38", 44", 50", 56", 62", 68", 74", 80", 86", 92", 98" | Yes, by changing hanging height. | None | Wipe clean with glove or rag. | Flat Surfaces | $809.99 USD – $2,569.99 USDSelect options |
|
|
Mammoth |
16" | 3500 lbs | 68" | 2”-7” Using On-board Hydraulics and Adjustable Height Stops | 10 ply (3520lbs each) rated highway trailemr tires | Hydraulic | All Terrain | $40,375.00 USDSelect options |
Tractor Magnetic Sweepers Designed for "Off Road" Conditions.
Tractor Magnet Options
We offer a number of different Tractor Magnet options because tractors come in many different sizes from small to large.
In addition, tractors are utilized in many different environments from relatively flat benign conditions such as facility and lawn maintenance activities to rough construction sites and farm type conditions.
Therefore, our Tractor Magnet selection are magnets best designed to accommodate tractors of varying sizes and to accommodate operating environments of varying harshness.

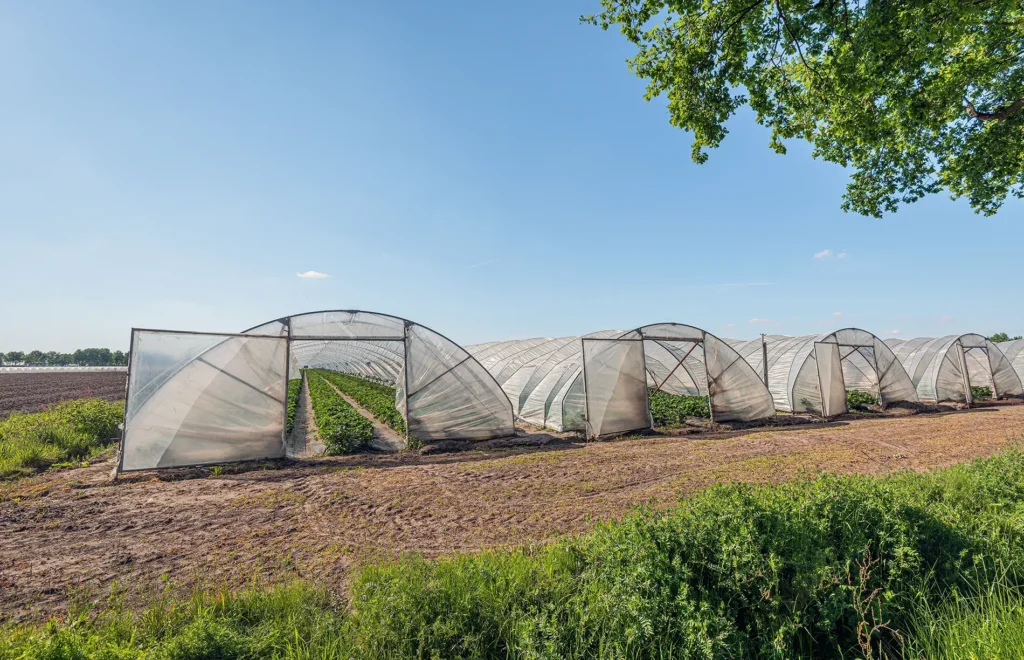

At Greenhouse Locations
Many times, tractors of various sizes are used in quasi-agricultural, commercial industrial applications. One such example is in greenhouse applications. Greenhouses are agricultural but also commercial industrial in nature, highly mechanized, large outdoor areas, and covered areas, with lots of racks, pallets and equipment. Many greenhouses also do substantial boxing or casing of plants for shipment. One source of debris are the large staples that hold the boxes/cases together. Stray staples from the boxing and casing activities can cause flats on tractors and other vehicles that move orders and supplies around the facility. Therefore, some facilities permanently mount a hanging magnet under the tractor between the front and back wheels on several of the tractors in their fleet to constantly sweep the entire facility for flat causing debris and just metal debris in general.
Manufacturing In-House
All of our products are designed and manufactured on site at our facilities in Ontario, Canada.
Application-Driven Design
We have manufactured and developed application driven magnetic products since 2005.
Working from Rural Roots
Working from rural southern Ontario, our business has grown and now sprawls over several properties using former agricultural buildings.
Made In Canada
All products proudly designed and manufactured in Canada
(since 2005).
No Border Issues
We handle U.S. customs clearance so you don’t have to.
Pay only the charges identified at checkout.
All Items In Stock
All products are stocked for quick shipping and delivery.
