The Wrasse Hanging Magnetic Bar Sweeper is an extremely versatile magnetic bar and good for many applications where the terrain is flat. The Wrasse can be hung from almost any piece of equipment from utility vehicles to forklifts allowing the equipment operators to clean environments and pick up metal debris while they do their normal tasks.
While competing hanging magnet bars usually offer the 2″×5″ size, Bluestreak also offers two bigger, more powerful sizes of the Wrasse, the 3″×3″ and the 4.5″×4.5″ to allow even higher hanging heights if necessary and better performance.
And thanks to the optional Quick Clean Off Sleeve accessory for the Wrasse 3″x3″ and 4.5″×4.5″ model, it’s possible to clean the Wrasse Hanging Magnetic Bar Sweeper off quickly and easily while the magnet is still in its hanging position underneath a piece of equipment.
Price range: $495.99 through $1,597.99
See Pricing For All Models Below
$495.99 USD
$549.99 USD
$625.99 USD
$709.99 USD
$776.99 USD
$839.99 USD
$906.99 USD
$517.99 USD
$603.99 USD
$679.99 USD
$787.99 USD
$873.99 USD
$949.99 USD
$1,035.99 USD
$679.99 USD
$808.99 USD
$949.99 USD
$1,197.99 USD
$1,338.99 USD
$1,478.99 USD
$1,597.99 USD
| Wrasse Series (2″ x 5″) | Wrasse 26 | Wrasse 38 | Wrasse 50 | Wrasse 62 | Wrasse 74 | Wrasse 86 | Wrasse 98 |
|---|---|---|---|---|---|---|---|
| SKU | W26/2 | W38/2 | W50/2 | W62/2 | W74/2 | W86/2 | W98/2 |
| Sweeper Width | 26″ | 38″ | 50″ | 62″ | 74″ | 86″ | 98″ |
| Ground Clearance | 1″ to 3″ suspension | 1″ to 3″ suspension | 1″ to 3″ suspension | 1″ to 3″ suspension | 1″ to 3″ suspension | 1″ to 3″ suspension | 1″ to 3″ suspension |
| Cleaning Method | Wipe clean with glove or rag. | Wipe clean with glove or rag. | Wipe clean with glove or rag. | Wipe clean with glove or rag. | Wipe clean with glove or rag. | Wipe clean with glove or rag. | Wipe clean with glove or rag. |
| Height Adjustability | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ | Change suspension height to a maximum of 3″ |
| Housing Construction | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls |
| Wheels | None | None | None | None | None | None | None |
| Magnetic Surface Area | 96″ (4″ x 24″) | 144″ (4″ x 36″) | 192″ (4″ x 48″) | 240″ (4″ x 60″) | 288″ (4″ x 72″) | 336″ (4″ x 84″) | 384″ (4″ x 96″) |
| Maximum Lifting Height (using 2.5″, 8 penny nails) | 4.75 inches | 4.75 inches | 4.75 inches | 4.75 inches | 4.75 inches | 4.75 inches | 4.75 inches |
| Total Sweeper Weight | 24 lbs | 35 lbs | 47 lbs | 58 lbs | 70 lbs | 81 lbs | 93 lbs |
| Total Shipping Weight | 26 lbs | 38 lbs | 50 lbs | 62 lbs | 74 lbs | 86 lbs | 98 lbs |
| Shipping Dimensions | 28″L x 7″W x 4″H | 40″L x 7″W x 4″H | 52″L x 7″W x 4″H | 64″L x 7″W x 4″H | 76″L x 7″W x 4″H | 88″L x 7″W x 4″H | 100″L x 7″W x 4″H |
| Accessories | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. |
| Maintenance | None | None | None | None | None | None | None |
| Pricing Range | $495.99 USD | $549.99 USD | $625.99 USD | $709.99 USD | $776.99 USD | $839.99 USD | $906.99 USD |
| Wrasse Series (3″ x 3″) | Wrasse 26 | Wrasse 38 | Wrasse 50 | Wrasse 62 | Wrasse 74 | Wrasse 86 | Wrasse 98 |
|---|---|---|---|---|---|---|---|
| SKU | W26/3 | W38/3 | W50/3 | W62/3 | W74/3 | W86/3 | W98/3 |
| Sweeper Width | 26″ | 38″ | 50″ | 62″ | 74″ | 86″ | 98″ |
| Ground Clearance | 1″ to 4″ suspension | 1″ to 4″ suspension | 1″ to 4″ suspension | 1″ to 4″ suspension | 1″ to 4″ suspension | 1″ to 4″ suspension | 1″ to 4″ suspension |
| Cleaning Method | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. |
| Height Adjustability | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ | Change suspension height to a maximum of 4″ |
| Housing Construction | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls |
| Wheels | None | None | None | None | None | None | None |
| Magnetic Surface Area | 60″ (2.5″ x 24″) | 90″ (2.5″ x 36″) | 120″ (2.5″ x 48″) | 150″ (2.5″ x 60″) | 180″ (2.5″ x 72″) | 210″ (2.5″ x 84″) | 240″ (2.5″ x 96″) |
| Maximum Lifting Height (using 2.5″, 8 penny nails) | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches | 6 inches |
| Total Sweeper Weight | 28 lbs | 40 lbs | 53 lbs | 65 lbs | 77 lbs | 89 lbs | 102 lbs |
| Total Shipping Weight | 28 lbs | 42 lbs | 56 lbs | 71 lbs | 84 lbs | 92 lbs | 105 lbs |
| Shipping Dimensions | 29″L x 5″W x 5″H | 41″L x 5″W x 5″H | 53″L x 5″W x 5″H | 65″L x 5″W x 5″H | 77″L x 5″W x 5″H | 89″L x 5″W x 5″H | 101″L x 5″W x 5″H |
| Accessories | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. |
| Maintenance | None | None | None | None | None | None | None |
| Pricing Range | $517.99 USD | $603.99 USD | $679.99 USD | $787.99 USD | $873.99 USD | $949.99 USD | $949.99 USD |
| Wrasse Series (4.5″ x 4.5″) | Wrasse 26 | Wrasse 38 | Wrasse 50 | Wrasse 62 | Wrasse 74 | Wrasse 86 | Wrasse 98 |
|---|---|---|---|---|---|---|---|
| SKU | W26/4.5 | W38/4.5 | W50/4.5 | W62/4.5 | W74/4.5 | W86/4.5 | W98/4.5 |
| Sweeper Width | 26″ | 38″ | 50″ | 62″ | 74″ | 86″ | 98″ |
| Ground Clearance | 1″ to 5″ suspension | 1″ to 5″ suspension | 1″ to 5″ suspension | 1″ to 5″ suspension | 1″ to 5″ suspension | 1″ to 5″ suspension | 1″ to 5″ suspension |
| Cleaning Method | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. | Wipe clean with glove or rag. Optional Quick Clean Off Sleeve available. |
| Height Adjustability | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ | Change suspension height to a maximum of 5″ |
| Housing Construction | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls | Welded Aluminum 1/8″ walls |
| Wheels | None | None | None | None | None | None | None |
| Magnetic Surface Area | 96″ (4″ x 24″) | 144″ (4″ x 36″) | 192″ (4″ x 48″) | 240″ (4″ x 60″) | 288″ (4″ x 72″) | 336″ (4″ x 84″) | 384″ (4″ x 96″) |
| Maximum Lifting Height (using 2.5″, 8 penny nails) | 8.5 inches | 8.5 inches | 8.5 inches | 8.5 inches | 8.5 inches | 8.5 inches | 8.5 inches |
| Total Sweeper Weight | 65 lbs | 92.5 lbs | 120 lbs | 147.5 lbs | 175 lbs | 202.5 lbs | 230 lbs |
| Total Shipping Weight | 68 lbs | 96.5 lbs | 125.6 lbs | 176.3 lbs | 209.1 lbs | 241.5 lbs | 273.8 lbs |
| Shipping Dimensions | 30″L x 7″W x 7″H | 42″L x 7″W x 7″H | 54″L x 7″W x 7″H | 64″L x 10″W x 12″H | 76″L x 10″W x 12″H | 88″L x 10″W x 12″H | 100″L x 10″W x 12″H |
| Accessories | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. | Wrasse Fork Pockets Comes standard with a 2 Chain Hanging Kit. |
| Maintenance | None | None | None | None | None | None | None |
| Pricing Range | $679.99 USD | $808.99 USD | $949.99 USD | $1,197.99 USD | $1,338.99 USD | $1,478.99 USD | $1,597.99 USD |
Wrasse Magnetic Housing Sizes (Showing magnets packed in housing).
Note: On all models the remaining housing space above the magnet is used to accommodate a steel hanging plate and mounting hardware.

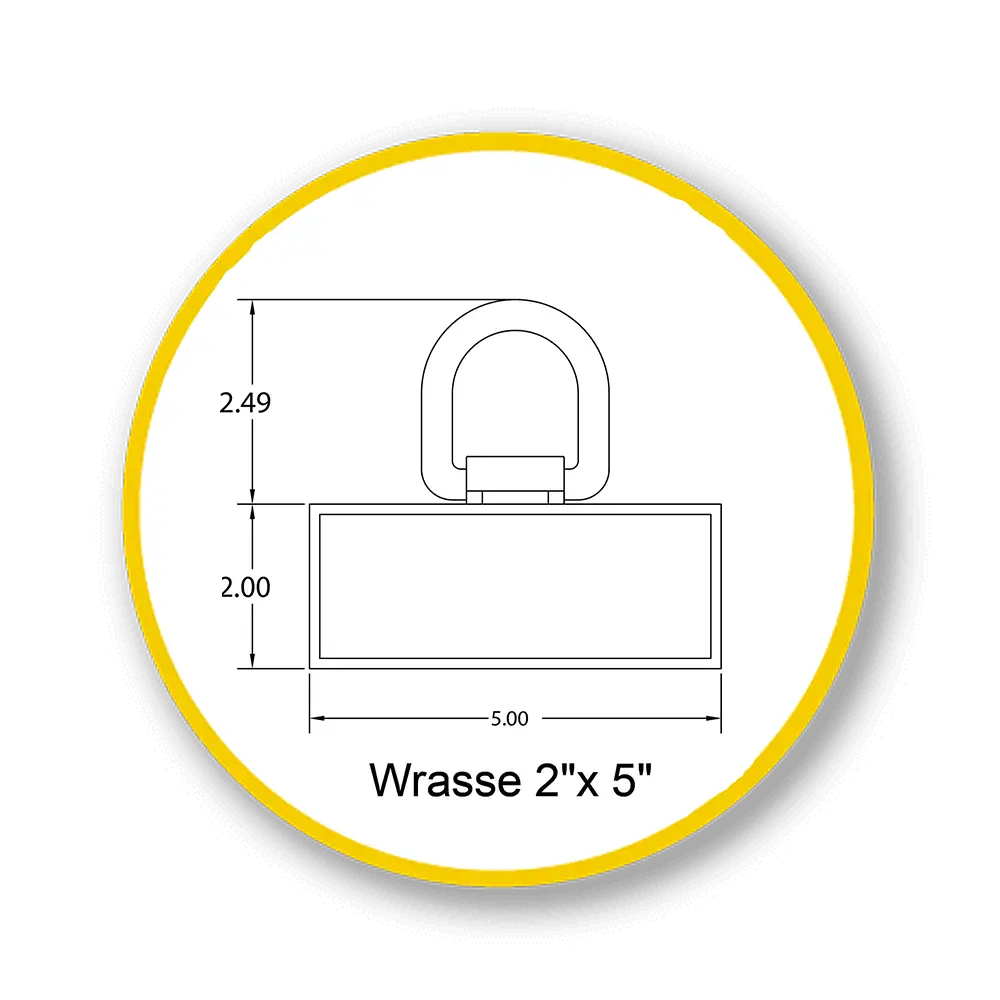

Wrasse 2 x 5
Wrasse 2 x 5

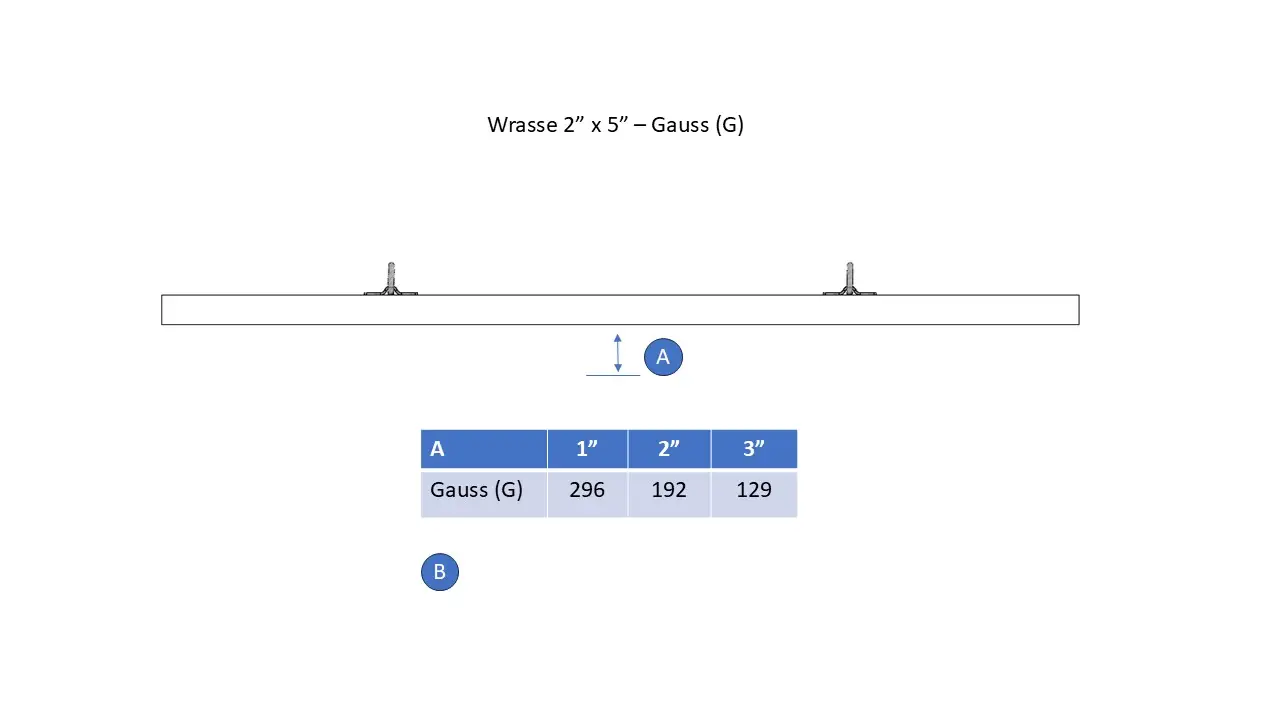

Wrasse 2 x 5 Gauss Measurements
A: Distance from Magnet (Sweeping Height)
B: Gauss (G) shown as the peak gauss measured in the center of the magnet at each distance.

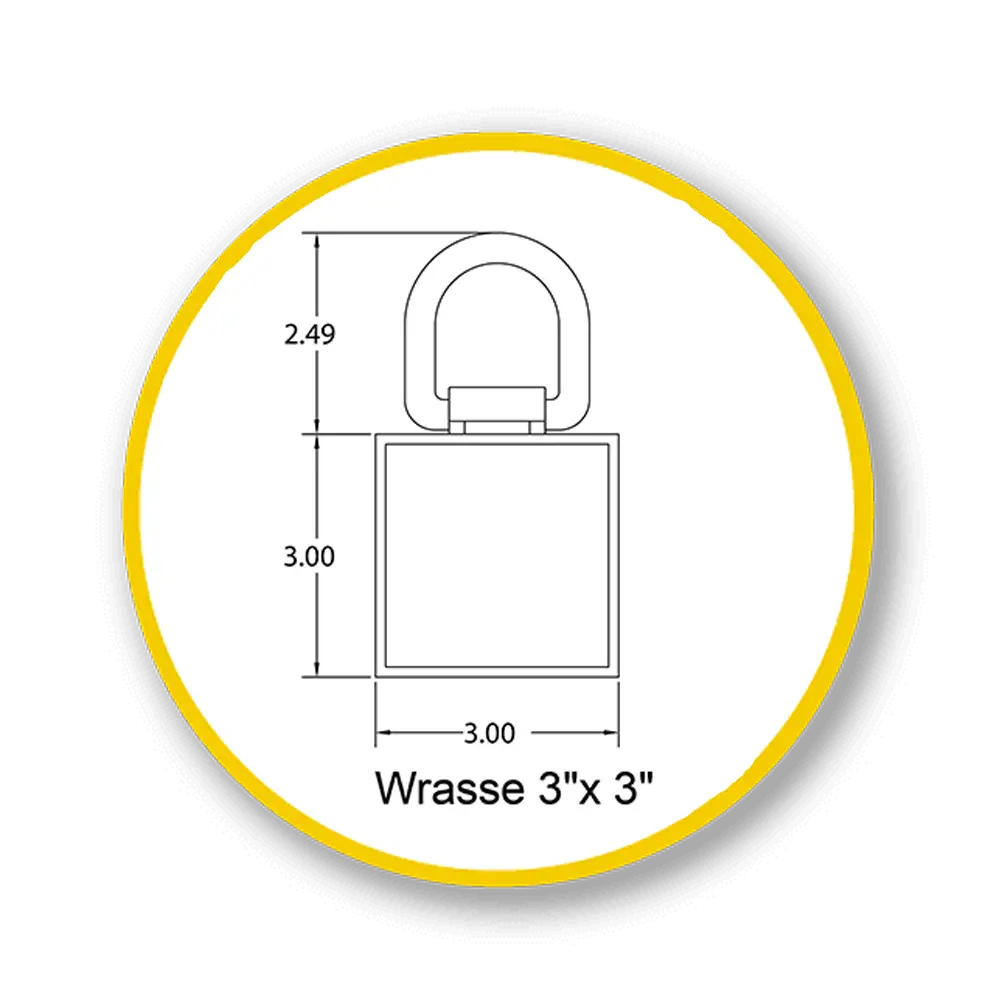

Wrasse 3 x 3
Wrasse 3 x 3

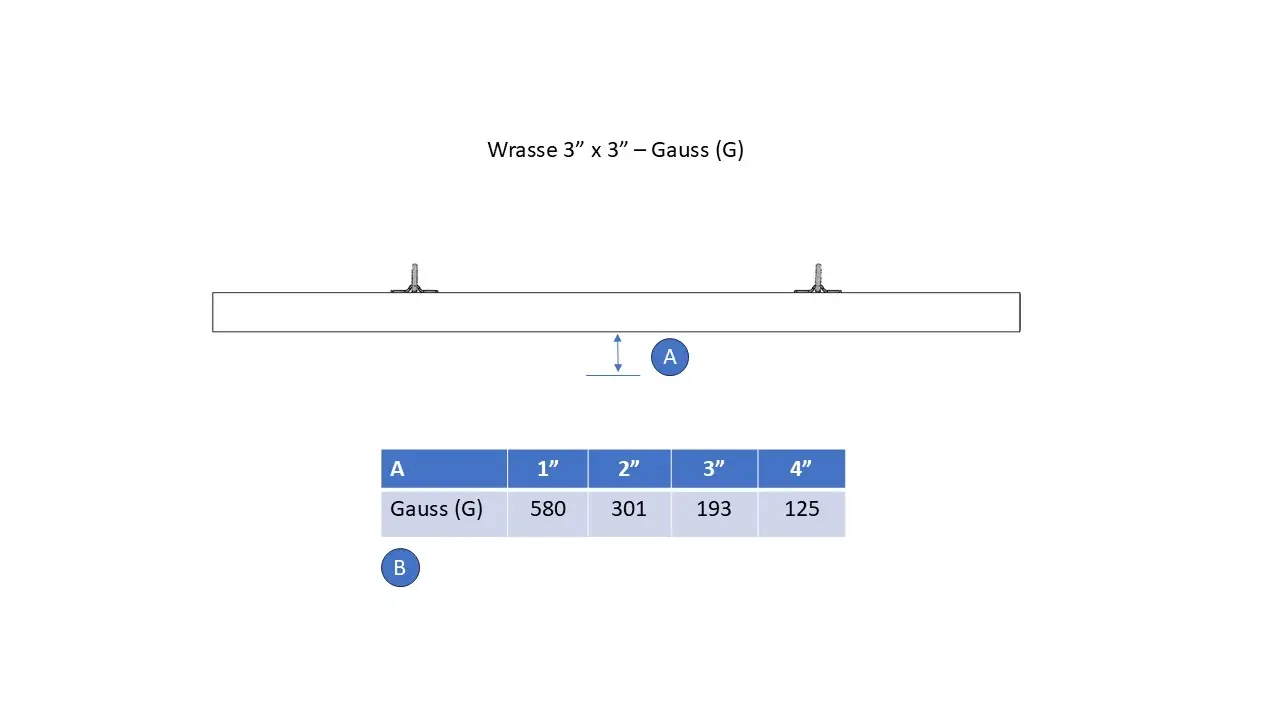

Wrasse 3 x 3 Gauss Measurements
A: Distance from Magnet (Sweeping Height)
B: Gauss (G) shown as the peak gauss measured in the center of the magnet at each distance

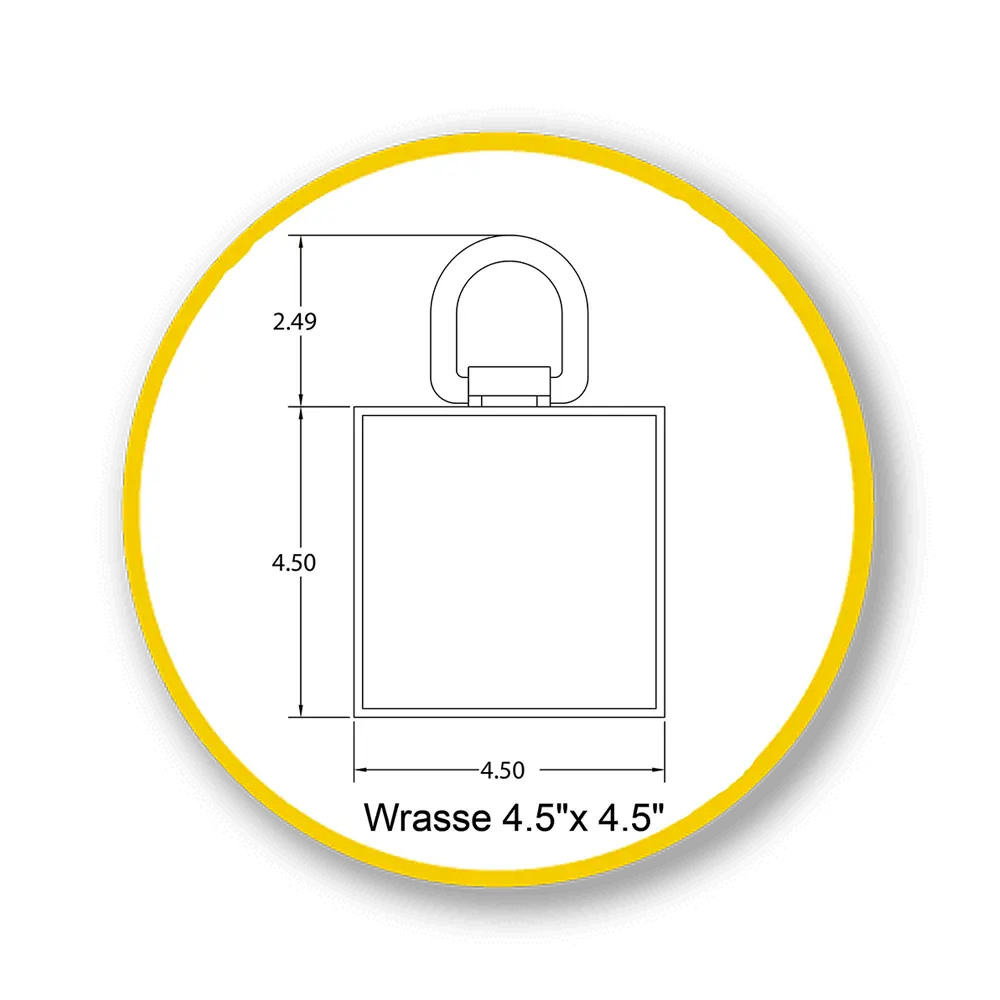

Wrasse 4.5 x 4.5
Wrasse 4.5 x 4.5

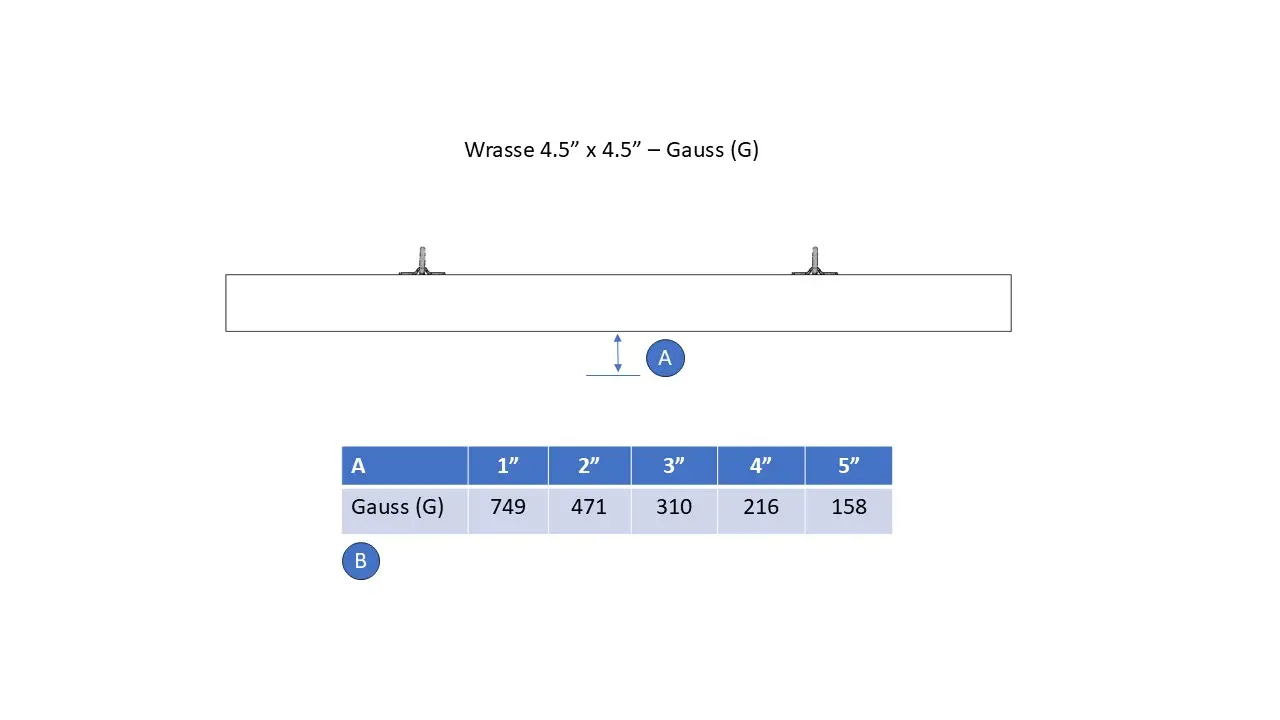

Wrasse 4.5 x 4.5 Gauss Measurements
A: Distance from Magnet (Sweeping Height)
B: Gauss (G) shown as the peak gauss measured in the center of the magnet at each distance
Wrasse Hanging Point Distances
| 5 star | 79% | |
| 4 star | 14% | |
| 3 star | 0% | |
| 2 star | 7% | |
| 1 star | 0% |

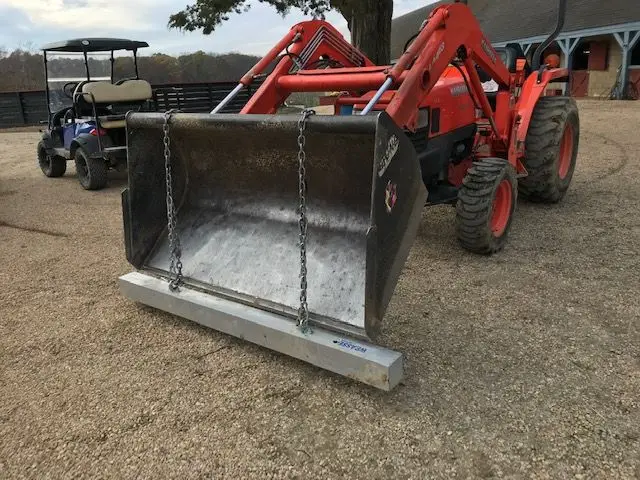

Customer Images
Price range: $150.99 through $376.99
$733.99
$884.99
The optional aluminum quick clean off sleeve is available for all 4.5” x 4.5” magnets in lengths of 62, 74”, 86” and 98”. These sleeves are far stronger than the PVC models (SEE DURABILITY TEST HERE) and protect the magnet assembly from impacts. PVC sleeves can also deform from the pressure of collected debris being pulled towards the magnet housing making them hard to pull off. The aluminum sleeves will not deform and the plastic rails on the inner corners of the sleeve allow for smooth operation. An extendable stainless-steel handle is also stored inside the sleeve to make removing the sleeve even easier. The aluminum quick clean off sleeve is a great solution for rough terrains and prevents having to buy a new PVC sleeve every time it cracks from hitting obstacles in rough conditions.
The Wrasse Hanging Magnetic Bar Sweeper is designed to easily attach to equipment and vehicles you already own and use so that you can remove ferrous objects from terrain such as gravel, sand, grass and pavement while you do other jobs. The magnet comes standard with 2 attachment chains.
“We are very pleased with the Magnetic Sweeper, it cleaned campsites and fire pits to the point that we noticed a big decline in flat tires on vehicles and mowers. Many campers bring fire wood with nails still in tacked. We had everything stuck to the magnet, beer caps, hinges, spikes, tent pegs.”
Nick D. – Wrasse 50
Backus Heritage Conservation Park
The Wrasse Hanging Magnetic Bar Sweeper is good for areas that are relatively flat such as a paved parking lot or if it’s gravel and dirt with only some small normal potholes you would normally find in a gravel driveway.
The Wrasse hanging magnet is versatile and provides great value. You basically only pay for a big bar magnet, not wheels, handles and frames and as a result they are great value for what you get, which is essentially just a big magnet, so you can afford to buy a really strong one.

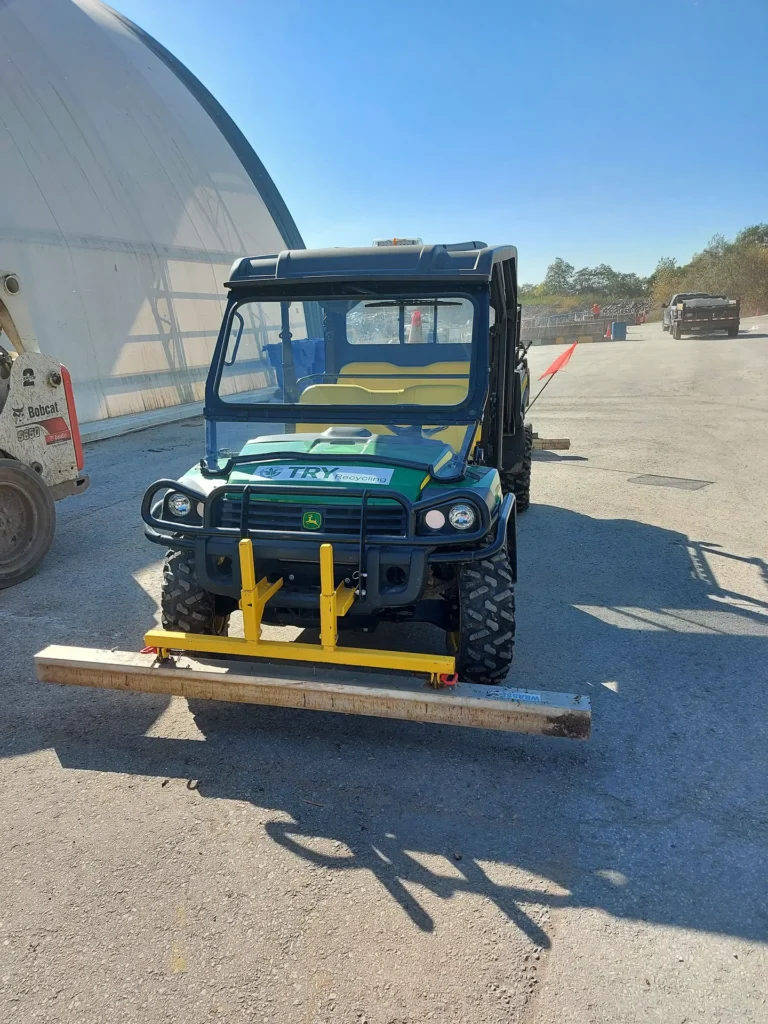

Once you hang the Wrasse on a vehicle it will work continuously while you go about doing your other work. So you don’t pay for extra labor time and money to just sweep up metal debris.
Because the Wrasse comes in a wide range of sizes that vary in both height, width and length, this magnetic bar can be hung from almost anything. You just look at your equipment for the best place to hang it. In most cases a place can be found to simply attach the magnet bar using the chains provided.
Some accessories are available for the Wrasse including a Quick Clean Off Sleeve for the Wrasse 3″x3″ and 4.5″x4.5″ and Fork Pockets that fit all sizes and widths.
Fit a Wrasse Hanging Magnetic Bar Sweeper to a wide range of equipment including:
“Today we put your Wrasse magnet to work and we are most pleased with its performance. My operator is very happy with the ease and simplicity of the design. Putting it on the forks takes only a minute with no tools required.”
Jerry S. Shannon. – Wrasse 74
S&S Structural Systems, Inc.
Magnetic Housing Sizes: 2″x 5″, 3″ x 3″ and 4.5″ x 4.5″
While competing hanging magnets are always in the 2″×5″ size range, Bluestreak always saw many of these magnets not performing well, not only because the magnets were spaced out in the housing, but just out of a necessity to hang these magnets higher to avoid damage. Bluestreak was already not spacing magnet blocks out within our housings, giving our 2″×5″ Wrasse more pickup power than competing 2″×5″ models. But Bluestreak also decided to offer two bigger more powerful sizes of the Wrasse, the 3″×3″ and the 4.5″×4.5″ to allow even higher hanging heights if necessary and better performance.
Magnetic Bar Lengths: 26″, 38″, 50″ , 62″, 74″, 86″ and 98″
The Wrasse Hanging Magnetic Bar Sweeper comes in lengths from 2 feet to 8 feet.
Optional Fork Pockets accessory make it easy to attach a Wrasse Hanging Magnetic Bar Sweeper to your forklift.
Optional extruded PVC Quick Clean Off Sleeve for removing debris from the sweeper. Clean off the Wrasse Hanging Magnetic Bar Sweeper while it is still in a hanging position underneath of your equipment, something that is not possible with a kick down plate design. If the debris is removed by using a kick down or toe plate then as soon as the plate is put back in its original position, the magnet would pick up all the debris again. Therefore a kick down plate never works for magnet clean off when the magnet is hanging, it only works if used with a forklift, where the forklift can pick the magnet up away from the ground. This Quick Clean Off Sleeve accessory is available for the Wrasse 3″x3″ and 4.5″ x 4.5″ sizes only.
See how to easily mount a hanging magnet to the front bumper or rear hitch of your truck using our optional hanging magnet brackets.
A: Hanging Bracket C
B: 2” Inch Reveiver Mount Bracket
If you have a 2” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of hanging magnet you choose), and the 2” inch Receiver Mount Bracket. These accessories are available for purchase and will be recommended accessories when you checkout.
A: Bumper Mount Bracket A
B: Hanging Bracket B
If you have a flat steel bumper on your commercial truck, you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of a hanging magnet you choose), and Bumper Mount Bracket A.
A: Push until holes line up
B: 2” inch receiver on truck
C: 2.5” inch to 2” inch steel receiver adaptor sleeve
If you have a 2.5” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available hanging brackets with the 2” inch receiver mount bracket and the 2.5” to 2” inch steel receiver adaptor sleeve accessory.
A: Hanging bracket D with easy height adjustment for hanging magnets with outrigger
Hanging Bracket D is compatible with the same magnets as Hanging Bracket C but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
A: Hanging Bracket E attaches to snowplow mount
B: Kubota snowplow mount for hanging bracket works with all Bluestreak hanging brackets
Hanging Bracket E is compatible with the same magnets as Hanging Bracket B (except Wrasse & Gobie) but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
Every Wrasse Hanging Magnetic Bar Sweeper is packed end to end un-spaced with permanently charged magnets. A metal backing plate is included inside the housing to increase the size of the magnetic field and direct it downwards to increase performance. Be very careful to not just look at the magnet housing size when shopping for a magnetic bar, like the 2″×5″, or 3″×3″ or 4.5″×4.5″, these are just the dimensions of the housing that hold the magnets. What really matters when comparing magnetic sweepers, is the magnets in the housing, their grade and their quantity and if they are spaced or not.
English (United States) English (United States)
English (Canada)
French
Magnet has a great pull to it and works as we hoped. So glad we purchased this product!
We equipped every shunter truck in our yard with it and we reduced flat tire a lot. Good product !
Completely satisfied with this magnet.
Works great, Stronger than expected

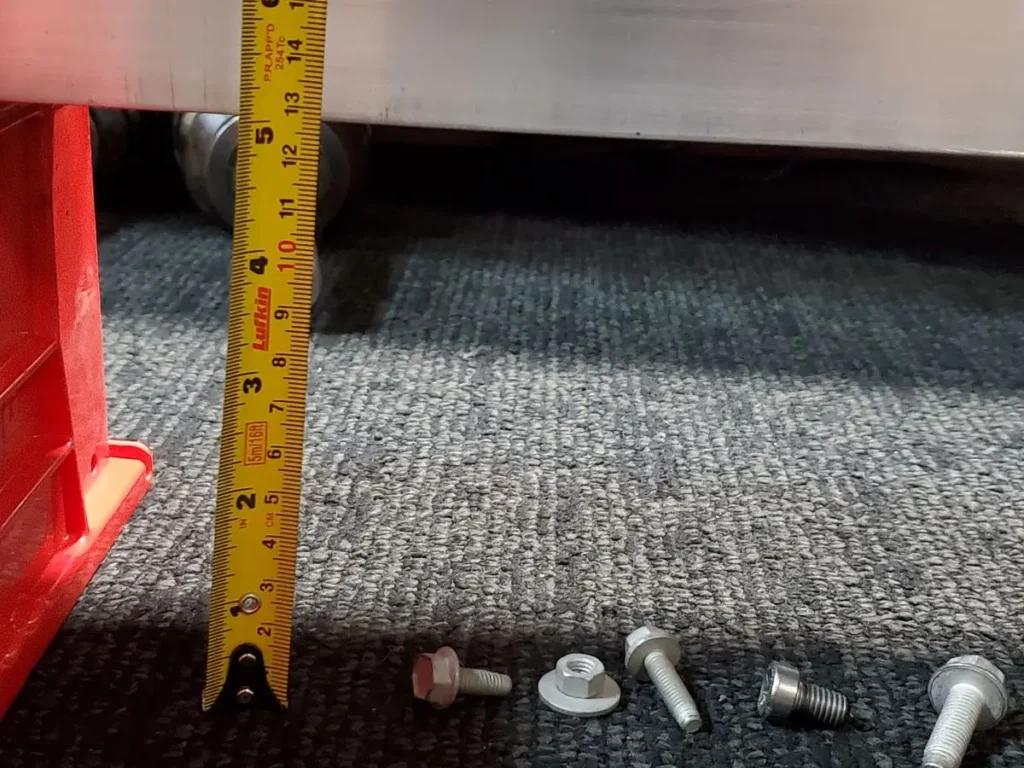

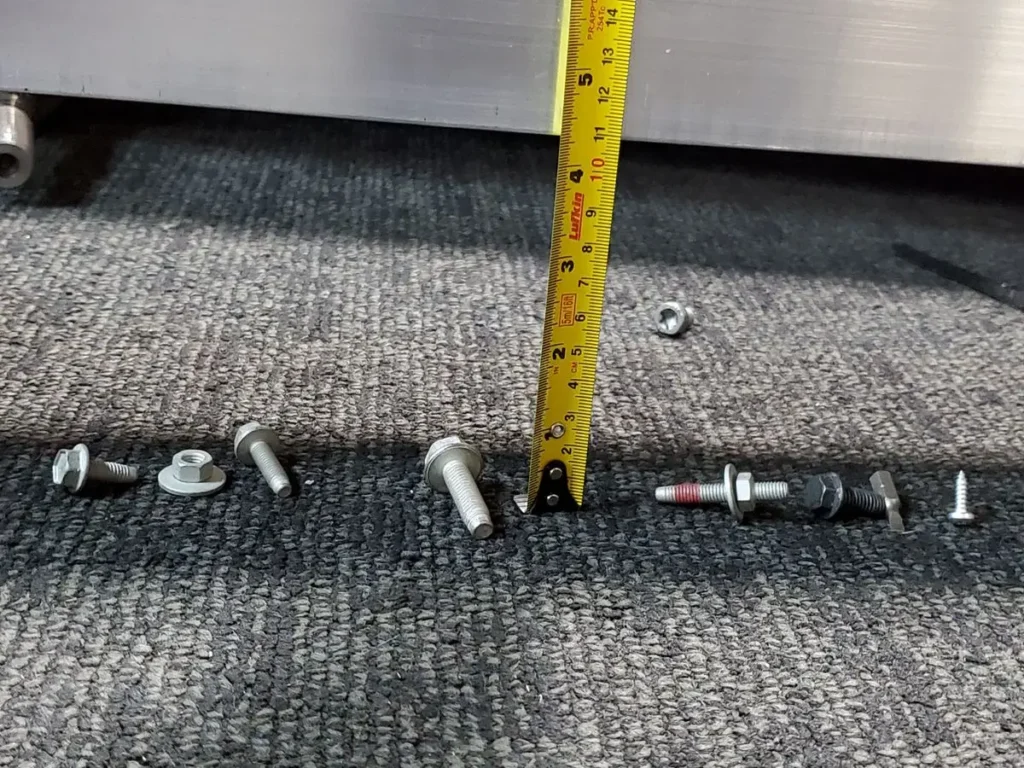

We tried various type of bolts and nuts to test the max 6″ height stated. It starts to pull some types at 4″ and works most of the time at about 3-3.5″.
