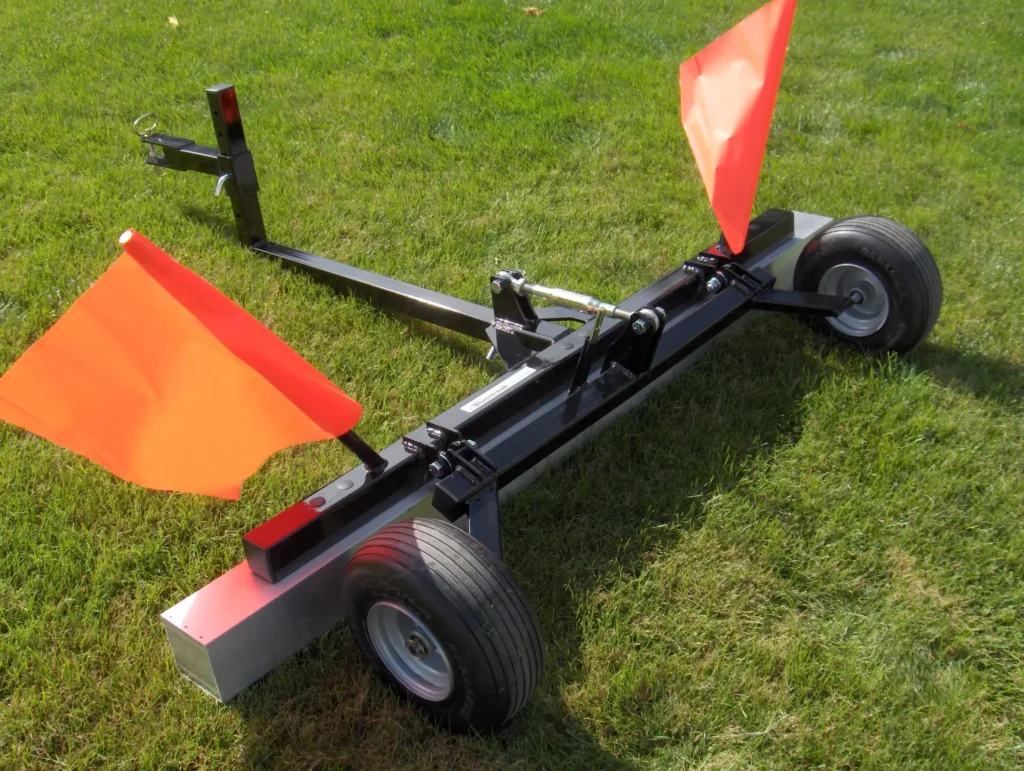

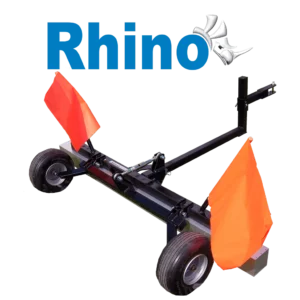

The Rhino Tow Behind Off-Road Magnetic Sweeper is a heavy duty off road trailer magnetic sweeper ready for harsh environments. It’s extremely simple in its design, making it very durable and a popular choice of many commercial type users with large dirt areas to clean including horse arenas and farms, construction sites, and smaller landfills.
It’s popular not only because of it’s simple and effective design but because it has loads of options and features – offered in three sweeping widths of five, six and seven feet wide and the ability to continuously adjust sweeping height from zero to five and a half inches.
You can also add accessories such as the Quick Clean Off Sleeve to allow very quick and easy clean off or add a Debris Digging Rake to dislodge embedded debris to aid in the pickup process.
It’s all the little extras, such as hitch height control and safety flags, that add to the Rhino’s popularity.
Price range: $4,361.00 through $4,654.00
See Pricing For All Models Below
$4,361.00 CAD
$4,501.00 CAD
$4,654.00 CAD
| Rhino Series | Rhino 62 | Rhino 74 | Rhino 86 |
|---|---|---|---|
| SKU | RH62 | RH74 | RH86 |
| Sweeper Width | 62″ | 74″ | 86″ |
| Ground Clearance | 0-5 1/2″ | 0-5 1/2″ | 0-5 1/2″ |
| Cleaning Method | Wipe clean with glove or rag or purchase optional Quick Clean Off Sleeve | Wipe clean with glove or rag or purchase optional Quick Clean Off Sleeve | Wipe clean with glove or rag or purchase optional Quick Clean Off Sleeve |
| Height Adjustability | 0-5 1/2″ continuous adjustment | 0-5 1/2″ continuous adjustment | 0-5 1/2″ continuous adjustment |
| Housing Construction | Aluminum 1/8″ walls | Aluminum 1/8″ walls | Aluminum 1/8″ walls |
| Wheels | 13″ x 6.5″ flat proof, ball bearing | 13″ x 6.5″ flat proof, ball bearing | 13″ x 6.5″ flat proof, ball bearing |
| Magnetic Surface Area | 240″ (4″ x 60″) | 288″ (4″ x 72″) | 336″ (4″ x 84″) |
| Maximum Lifting Height (using 2.5″, 8 penny nails) | 8.5 inches | 8.5 inches | 8.5 inches |
| Total Sweeper Weight | 252 lbs | 277 lbs | 302 lbs |
| Total Shipping Weight | 282 lbs | 312 lbs | 342 lbs |
| Shipping Dimensions | 68″L x 24″W x 18″H | 80″L x 24″W x 18″H | 92″L x 24″W x 18″H |
| Maximum Operating Speed | 8 mph/12kph at 3″ height | 8 mph/12kph at 3″ height | 8 mph/12kph at 3″ height |
| Maintenance | None | None | None |
| Accessories | |||
| Pricing Range | $4,361.00 CAD | $4,501.00 CAD | $4,654.00 CAD |
There are no CAD drawings.
| 5 star | 72% | |
| 4 star | 21% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 7% |
Price range: $1,324.00 through $1,685.00
Price range: $211.00 through $526.00
Price range: $2,634.00 through $2,857.00
Price range: $647.00 through $1,670.00
The optional alumium quick clean off sleeve is available for all 4.5” x 4.5” magnets in lengths of 62, 74”, 86” and 98”. These sleeves are far stronger than the PVC models (SEE DURABILITY TEST HERE) and protect the magnet assembly from impacts. PVC sleeves can also deform from the pressure of collected debris being pulled towards the magnet housing making them hard to pull off. The aluminum sleeves will not deform and the plastic rails on the inner corners of the sleeve allow for smooth operation. An extendable stainless-steel handle is also stored inside the sleeve to make removing the sleeve even easier. The aluminum quick clean off sleeve is a great solution for rough terrains and prevents having to buy a new PVC sleeve every time it cracks from hitting obstacles in rough conditions.
“This is an awesome product that works very well and saves a lot on labor costs….we spent a couple of weeks trying many methods before we found our Rhino 60. I can honestly say that we accomplished more the first full day we had our Rhino 60 than we accomplished in over two weeks of intense effort prior to receiving the machine.”
Jerry Rolfe
Layton Construction
The Rhino Tow Behind Off-Road Magnetic Sweeper, known as the “Big Brother” of the HOG magnetic sweeper, is ready for some very severe duty conditions with a range of options and great off road features.
It’s a popular choice of many commercial type users with large dirt areas to clean such as horse arenas and paddocks, cow pastures, construction sites, and smaller landfill sites.
The Rhino is ideal for keeping rough terrains and large areas free of dangerous metal debris because of it’s durable design, extra features. And because it’s light enough to attach to any vehicle it is a quick and easy method for reducing flat tires and accidents and preventing animal injuries.
Use the Rhino towable magnetic sweeper when a hanging sweeper would interfere with normal operation of the vehicle or when areas are too large to use a handheld sweeper.
The Rhino is offered in three sweeping widths of six, seven and eight feet wide and it comes standard with the ability to continuously adjust sweeping height from zero to five and a half inches.
The optional accessories increase the effectiveness of this sweeper such as the Quick Clean Off Sleeve to allow very quick and easy debris clean off and the Debris Digging Rake to dislodge embedded debris to aid in the pickup process.
It’s all the little extra features that also add to the Rhino’s popularity, such as the adjustable hitch height so that when hitching the Rhino to a tow vehicle doesn’t matter what height the hitch is on the tow vehicle, the Rhino can still be held level for optimum performance. The safety flags also ensure high visibility when in use for safety, and some people use the safety flags as a convenient holder for the debris when the Quick Clean Off Sleeve is pulled off.
It’s the Rhino’s durability, range of options and all the little extra features that make the Rhino one awesome product.

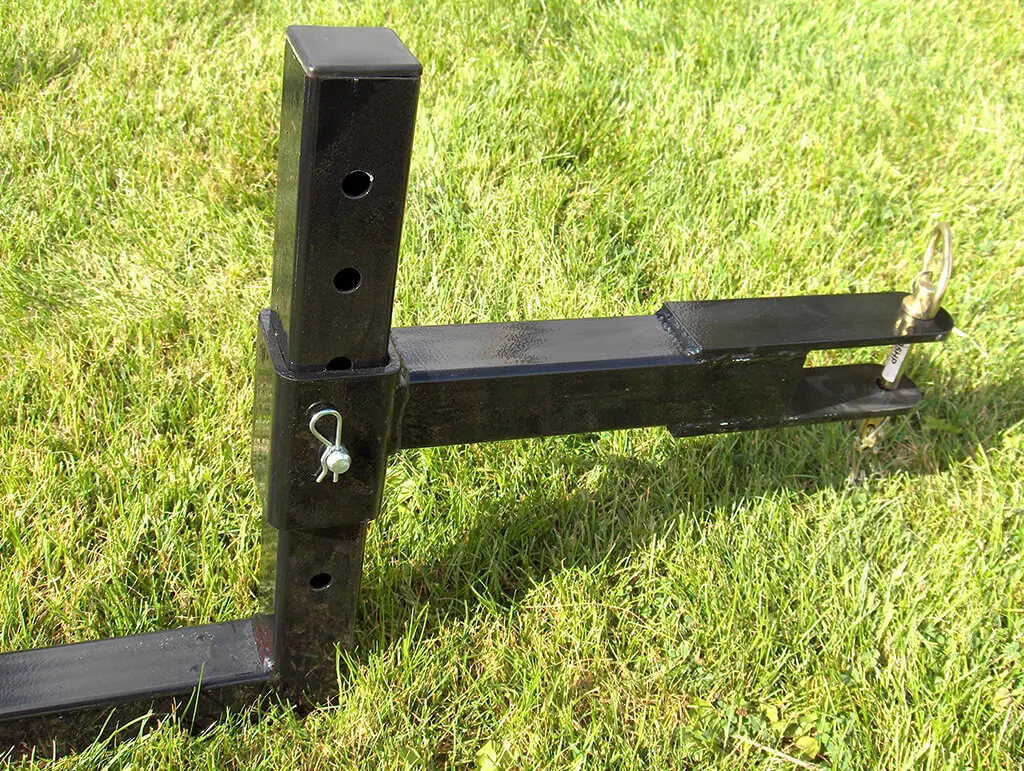

Adjustable hitch height so that when hitching the Rhino Tow Behind Off-Road Magnetic Sweeper to a tow vehicle it doesn’t matter what height the hitch is on the tow vehicle, the Rhino can still be held level for optimum performance.
Use the adjustable top link (gold coloured) located at the top of the sweeper to continuously adjust the sweeping height from 0 to 5 and 1/2 inches. Just twist the top link to change the sweeping height. Changing the sweeping height allows fine tuning of performance on a variety of terrains and conditions for optimum performance.
The Rhino Tow Behind Off-Road Magnetic Sweeper’s magnets are housed in a 4.5″ x 4.5″ aluminum housing and is very strong because they are packed end to end un-spaced with a metal backing plate to increase the size of the magnetic field and direct it downwards to increase pickup performance. The magnets are well protected from damage and require no maintenance or recharging.
“This magnet has done a great job for us. It let’s me sleep better at night knowing I’m picking up this material. I like the teeth on these because it gets a lot more of the nails and staples and shoe nails from the horses. It is kind of a pain to get it out of there but it does a good job scurrying up all the nails and everything.”
Farm Fence Builder
Lexington, Kentucky, USA
The optional Quick Clean Off Sleeve accessory makes cleaning off the magnet easy. Just slide the Sleeve off of the unit and debris falls to the ground at the end of the magnet.
The Sleeve also helps protect the sweeper housing when hitting hard surfaces. The Sleeve is constructed out of durable PVC and molded to wrap around the magnetic housing. It locks in place and will not move when the sweeper is in use.
Now Available in New Design! – Extruded PVC Sleeve with Injection Molded End Pieces.
On site demonstration of the Quick Clean Off Sleeve.
The Debris Digging Rake accessory slips on over the tongue of the Rhino Tow Behind Off-Road Magnetic Sweeper and disturbs the ground so hidden or embedded debris surfaces and is picked up by the magnet. The tines are spring loaded to flex while disturbing the surface of the earth. Steel tube construction. Installs in less than 3 minutes. Grooms and levels the soil as you clean up debris.
The orange safety flags ensure high visibility when in use for increased safety. They are also a handy debris catching device. When the Quick Clean Off Sleeve is pulled off, the safety flags can be used as a convenient holder for the debris. Instead of debris falling onto the dirt a flag can be used to catch the debris.
The optional DDR XL is a heavier duty debris digging rake that deploys easier and faster than the original. The DDR XL has 5/16” inch diameter spring teeth that can dig into the ground to loosen up any embedded metal debris so it can be caught by the magnet behind the rakes. The DDR XL is available in 62”, 74”, 86” and 98” inch widths so it will work with many different sweepers. The DDR XL also leaves behind a groomed surface that serves as a visual cue of what areas have been swept already. Rubber stone guards deflect flying rocks that get thrown by spring teeth to prevent damage to nearby equipment and personnel.
An optional Debris Digging Rake accessory can be purchased for offroad magnetic sweeper trailers. The Debris Digging Rake (DDR) slips on over the tongue of a trailer and agitates the ground. The 0.215” diameter agricultural tines can be set to varying depths to disturb the ground ahead of the magnet to loosen up embedded and compacted debris so that the magnet can pick up the debris as it passes over the ground behind the debris digging rake. The distinctive pattern left by the DDR when it is digging is also great as a guide for the operator indicating areas that have already been swept for debris.
