Edger

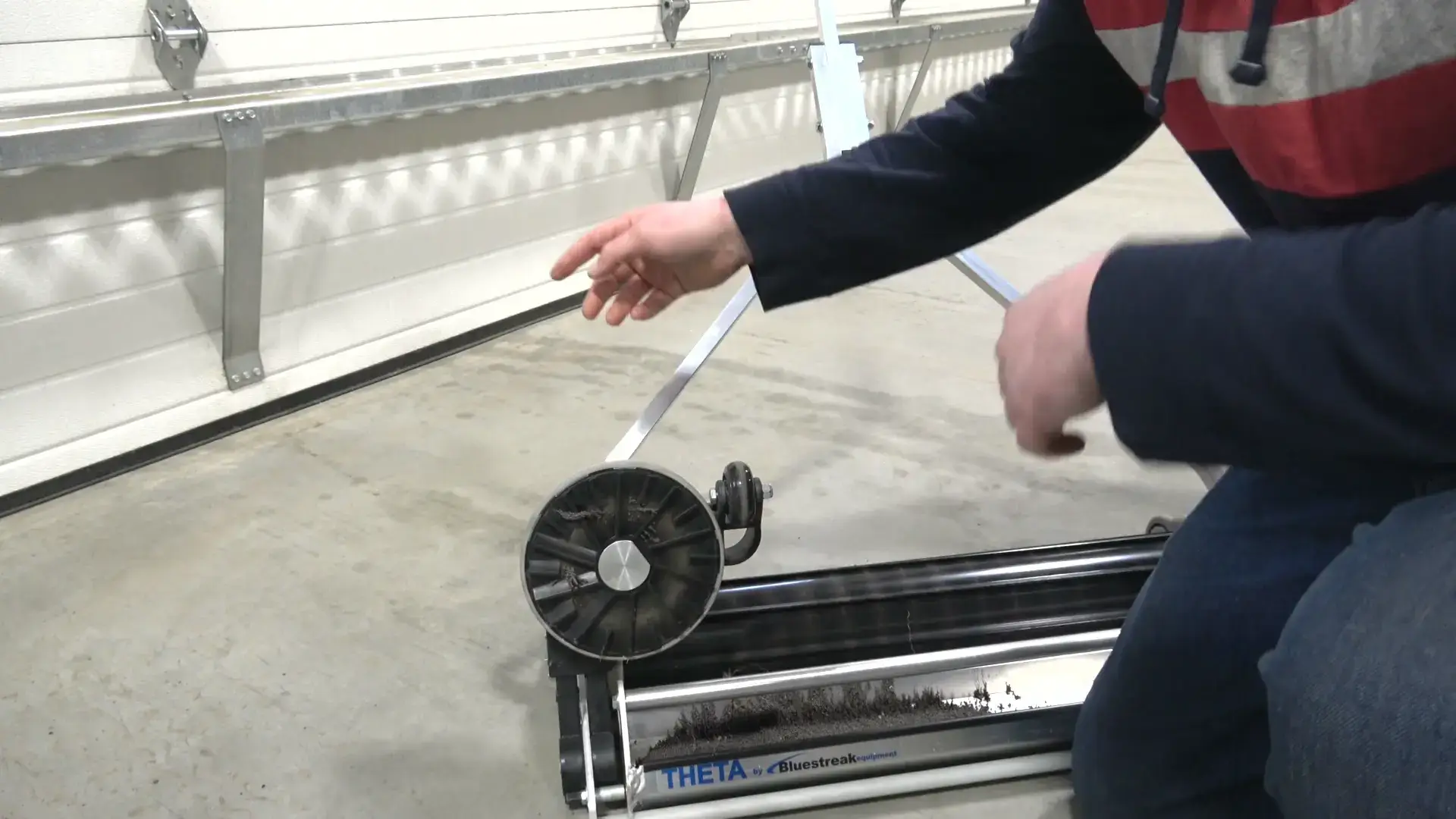

This accessory is designed to work with the Theta or Fusion Shotblast magnets to collect all shot accumulated against walls or edges on site. The Edger picks up shot from walls and throws the shot in front of the main sweeper housing for more thorough and efficient cleaning after shotblasting.

IMPORTANT NOTE: If fitting this accessory to a Theta or Fusion purchased before February 5th 2024 you must purchase part #8 for the Theta or Fusion to retrofit the Edger. Units purchased before February 5th 2024 do not have the holes required to mount the Edger.

• Designed for picking up steel shot along the wall edge
• Continuous discharge design continuously cleans off magnet to keep maximum pickup performance while depositing steel shot into the main sweeper’s sweeping range
• 87” (L) x 8.65” (W) x 4.25” (H) product dimensions
• 5 lbs total product weight
• N42 rare earth magnets of different sizes, arranged for maximum magnetic strength
• Available in one 6.875” diameter finned horizontal axis wheel assembly, with 3.5” effective sweeping width
• Magnet Dimensions: 2 pcs 2”x1”x0.5”, 1 pc 0.75”x0.75”x0.375”
• Fixed Sweeping Height to maximize magnet performance
• Aluminum flip stopper being able to hold the sweeper in upward position when not operating
• Main body and mounting arms are made of glass fiber reinforced nylon to enhance the strength of the structure
• Machined aluminum axle and high-quality ball bearings ensure smooth rotation during operation
• 58 mm wheel, non-marking ground contact wheel
• All parts are available online
