The more off-road alternative to the Pyr Series magnetic sweeper. The Pyr and Eiger Series are quite similar but the Eiger Hanging Wheeled Magnetic Bar Sweeper has two key differences;
1) the Eiger Series has more “off road” capable 10” x 3” wheels for the Eiger 4.5″ x 4.5″ or 8″ x 2.5″ for the Eiger 3″ x 3″ and those wheels are foam filled flat proof and most importantly wider so that they don’t sink into loose sand, soil, or gravel conditions so that the magnet is still protected from hitting the ground and
2) the minimum sweeping height of 2 1/2” for the Eiger 4.5″ x 4.5″ or 1 3/4″ for the Eiger 3″ x 3″ is higher (from magnet bottom to bottom of wheels) on the Eiger to provide more clearance to better accommodate uneven surfaces.
Price range: $1,389.00 through $3,662.00
See Pricing For All Models Below
$1,389.00 CAD
$1,529.00 CAD
$1,712.00 CAD
$1,863.00 CAD
$1,992.00 CAD
$2,189.00 CAD
$2,030.00 CAD
$2,343.00 CAD
$2,694.00 CAD
$3,002.00 CAD
$3,297.00 CAD
$3,662.00 CAD
| Eiger Series 3 x 3 | Eiger 38 | Eiger 50 | Eiger 62 | Eiger 74 | Eiger 86 | Eiger 98 |
|---|---|---|---|---|---|---|
| SKU | EG38/3 | EG50/3 | EG62/3 | EG74/3 | EG86/3 | EG98/3 |
| Sweeper Width | 38″ | 50″ | 62″ | 74″ | 86″ | 98″ |
| Ground Clearance | Adjustable, with a minimum of 1.75 inches | Adjustable, with a minimum of 1.75 inches | Adjustable, with a minimum of 1.75 inches | Adjustable, with a minimum of 1.75 inches | Adjustable, with a minimum of 1.75 inches | Adjustable, with a minimum of 1.75 inches |
| Cleaning Method | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard |
| Sweeping Height Adjustability | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height |
| Maximum Lifting Height | 5.75” inches | 5.75” inches | 5.75” inches | 5.75” inches | 5.75” inches | 5.75” inches |
| Housing Construction | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Wheels | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each | 8” x 2.5” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300 lbs) capacity each |
| Maintenance | None | None | None | None | None | None |
| Included Accessories | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve |
| Optional Accessories | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit |
| Total Sweeper Weight | 55 lbs | 69 lbs | 83 lbs | 97 lbs | 112 lbs | 126 lbs |
| Pricing Range | $1,389.00 CAD | $1,529.00 CAD | $1,712.00 CAD | $1,863.00 CAD | $1,992.00 CAD | $2,189.00 CAD |
| Eiger Series 4.5 x 4.5 | Eiger 38 | Eiger 50 | Eiger 62 | Eiger 74 | Eiger 86 | Eiger 98 |
|---|---|---|---|---|---|---|
| SKU | EG38/4.5 | EG50/4.5 | EG62/4.5 | EG74/4.5 | EG86/4.5 | EG98/4.5 |
| Sweeper Width | 38″ | 50″ | 62″ | 74″ | 86″ | 98″ |
| Ground Clearance | Adjustable, with a minimum of 2.5 inches | Adjustable, with a minimum of 2.5 inches | Adjustable, with a minimum of 2.5 inches | Adjustable, with a minimum of 2.5 inches | Adjustable, with a minimum of 2.5 inches | Adjustable, with a minimum of 2.5 inches |
| Cleaning Method | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard | Quick Clean Off Sleeve comes standard |
| Sweeping Height Adjustability | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height | Yes – by changing mounting height |
| Maximum Lifting Height | 9.25” inches | 9.25” inches | 9.25” inches | 9.25” inches | 9.25” inches | 9.25” inches |
| Housing Construction | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum | Aluminum |
| Wheels | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each | 10” x 3” foam filled flat proof wheels with Steel hubs and 5/8 inch ball bearings rated at 136kg (300lbs) capacity each |
| Maintenance | None | None | None | None | None | None |
| Included Accessories | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve | Comes standard with 4 12 inch hanging chains, 8 quick clips, and Quick Clean Off Sleeve |
| Optional Accessories | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit | Two Chain Hanging Kit Four Chain Hanging Kit |
| Total Sweeper Weight | 124.4 lbs | 158.4 lbs | 191.8 lbs | 225.8 lbs | 258.8 lbs | 291.8 lbs |
| Total Shipping Weight | 172 lbs | 213.9 lbs | 255.3 lbs | 297.6 lbs | 338.2 lbs | 379.1 lbs |
| Shipping Dimensions | 41″L x 15″W x 14″H | 53″L x 15″W x 15″H | 65″L x 15″W x 15″H | 77″L x 15″W x 15″H | 89″L x 15″W x 15″H | 101″L x 15″W x 15″H |
| Pricing Range | $2,030.00 CAD | $2,343.00 CAD | $2,694.00 CAD | $3,002.00 CAD | $3,297.00 CAD | $3,662.00 CAD |

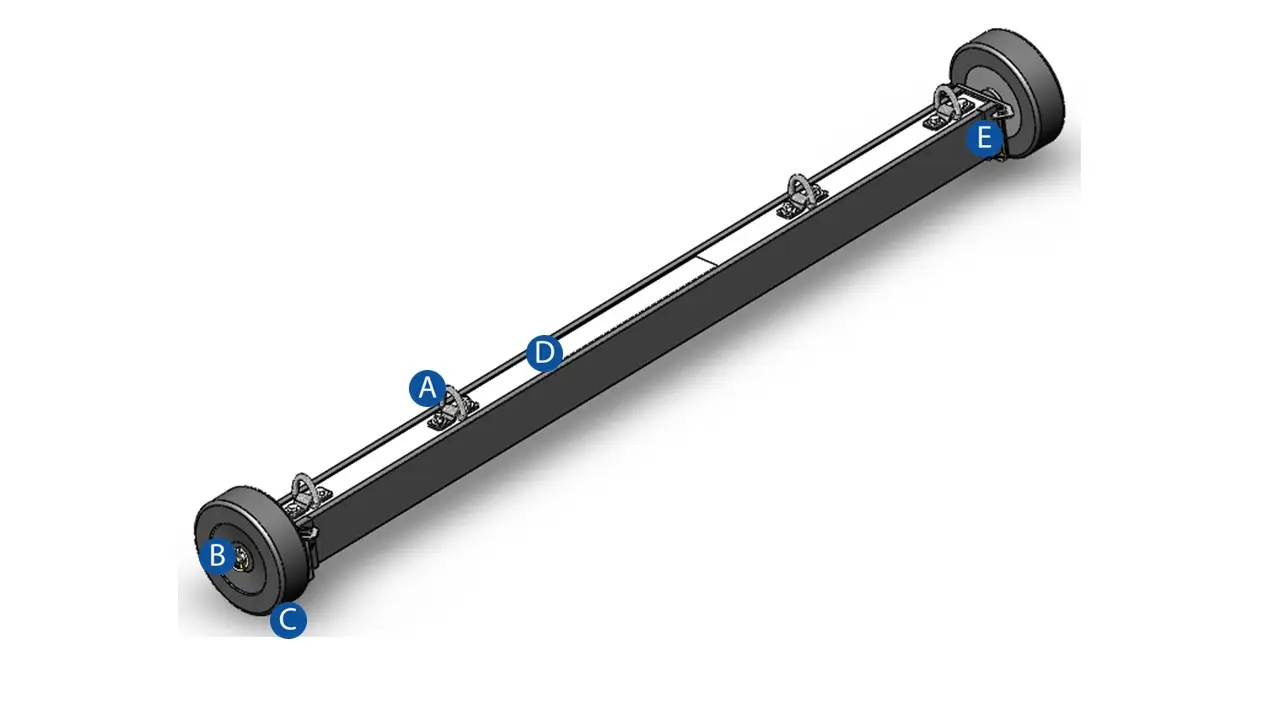

A: 4 Steel anchor points for more mounting options and sway prevention
B: 5/8” Diameter Stainless Steel Wheel Axles
C: 8” x 2.5” Foam Filled bump wheels with 5/8” ball bearings
D: 1/8” thick 6061 Aluminum Housing
E: 3/8” Thick Bolted Steel End Caps

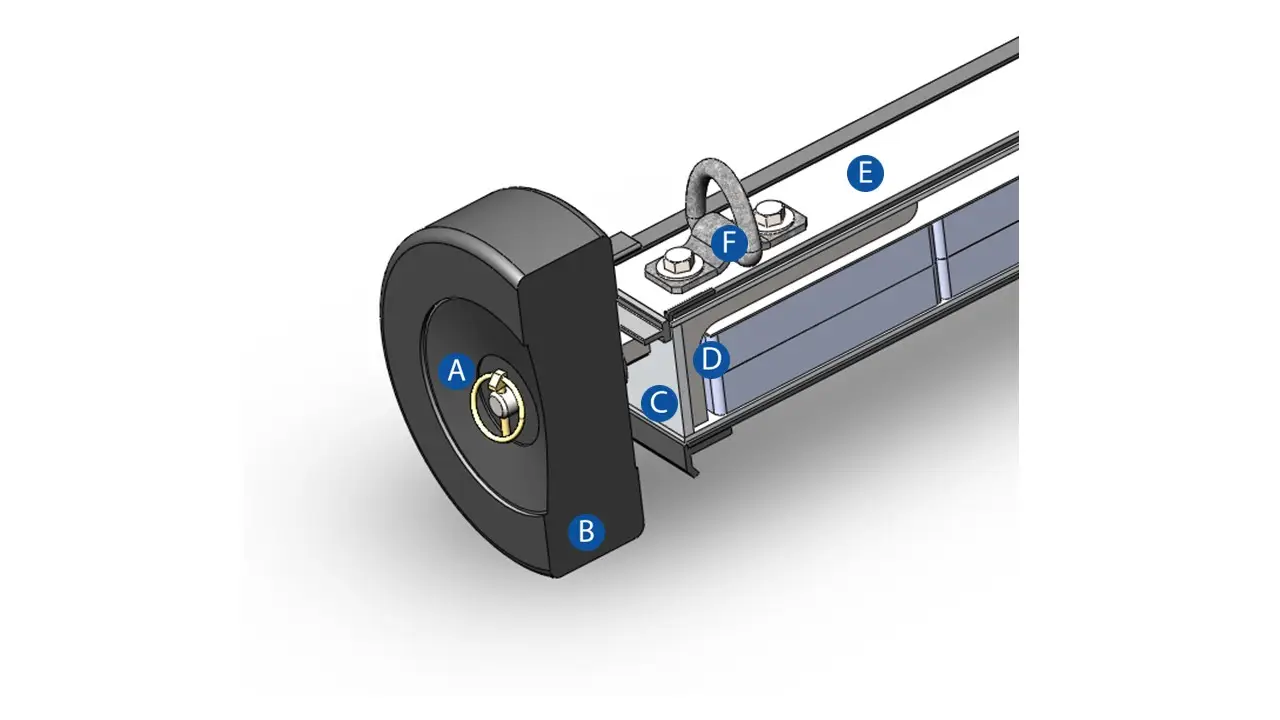

A: 5/8” Diameter Stainless Steel Wheel Axle
B: 8” Foam Filled Rubber Wheel on Steel Hub/Ball Bearing Rim (300 lb Capacity)
C: ¼” thick aluminum end cap cover (to break magnetic circuit)
D: 3/8” thick steel angle End Caps
E: 1/8” thick aluminum housing
F: 5000lb D-Ring Bolted Through Aluminum Housing and Directly into 3/8” Thick Tapped Steel End Caps
A: Bottom of Sleeve to Bottom of Wheel
Eiger 3 x 3 Gauss Measurements
A: A = Distance from Magnet (Sweeping Height)
Note: Gauss (G) shown as the peak gauss measured in the center of the magnet at each distance.
A: 4 Steel anchor points for more mounting options and sway prevention
B: 5/8” Diameter Stainless Steel Wheel Axles
C: 10” x 3” Foam Filled bump wheels with 5/8” ball bearings
D: 1/8” thick 6061 Aluminum Housing
E: 3/8” Thick Bolted Steel End Caps

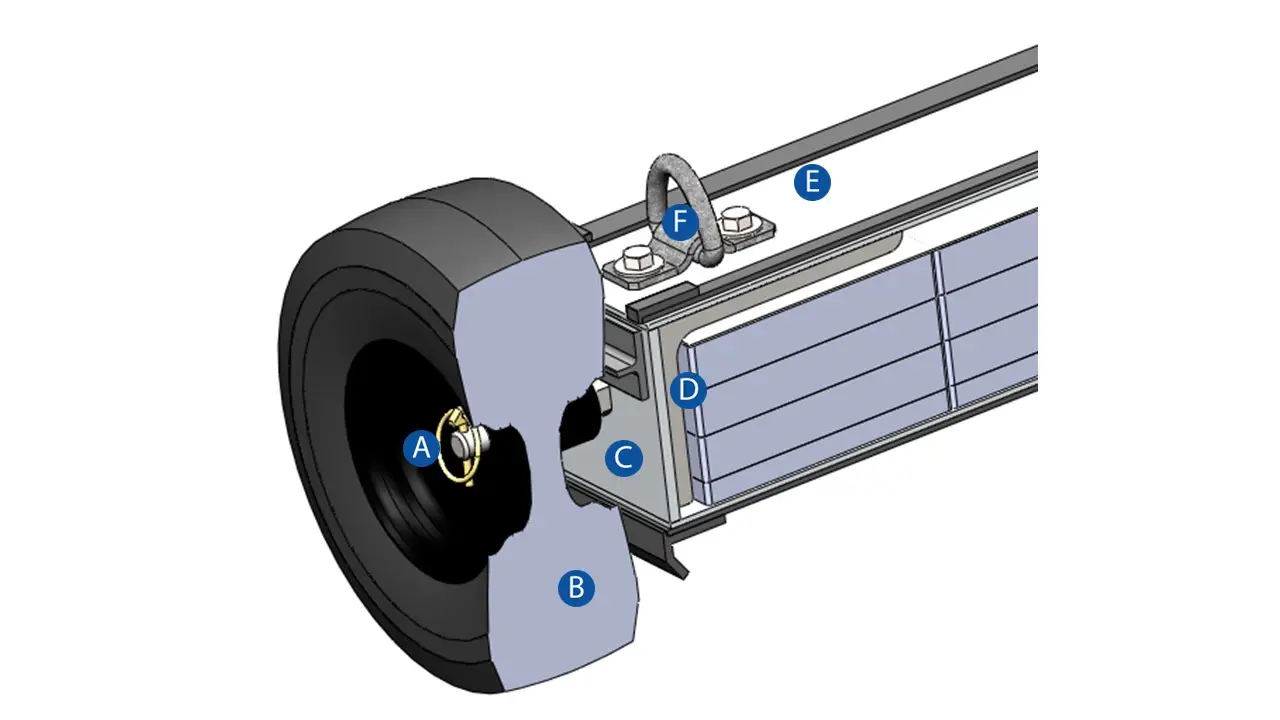

A: 5/8” Diameter Stainless Steel Wheel Axle
B: 10” Foam Filled Rubber Wheel on Steel Hub/Ball Bearing Rim
C: ¼” thick aluminum end cap cover (to break magnetic circuit)
D: 3/8” thick x 4” x 6” steel angle End Caps
E: 1/8” thick aluminum housing
F: 5000lb D-Ring Bolted Through Aluminum Housing and Directly into 3/8” Thick Tapped Steel End Caps
A: Bottom of Sleeve to Bottom of Wheel
A: A = Distance from Magnet (Sweeping Height)
Note: Gauss (G) shown as the peak gauss measured in the center of the magnet at each distance.
| 5 star | 100% | |
| 4 star | 0% | |
| 3 star | 0% | |
| 2 star | 0% | |
| 1 star | 0% |
$651.00
$121.00
Price range: $1,333.00 through $1,696.00
The optional aluminum quick clean off sleeve is available for all 4.5” x 4.5” magnets in lengths of 62, 74”, 86” and 98”. These sleeves are far stronger than the PVC models (SEE DURABILITY TEST HERE) and protect the magnet assembly from impacts. PVC sleeves can also deform from the pressure of collected debris being pulled towards the magnet housing making them hard to pull off. The aluminum sleeves will not deform and the plastic rails on the inner corners of the sleeve allow for smooth operation. An extendable stainless-steel handle is also stored inside the sleeve to make removing the sleeve even easier. The aluminum quick clean off sleeve is a great solution for rough terrains and prevents having to buy a new PVC sleeve every time it cracks from hitting obstacles in rough conditions.
The Eiger Hanging Wheeled Magnetic Bar Sweeper utilizes permanently charged C8 Ceramic Magnets that will never need to be recharged to provide a strong magnetic field with a maximum lifting height of 9.25” inches for the Eiger 4.5″ x 4.5″ or 5.75″ inches for the Eiger 3″ x 3″ using a two and a half inch nail. Power will never decrease, ensuring years of use.
Demonstration of Eiger 4.5″ x 4.5″
lifting height of 9.25” inches.
Demonstration of Eiger 3″ x 3″
lifting height of 5.75” inches.
Sweeping height is adjustable. The Minimum sweeping height is 2.5” inches for the Eiger 4.5″ x 4.5″ and 1.75″ for the Eiger 3″ x 3″ with the bump wheels touching the ground. The recommended sweeping height for the Eiger 4.5″ x 4.5″ is 3” – 4” inches, with a maximum sweeping height of 5” inches. Magnet effectiveness will decrease as speed and sweeping height increase which is why we recommend a sweeping height of 3” to 4” inches if possible.
The recommended sweeping height for the Eiger 3″ x 3″ is 2.5″ inches and the maximum is 3″ inches. The “Wrap Around” magnet design ensures debris never gets wiped off the bottom of the magnet. You will also find in practice that most of the debris ends up on the back side of the magnet when operating at speed which gives you a good indication of why we have this feature.
The Eiger 4.5″ x 4.5″ 10”x3” foam filled bumper wheels with steel hubs and 5/8” ball bearings have a 136 kg (300 lbs) capacity (each) and ensure a consistent height off the ground is maintained when sweeping. They also help ensure the magnet does not hit the ground in the event of a bump, uneven ground surfaces or a compression of the vehicle suspension. The 8″ x 2.5″ wheels on the Eiger 3″ x 3″ have a capacity of 300 lbs each. To clean off the EIGER magnetic sweeper when full of debris, just remove the wheel on one end and pull off the black PVC Quick Clean Off Sleeve that comes standard on the EIGER. All of the debris will drop off on the side of the magnet that you pull the Sleeve off from. Clean off takes only seconds.

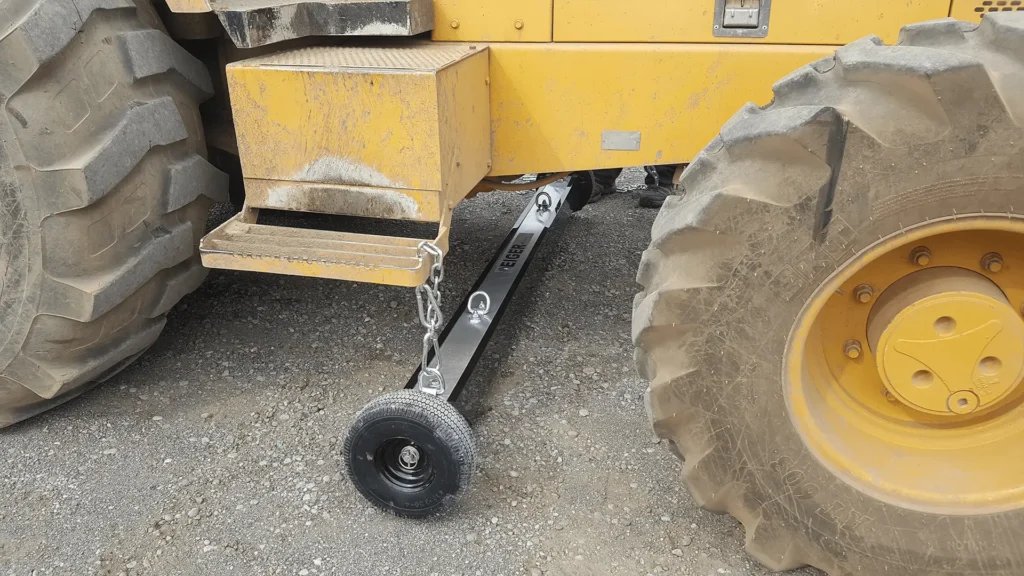

The EIGER is ideal front mounted under shunt trucks or yard trucks operating at trucking facilities with dirt or gravel yards. It’s also ideal mid-mounted under outdoor forklifts operating in dirt and gravel yards around manufacturing facilities. Also a great option for tractors operating in quasi commercial industrial operations like greenhouse environments, or under tractors or attached to grooming equipment at equine facilities, etc., to control metal debris.
The EIGER was designed specifically to pick up and remove debris that causes flat tires such as nails, screws, wire, discarded pieces of metal from fabrication activities, bolts, nuts, pins, miscellaneous metal pieces, etc. The EIGER is compact in size. For further information see the CAD section for CAD drawings showing overall dimensions of the various sizes of the EIGER. Heavy duty construction for long term durability.
Read more about measuring magnetic sweeper pickup power and performance
Quick Clean Off Sleeve Demonstration
The Quick Clean Off Sleeve which comes standard with the Eiger allows for quick removal of debris even when the Eiger Hanging Wheeled Magnetic Bar Sweeper is mounted under a vehicle.
The extruded black PVC Quick Clean Off Sleeve is 0.125″ thick, and the injection moulded ends are attached to the extruded sleeve by way of PVC cement. To clean the Eiger Hanging Wheeled Magnetic Bar Sweeper off when full of debris, just remove one wheel, and pull off the Quick Clean Off Sleeve. All of the debris will drop off on the side of the magnet that you pull the Sleeve off from.
Clean off is easy, convenient, and simple.
The Eiger Hanging Wheeled Magnetic Bar Sweeper has been designed in six different sweeping widths of 38”, 50”, 62”, 74”, 86”, 98” to accommodate many different vehicle sizes from small tractors to shunt and commercial trucks.
As a hanging magnet, the EIGER has no specific requirements of the vehicle to ensure FIT. You should however, take a look at the CAD files showing overall dimensions to ensure this will work with your intended vehicle and the anticipated mounting position.
The EIGER can be front, mid or rear mounted on a variety of vehicles as long as enough clearance and space is present.
The Eiger comes standard with a durable Quick Clean Off Sleeve for easy removal of debris. Also comes standard with 4 hanging chains and 8 quick clips for hanging the EIGER. Each hanging chain is 12” inches long (not including the quick clip on each end).
Additional hanging chains can purchased if you wish to add more hanging chains to prevent magnet swinging.
The Eiger Hanging Wheeled Magnetic Bar Sweeper uses permanently charged grade C8 magnets that will never need to be recharged. Power will never decrease, ensuring years of use.
The Eiger 4.5″ x 4.5″ will pick up a 2.5” nail when the bottom of the magnet is 9.25” off the ground providing plenty of pickup power performance. Magnet effectiveness will decrease as speed and sweeping height increase so to maximize performance we recommend setting the sweeping height between 3 and 4 inches for the Eiger 4.5″ x 4.5″ in most situations. The maximum effective sweeping height for the Eiger 4.5″ x 4.5 ” while a vehicle is moving is 5″.
The Eiger 3″ x 3″ will pick up a 2.5″ nail when the bottom of the magnet is 5.75″ off the ground. The recommended sweeping height is 2.5″ and the maximum sweeping height is 3″ for the Eiger 3″ x 3″.
The Eiger Hanging Wheeled Magnetic Bar Sweeper magnet is completely enclosed, and the replaceable black PVC Quick Clean Off Sleeve further protects the magnet by taking all of the wear and tear of everyday use.
The Eiger Hanging Wheeled Magnetic Bar Sweeper is designed as an all terrain magnet which means it is designed with our “Wrap Around” feature.
The “Wrap Around” feature ensures debris never gets wiped off the bottom of the magnet. The debris that slides off the bottom just snaps onto the back of the magnet.
In practice most of the debris that is picked up ends up on the back side of the magnet when operating at speed which gives you a good indication of why we have this feature.
The Eiger Hanging Wheeled Magnetic Bar Sweeper has bump wheels that are designed to hang slightly above the ground, but protect the magnet from hitting the ground when the vehicle suspension compresses or if there are bumps or potholes in the road.
The protective bump wheels allow you to hang the magnet lower for better performance than would be possible without bump wheels.
A: 6204-2RS Sealed high speed ball bearings
B: 5/8” OD 304 Stainless steel wheel bolt with serrated flange
C: 1300lbs load capacity
D: ADC 12 Cast aluminum hub
E: Precision machined aluminum bushings
F: 85 Shore A high elastic polyurethane
This wheel kit replaces the standard wheel and axle bolt assembly. The 8” inch wheel fits 3” x 3” inch models, and the 10” inch wheel fits 4.5” X 4.5” magnetic sweeper models. This wheel is an upgrade that is built of stronger materials that can withstand more abuse in on and offroad settings. The sealed highspeed bearings keep dirt out so the polyurethane tread wheels can spin smoothly. The bearings and wheels are resistant to damage from impacts at speed so if the sweeper is expected to withstand heavy use in rough conditions this wheel will last longer and perform better than the standard option.
See how to easily mount a hanging magnet to the front bumper or rear hitch of your truck using our optional hanging magnet brackets.
A: Hanging Bracket C
B: 2” Inch Reveiver Mount Bracket
If you have a 2” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of hanging magnet you choose), and the 2” inch Receiver Mount Bracket. These accessories are available for purchase and will be recommended accessories when you checkout.
A: Bumper Mount Bracket A
B: Hanging Bracket B
If you have a flat steel bumper on your commercial truck, you can mount a hanging magnet using one of the available Hanging Brackets (check the Hanging Bracket Selection Chart and FIT Guidelines to determine which based on the size of a hanging magnet you choose), and Bumper Mount Bracket A.
A: Push until holes line up
B: 2” inch receiver on truck
C: 2.5” inch to 2” inch steel receiver adaptor sleeve
If you have a 2.5” inch receiver on either the front or rear of your vehicle you can mount a hanging magnet using one of the available hanging brackets with the 2” inch receiver mount bracket and the 2.5” to 2” inch steel receiver adaptor sleeve accessory.
A: Hanging bracket D with easy height adjustment for hanging magnets with outrigger
Hanging Bracket D is compatible with the same magnets as Hanging Bracket C but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
A: Hanging Bracket E attaches to snowplow mount
B: Kubota snowplow mount for hanging bracket works with all Bluestreak hanging brackets
Hanging Bracket E is compatible with the same magnets as Hanging Bracket B (except Wrasse & Gobie) but features screw driven cable actuators on both ends for easy height adjustment (not needed if sweeper has built in height adjustment features).
