Naos Magnetic Sweeper

Tucked under the forklift for a Super Low Profile.

Recommended Industry Applications

Keep the maneouverability of your forklift in confined spaces with the low profile NAOS magnetic sweeper.

TOP View of Back of Forklift showing NAOS installed

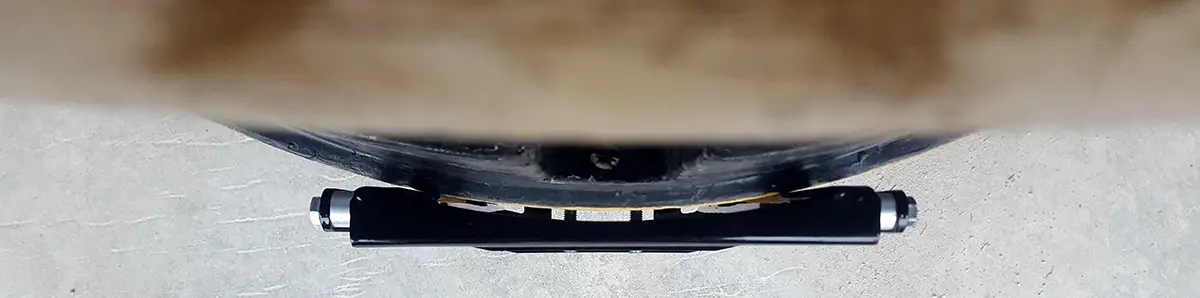

NAOS ultra slim profile design

The NAOS adds only 1.75” inches to the rear profile of your forklift by tucking the magnet under the rear counterweight where it’s safest and at the same time maintaining the manoeuverability of your lift truck in confined spaces.



The NAOS mounts on the rear pin of the forklift and doesn’t interfere with exhaust even if the exhaust on your forklift is vented through the pin slot.



No modifications to your forklift are necessary to mount the NAOS.  The NAOS ONLY uses the existing pin on your forklift for mounting.  You don’t have to modify, weld on or drill into your forklift to mount the NAOS.



The NAOS can be mounted to forklifts of many sizes and shapes.  The 4 sizes of the NAOS combined with multiple sizes of brackets that come with NAOS allow the NAOS to accommodate forklifts of all kinds while not interfering with rear steering wheels (see FIT guidelines for how to verify if the NAOS will fit your lift truck)



Continuous adjustment clamping system allows precise sweeping height adjustment instead of fixed sweeping height positions so that you can fine tune the sweeping height to best suit your job site conditions.



Designed  specifically to pick up tramp ferrous metal debris such as nails, screws, bits of wire, bolts, nuts, tools, and discarded pieces from fabrication activities



Allows continuous clean up of metal debris while doing other work to eliminate labor costs of tramp metal cleanup.

$719.99 USD$749.99 USDSelect options

See Pricing For All Models Below

NAOS

Product Pricing

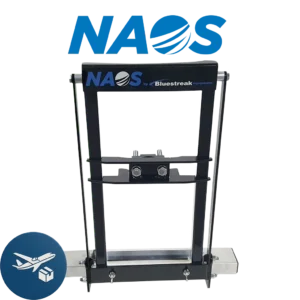

 Naos™ 18 magnetic sweeper

Naos™ 18 magnetic sweeper

$ 719.99

Shipping

Weight: 28.6 lbs | Length: 27
Width: 16 | Height: 8

SKU:

NA18

 Naos™ 20 magnetic sweeper

Naos™ 20 magnetic sweeper

$ 729.99

Shipping

Weight: 29.7 lbs | Length: 27
Width: 16 | Height: 8

SKU:

NA20

 Naos™ 22 magnetic sweeper

Naos™ 22 magnetic sweeper

$ 739.99

Shipping

Weight: 30.8 lbs | Length: 27
Width: 16 | Height: 8

SKU:

NA22

 Naos 24 magnetic sweeper

Naos 24 magnetic sweeper

$ 749.99

Shipping

Weight: 31.9 lbs | Length: 27
Width: 16 | Height: 8

SKU:

NA24


* If you want to order more than one you may add or adjust product quantities once you have added the product to your shopping cart.

Specs


Naos Series Naos 18 Naos 20 Naos 22 Naos 24
SKU NA18 NA20 NA22 NA24
Sweeper Width 18″ 20″ 22″ 24″
Cleaning Method Wipe clean with glove or rag Wipe clean with glove or rag Wipe clean with glove or rag Wipe clean with glove or rag
Sweeping Height Adjustability Yes , continuous adjustment Yes , continuous adjustment Yes , continuous adjustment Yes , continuous adjustment
Magnet Type Ceramic 8 Ceramic 8 Ceramic 8 Ceramic 8
Maximum Lifting Height (using a 2.5″ nail) 4.25” inches 4.25” inches 4.25” inches 4.25” inches
Total Sweeper Weight 25.5 lbs 26.5 lbs 27.5 lbs 28.5 lbs
Total Shipping Weight 28.6 lbs 29.7 lbs 30.8 lbs 31.9 lbs
Shipping Dimensions 27”L x 16”W x 8”H 27”L x 16”W x 8”H 27”L x 16”W x 8”H 27”L x 16”W x 8”H
Pricing Range $719.99 $729.99 $739.99 $749.99

CAD Drawings

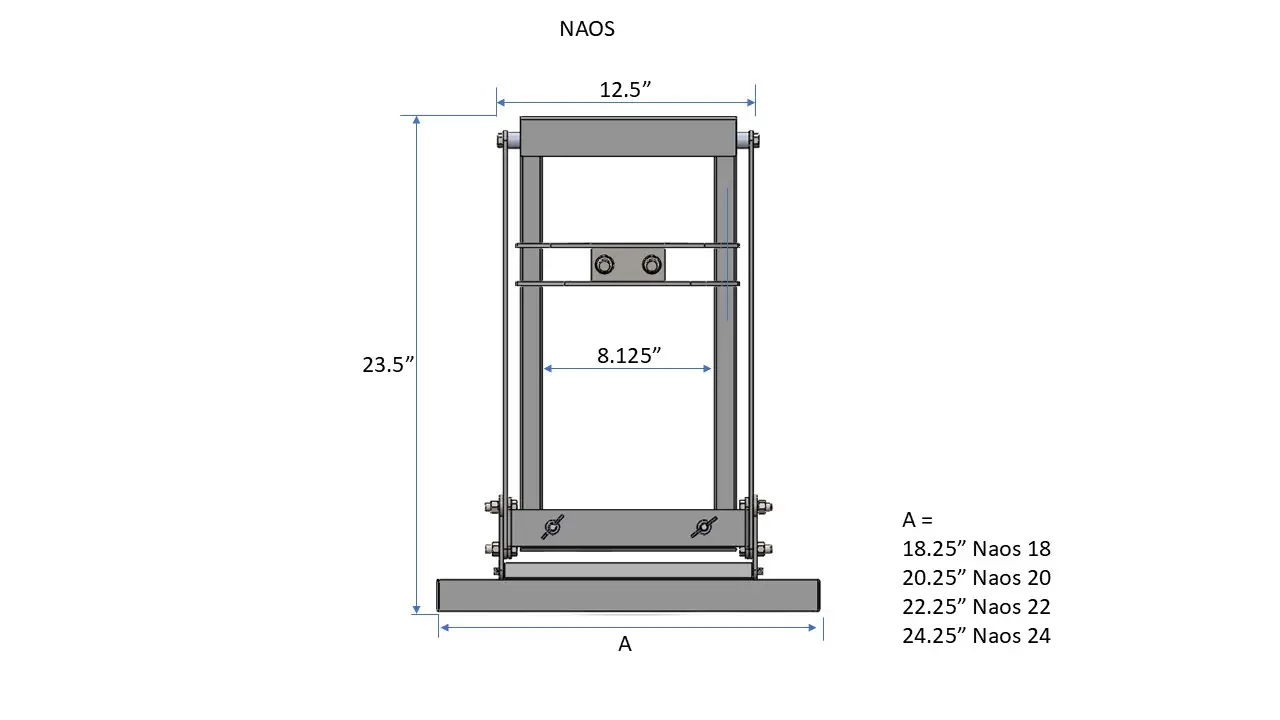

Naos Back View

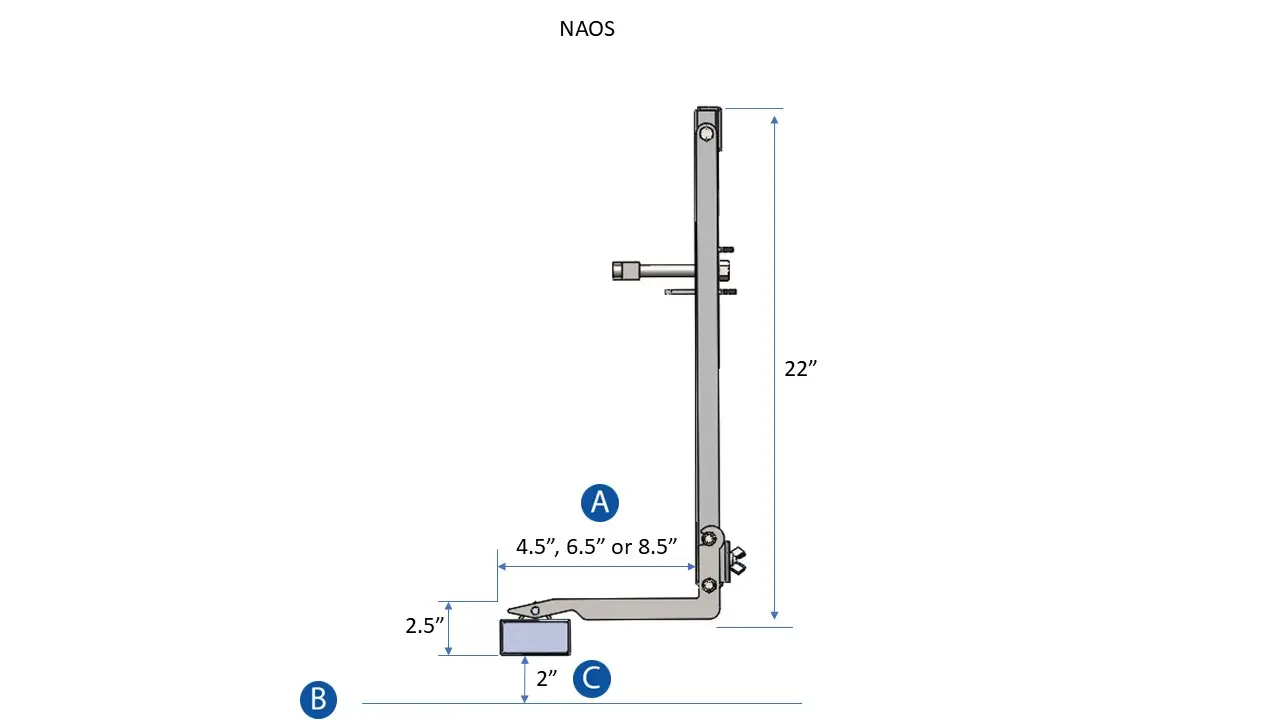

Naos Side View

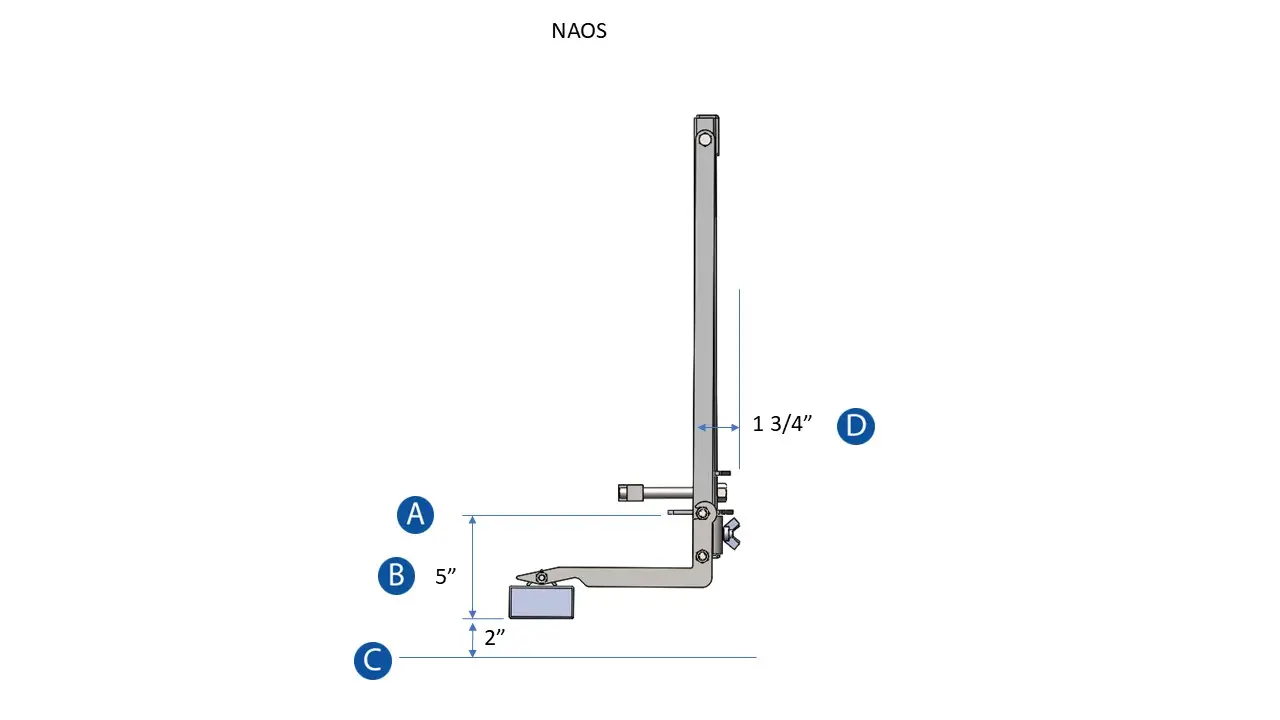

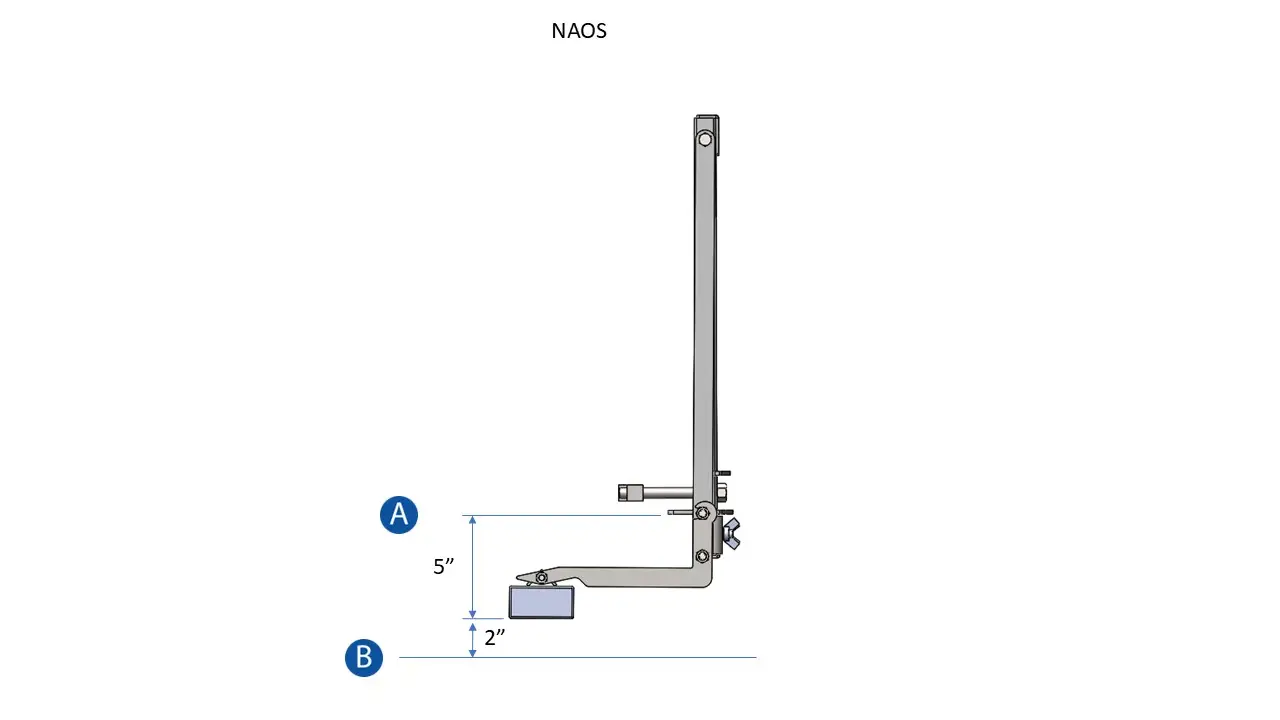

Naos minimum retracted dimensions

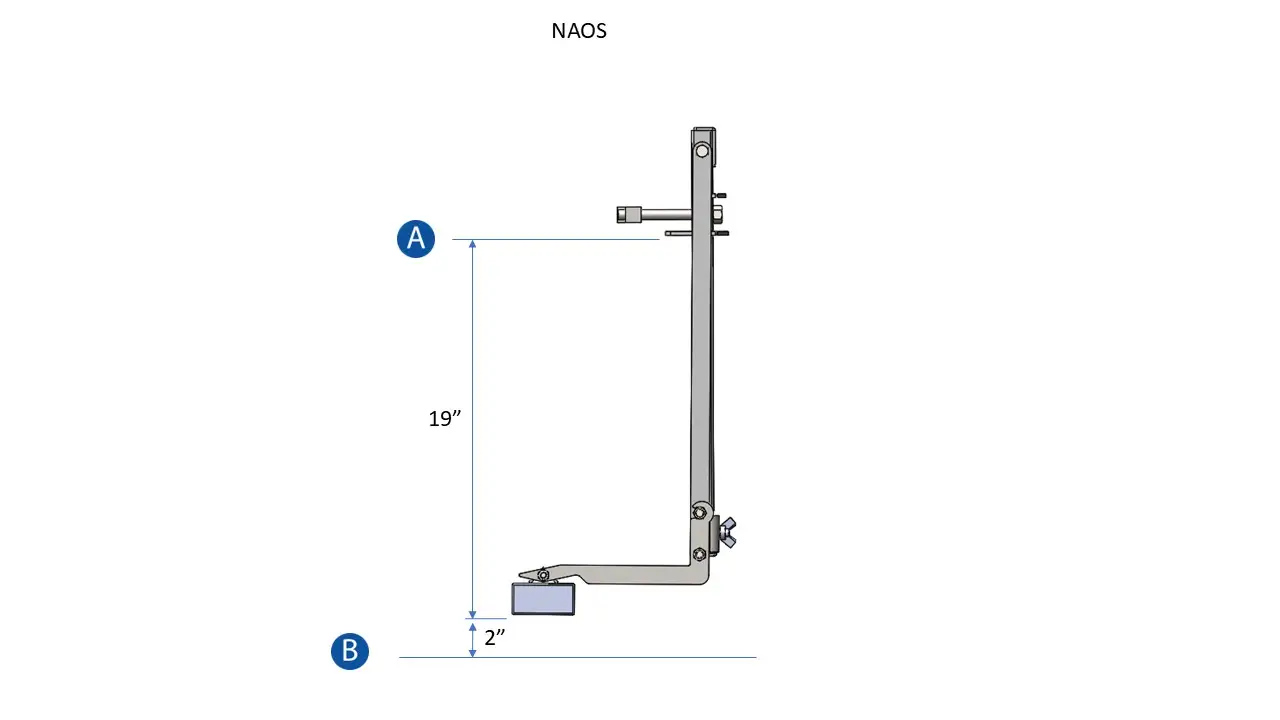

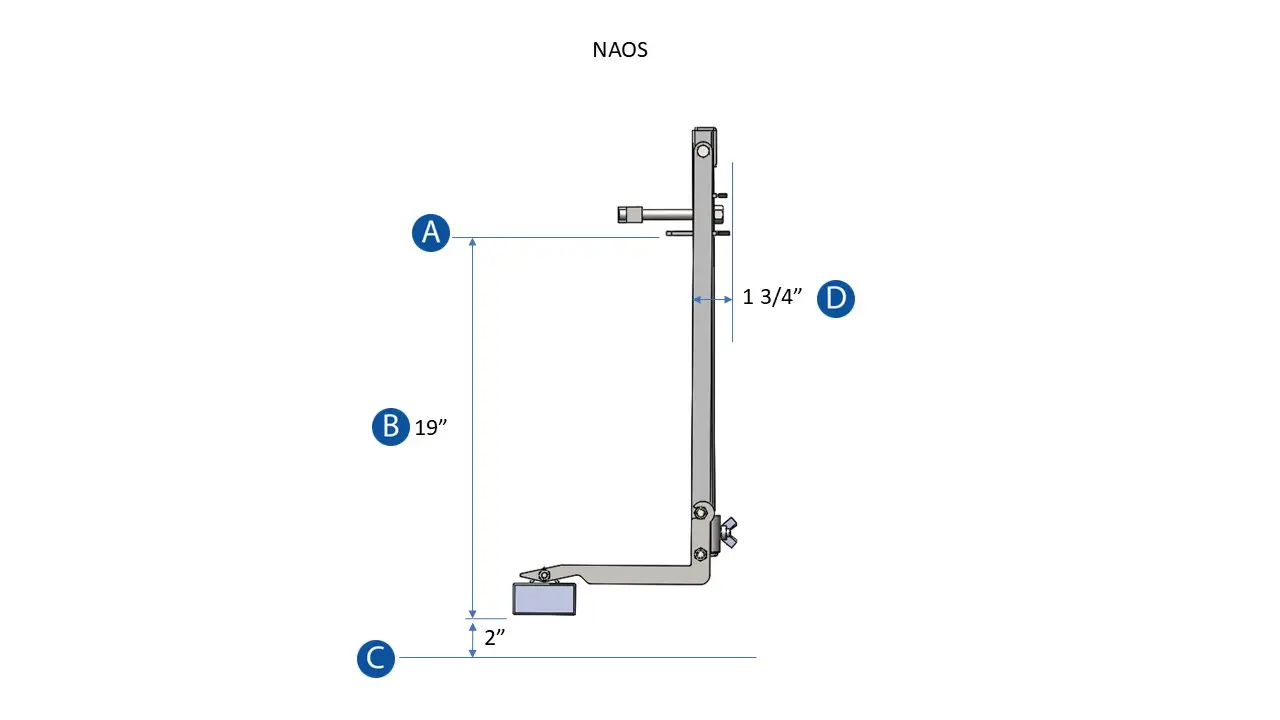

maximum extended dimensions



Steel construction designed for long term durability

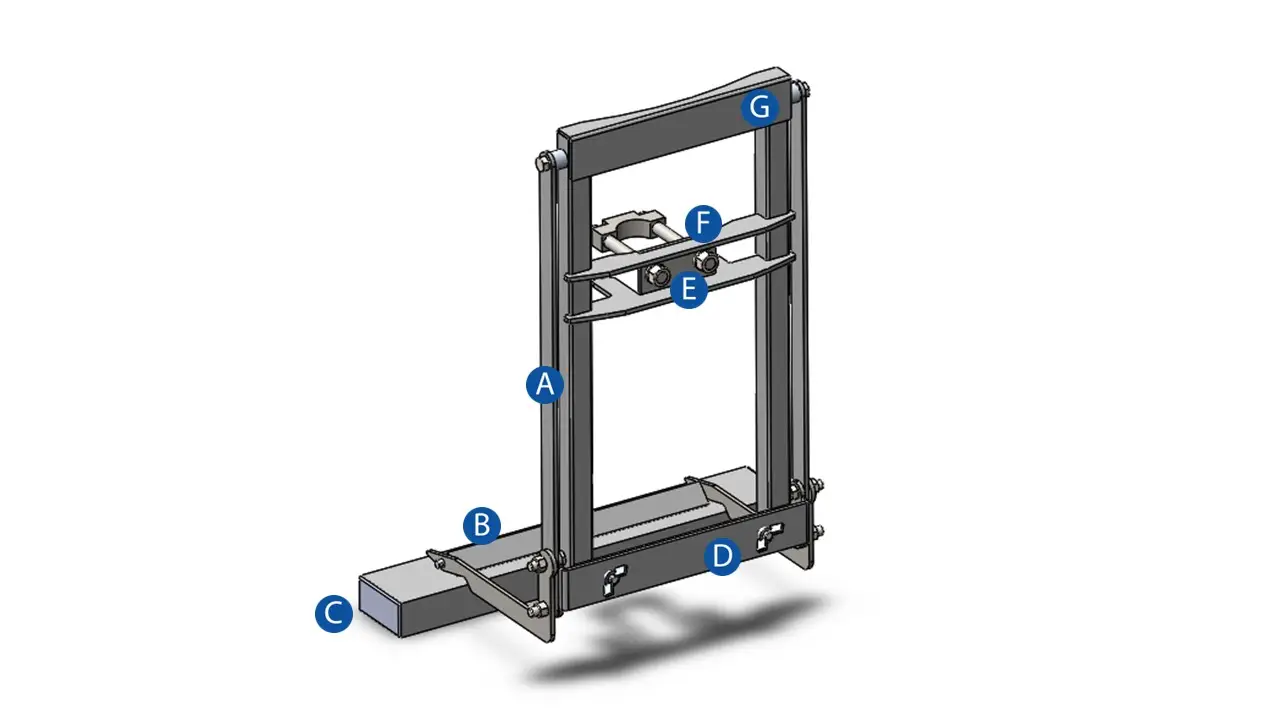

Naos Heavy Duty Construction

Acid washed and power coated black paint finish for long life.
Replacement parts can be ordered on this website if needed.



The NAOS uses permanently charged grade C8 magnets that will never need to be recharged. Power will never decrease, ensuring years of use.

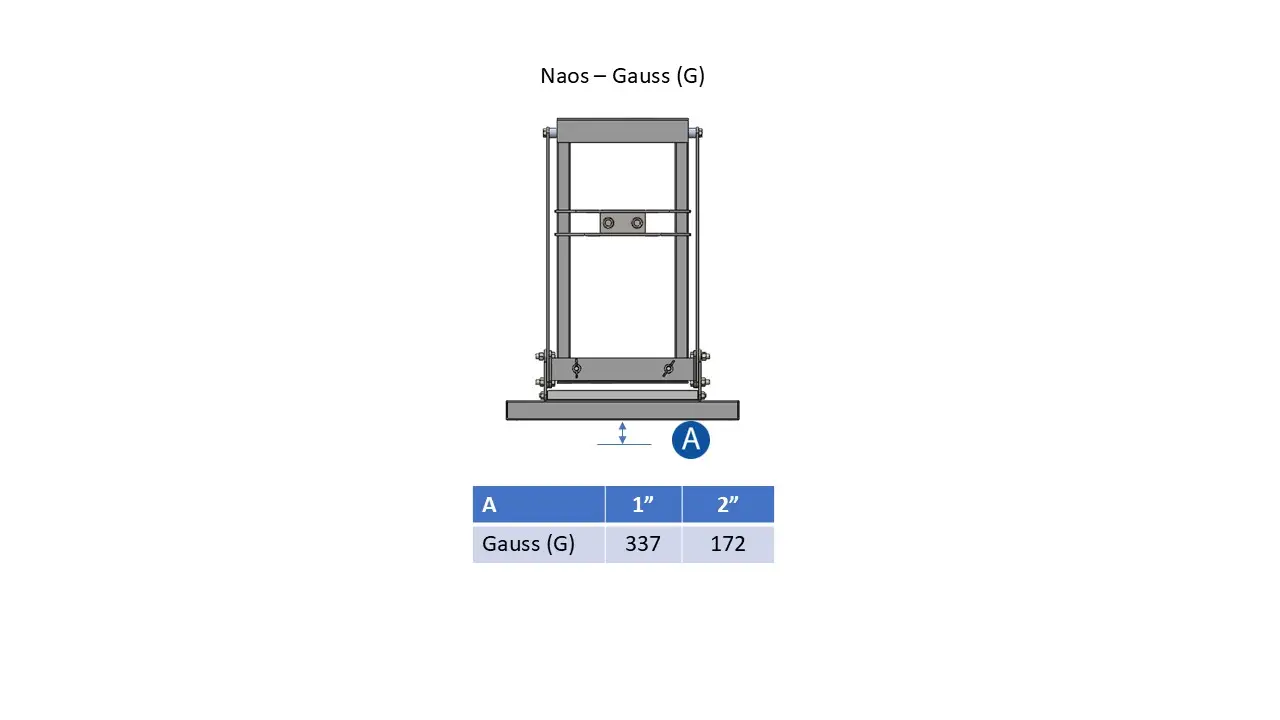

NAOS Gauss Measurements

Reviews

0 of 0 reviews

Sorry, no reviews match your current selections

Literature


NAOS™ Series Brochure

1 file(s) | 1.12 MB


NAOS™ Series Assembly Instructions

1 file(s) | 223.39 KB


NAOS™ Series FIT Guidelines

1 file(s) | 1.3mb

Parts



Part #1 Naos steel half round pin hook (1pc)

$ 59.43


Part #2 Naos steel 5″ threaded rods for pin hook (2 pcs)

$ 26.41


Part #3 Naos Steel 9″ threaded rods for pin hook (2 pcs)

$ 29.41


Part #4 Naos 0.5″ steel hex nut for pin hook (2 pcs)

$ 23.25

Accessories

There are no Naos Accessories.

Ground level view of NAOS picking up metal debris

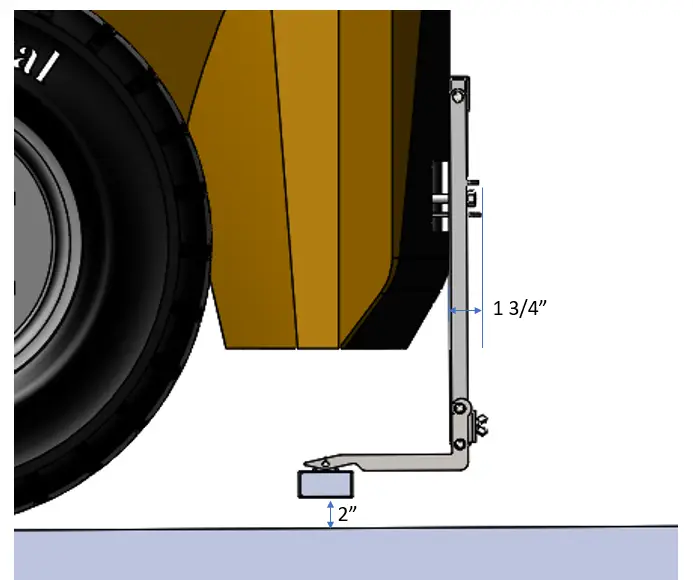

Addition to overall length

Compact Size

The NAOS has a super slim compact design that adds only 1 ¾” inches to the overall length and profile or your forklift so it doesn’t interfere with forklift operations in confined spaces. For further information seed the CAD section for CAD drawings showing the overall dimensions of the NAOS.

For The Perfect Fit
The NAOS is available in 4 different sizes!

The NAOS comes in 4 different sizes. Each size is a different magnet width to accommodate forklifts of different widths. Choose from a 18, 20, 22 or 24 inch wide NAOS model.



See the “NAOS FIT Guidelines” for choosing the best size for your forklift

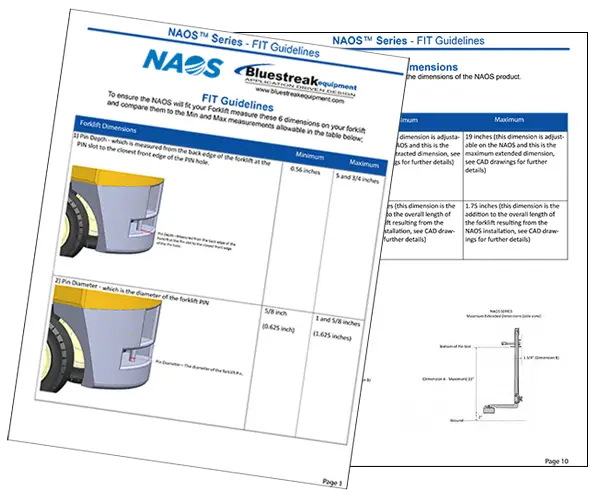

NAOS Series FIT Guidelines
NAOS

Overview of NAOS features

"Swing Up” Design for Quick Easy Magnet Clean Off!

Simply undo the wing nuts and swing the NAOS magnet up and out to waist height where you can wipe the magnet off with a glove or rag directly into a garbage bin. Quick and Easy.

Clean off is quick and easy!

NAOS Magnet Sweeping Height Adjustment Feature

Continuous Sweeping Height Adjustment Feature

Clamping system design allows continuous sweeping height adjustment with no predefined positions allowing you to precisely set the sweeping height to best suit your job site conditions.

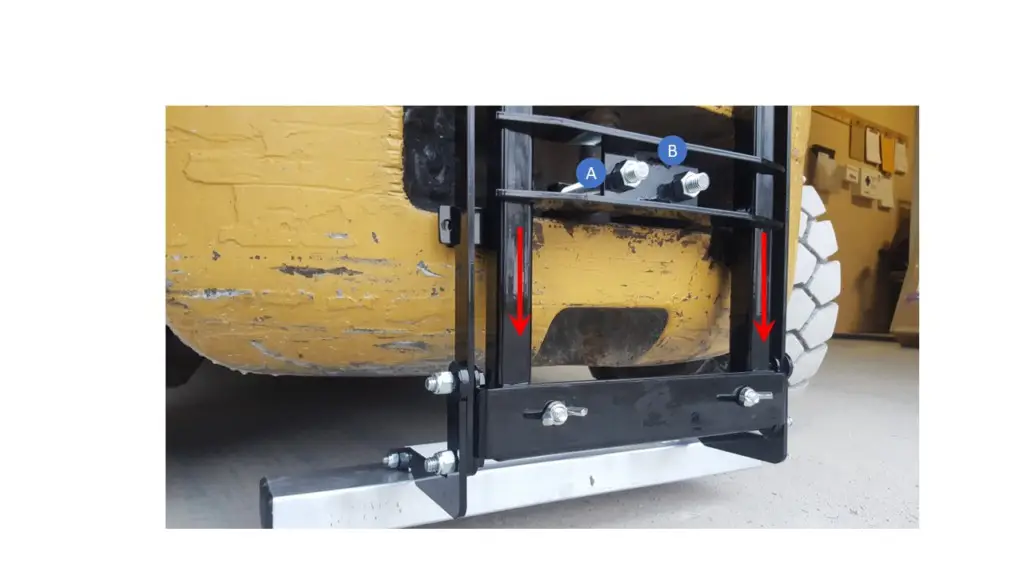

Setting a Precise Sweeping Height is Easy

To adjust the sweeping height of the magnet simply loosen the 0.5” inch steel hex nuts which will loosen off the Steel Mounting Clamp, you can then move the frame of the NAOS up or down to precisely set your desired sweeping height.

Sweeping Height Adjustment

Magnet Mounting Arms Pivot Feature

The magnet mounting arms that extend the magnet under the forklift can also pivot upward to prevent damage in the event the magnet strikes the ground

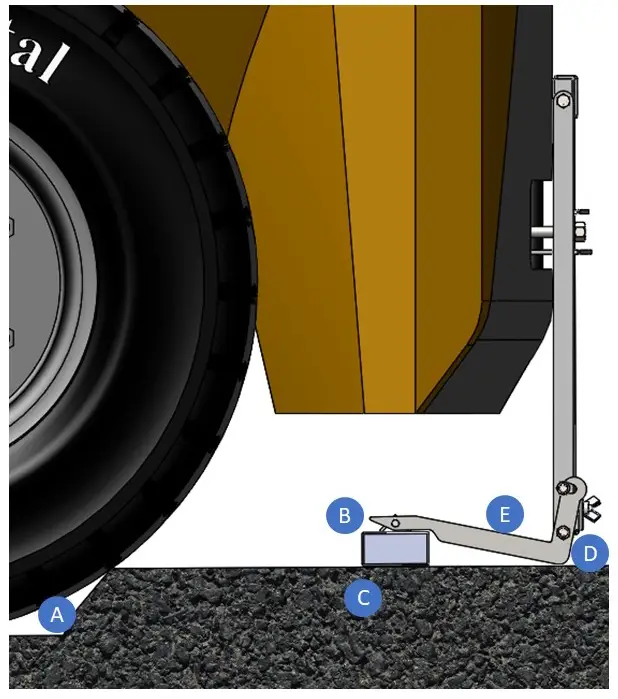

Magnet Arm Pivot Feature - Further Explained

Magnet Pivot Feature

The NAOS magnet can also pivot backward or forward out of the way if it hits something occasionally on the ground.  This pivot feature combined with the Magnet Mounting Arms pivot feature allows the magnet to swing up and out of the way when hit



It isn’t a guarantee of no damages if you hit something, but it eliminates damages in most circumstances where the magnet hits something.

Powerful Pickup Performance

The NAOS will pick up a 2.5” nail when the bottom of the magnet is 4.25” off the ground providing plenty of pickup power performance in dirt and gravel and when operating on moving forklifts.   To maximize performance we recommend setting sweeping height at 2” inches in most situations.

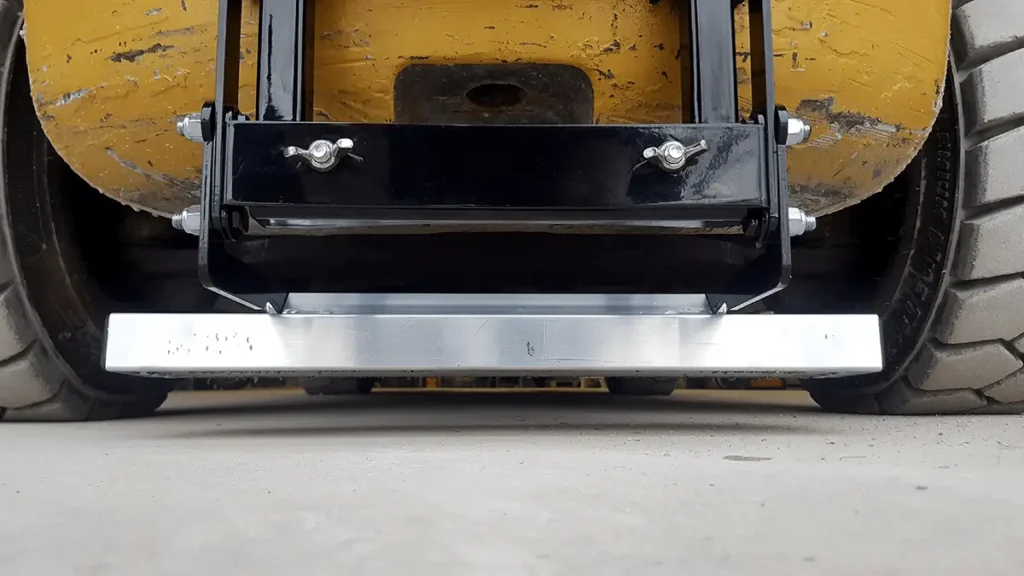

NAOS forklift magnet positioned under rear counterweight

Permanently Charged Grade C8 Magnets

The NAOS uses permanently charged grade C8 magnets that will never need to be recharged. Power will never decrease, ensuring years of use.



The NAOS magnet is completely enclosed within the 1 ½” inch high x 3” inch wide aluminum magnet housing. And the housing length depends on the size of NAOS model chosen. The magnet inside the housing is 1” inch high x 2 ½” inch wide unspaced but is 1” from each end of the magnet housing to allow for the housing end caps.

Eliminate Flat Tires

Many commercial and industrial facilities have a need to eliminate flat tires on forklifts and other vehicles entering and exiting their properties. The cost, interruptions and delays that flat tires cause create the need to for the use of a magnetic sweeper and the NAOS was designed specifically to pick up and remove debris that causes flat tires such as nails, screws, wire, discarded pieces of metal from fabrication activities, bolts, nuts, pins, screw drivers, wrenches, etc.



The NAOS allows you to clean up metal debris as other normal activities are carried out without adding more permanently ongoing labor costs to do so. It results in negligible additional labor costs to solve the problem of flat tires because the magnet is picking up debris as the forklift does normal activities. By eliminating current and future labor costs of solving the flat tire problem, the payback period of investing in the NAOS magnetic sweeper is greatly reduced.



The NAOS is easy to install and setup on any forklift in only a few minutes.



Any facility experiencing flat tires that has a forklift covering the area could use a NAOS to reduce flat tires.

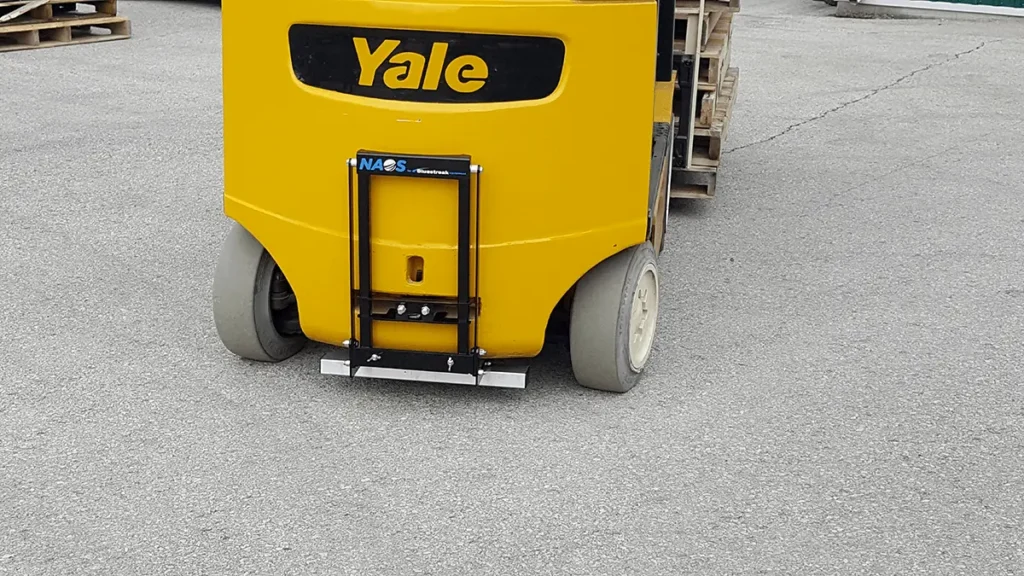

NAOS series forklift magnet

Additional Features
