Hanging Bracket C

Hanging_Bracket_C

$839.99

Shipping Information

Additional information

Weight 50.7 lbs
Dimensions 9 × 9 × 58 in
SKU HBC

Detailed Pictures

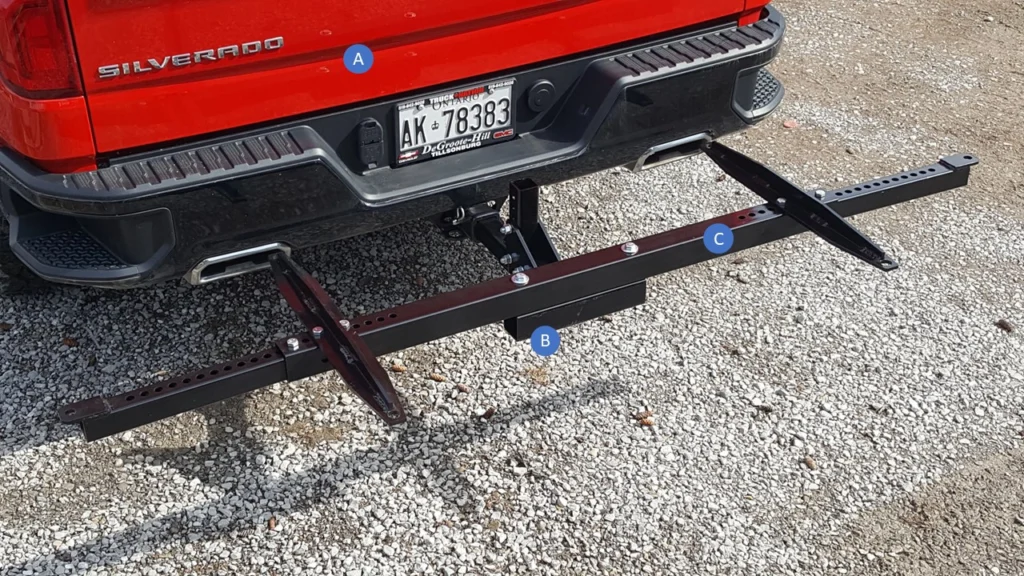

Hanging Bracket C

A: Hanging Bracket C used together with 2” inch Receiver Mount Bracket to plug into 2” inch receiver on back of pickup truck

B: 2” inch Receiver Mount Bracket

C: Hanging Bracket C

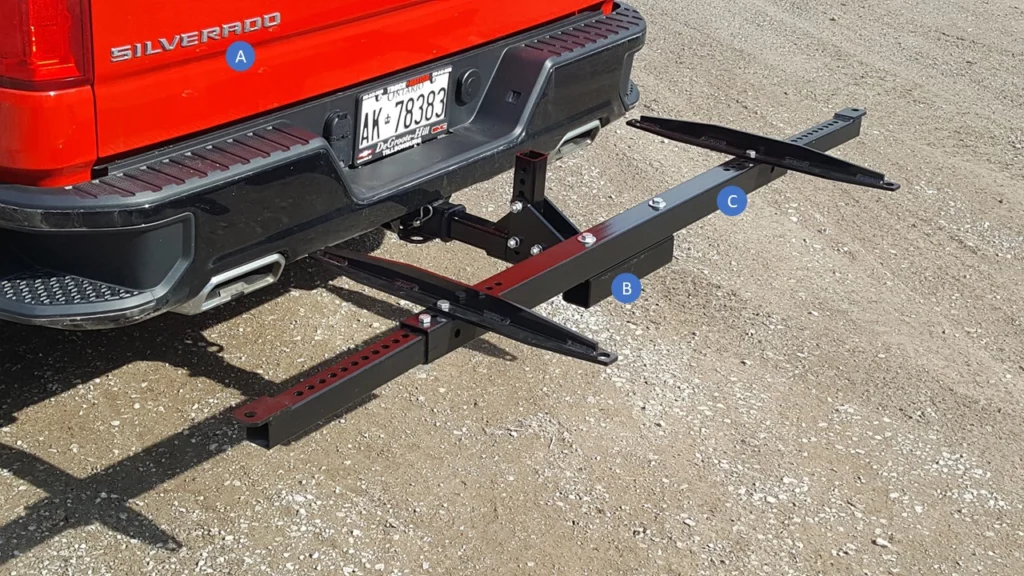

Hanging Bracket C on back of Pickup Truck

A: Hanging Bracket C used together with 2” inch Receiver Mount Bracket to plug into 2” inch receiver on back of pickup truck

B: 2” inch Receiver Mount Bracket

C: Hanging Bracket C

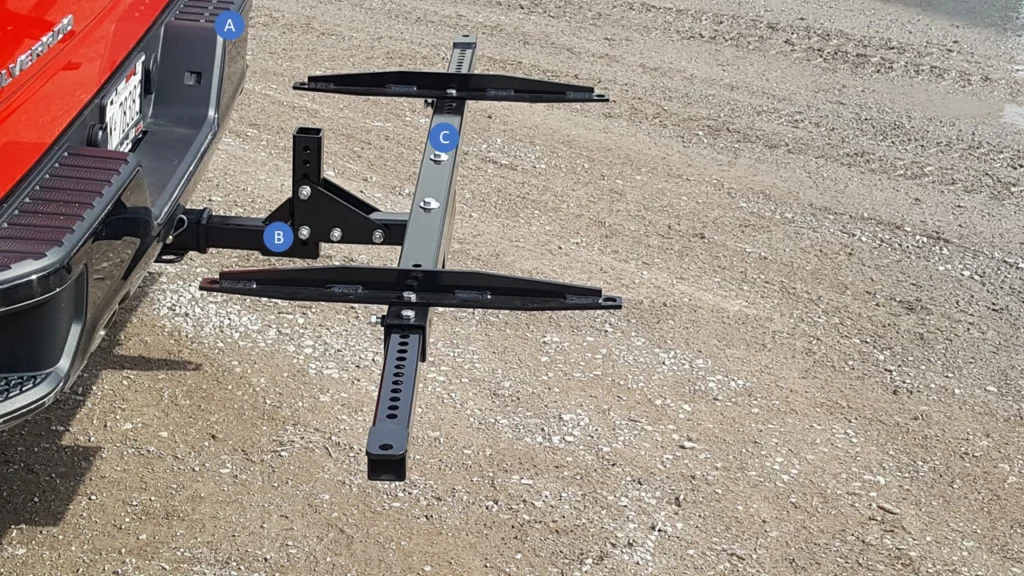

Hanging Bracket C by Bluestreak

A: Hanging Bracket C used together with 2” inch Receiver Mount Bracket to plug into 2” inch receiver on back of pickup truck

B: 2” inch Receiver Mount Bracket

C: Hanging Bracket C

Gallery

Description

Hanging Bracket C is ONLY for the following hanging magnetic sweepers;

ModelSize
Aether62
Aether74
Aether86
Aether98
Alpha86
Alpha98
Erebus 4.5 x 4.562
Erebus 4.5 x 4.574
Erebus 4.5 x 4.586
Erebus 4.5 x 4.598

This accessory takes the pain out of trying to hang one of the magnetic sweepers listed above from a vehicle. As a customer you don’t have to figure out how to mount the magnetic sweeper you’re purchasing and you don’t have to build any custom mounting bracket on your own.  You can be more confident that the magnet is hung securely and won’t damage your vehicle. As a customer you simply pick the hanging magnetic sweeper you want and based on that selection, you then look at the “Hanging Bracket Selection Chart and FIT Guidelines” and pick the correct hanging bracket (A, B, C, D or E).  These hanging brackets connect to the magnetic sweeper, but they also have to connect to something else to get them connected to the vehicle.  And we have several options to do this. To connect one of the above Hanging Brackets A, B, C, D or E  to your vehicle we have several other accessory options;

  1. 2” inch Receiver Mount Bracket – if you already have or are willing to install a 2” receiver hitch on the front or rear of your vehicle you can purchase the 2” inch Receiver Mount Bracket accessory to slip into the 2” inch receiver on your vehicle. The 2” inch Receiver Mount Bracket then connects to Hanging Bracket A, B, C, D or E.
  2. 2.5 to 2 inch Steel Receiver Adaptor Sleeve – If you already have or are willing to install a 2.5” receiver hitch on the front or rear of your vehicle you can purchase the 2.5 to 2 inch Steel Receiver Adaptor Sleeve accessory  plus the 2” inch Receiver Mount Bracket accessory.  The 2.5 to 2 inch Steel Receiver Adaptor Sleeve slips into the 2.5” inch Receiver on your vehicle then allowing you to slip in the Bumper Mount Bracket A.  The 2” inch Receiver Mount Bracket then connects to Hanging Bracket A, B, C, D or E.
  3. Bumper Mount Bracket A – if you have a larger commercial truck or other vehicle with a large steel bumper you can use this accessory to bumper mount your magnetic sweeper. You attach Bumper Mount Bracket A to your vehicle. Bumper Mount Bracket A then connects to Hanging Bracket A, B, C, D or E.
  4. Kubota Snow plow Mount for Hanging Bracket – This bracket adapts a Kubota UTV snow plow mounting system to work with any Bluestreak hanging bracket. This gives the operator hydraulic control over the height of the magnet and works with Hanging Bracket A, B, C, D or E

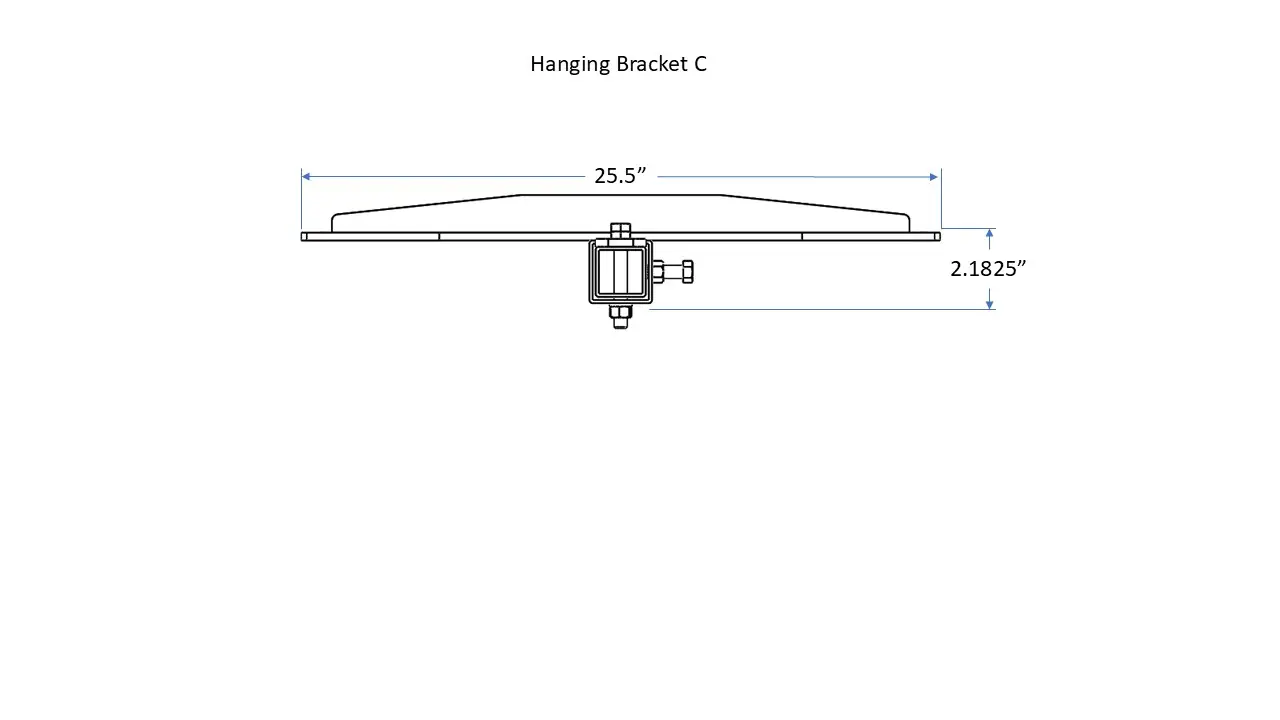

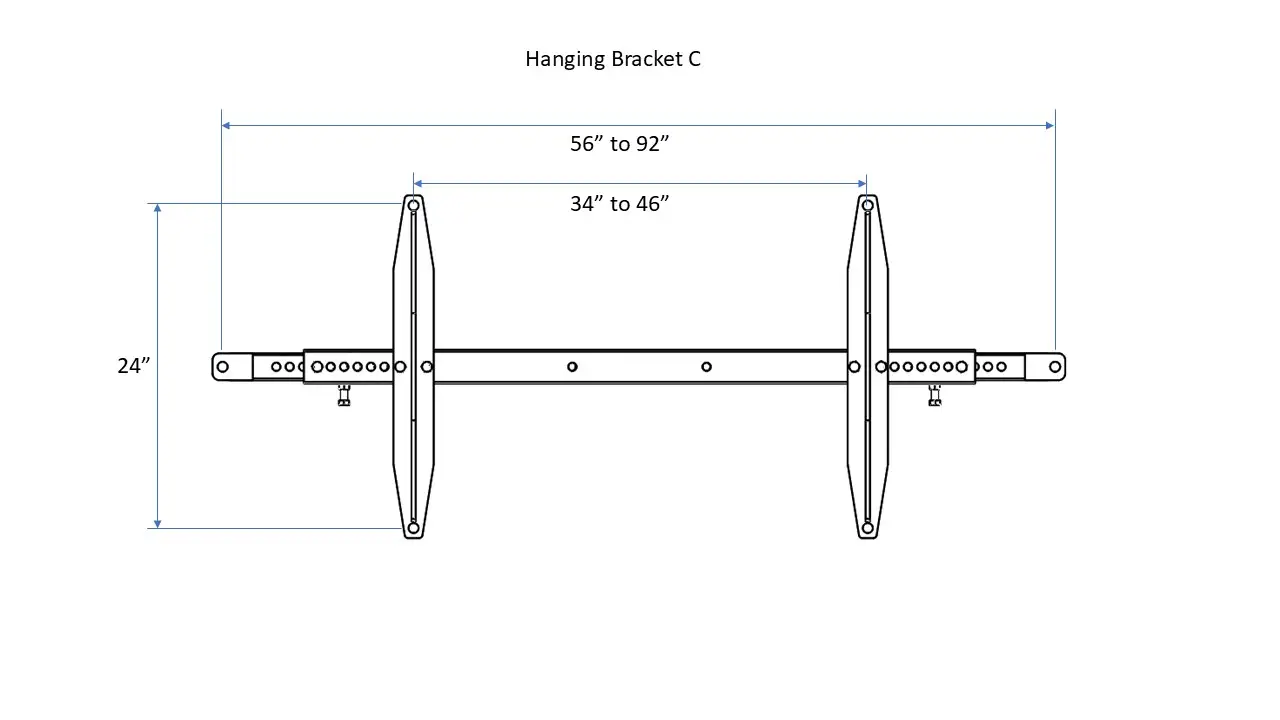

CAD Drawings
