ATV Front Mounted Magnet

UTV Front Mounted Magnet

Light Skid Steer / Tractor Magnet

Skid Steer Magnet Gravity Clean Off

Loader / Skidsteer Magnet Gravity Clean Off

Skid Steer Magnet Hydraulic Clean Off

Ball Mill Abrasive Skidsteer Magnet

Front Mounted Commercial Truck Magnet

Self Levelling Suspension & Onboard Debris Bins

Maximize Safety and Speed with the new industry standard for heavy truck magnetic sweeping

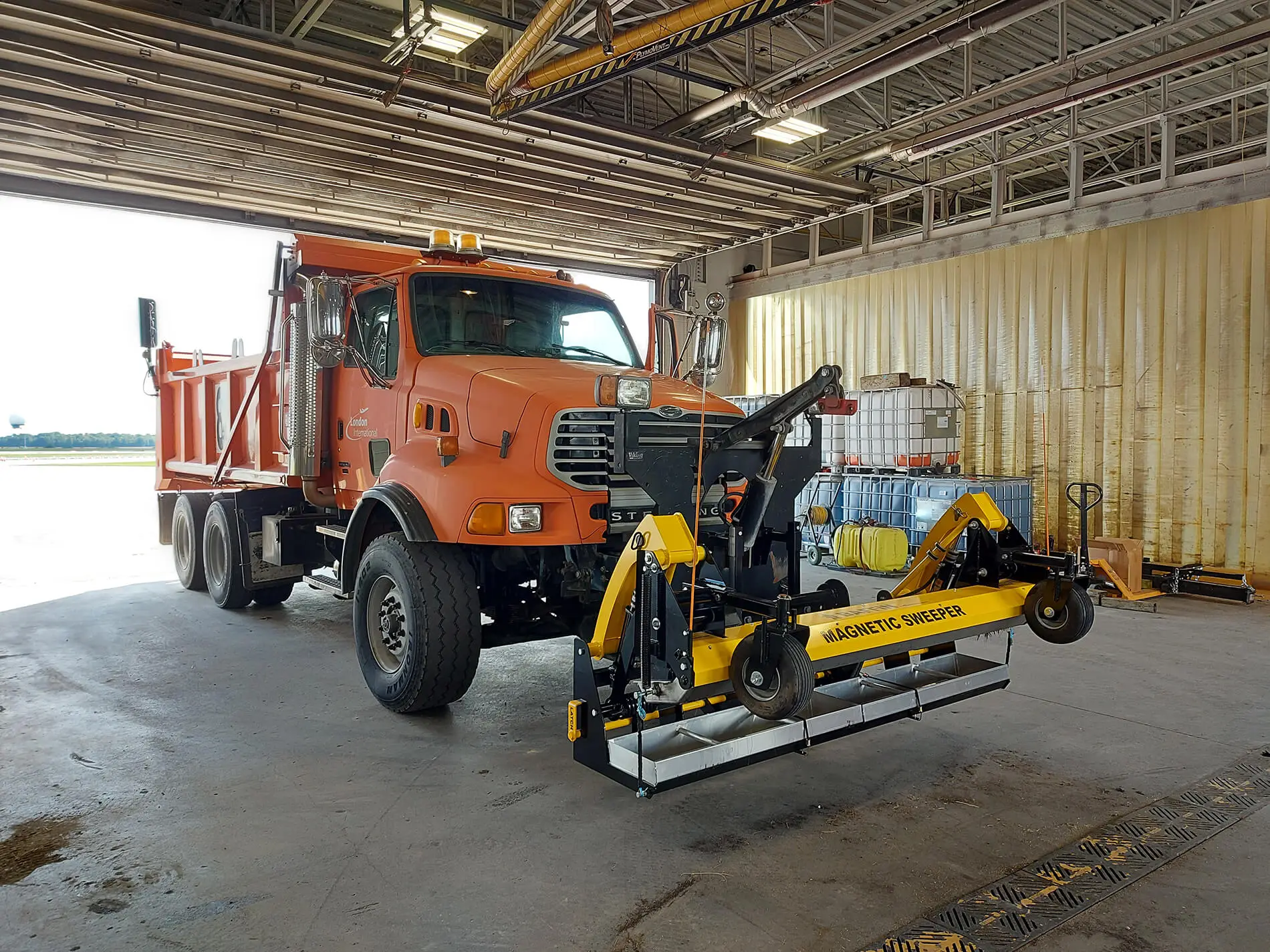

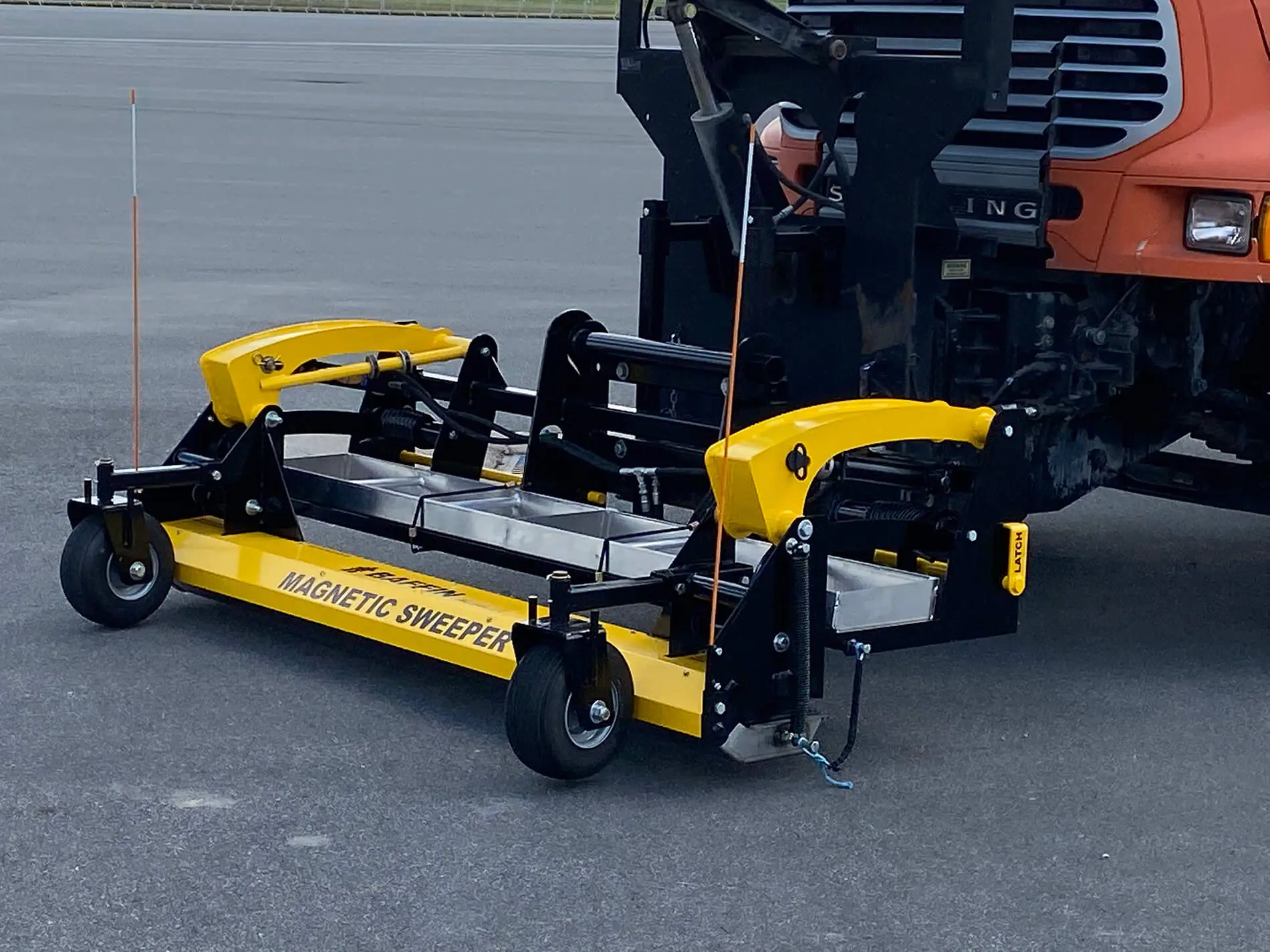

The Baffin magnetic sweeper is designed to be the premier front mounted heavy commercial truck magnet on the market. It’s suspension system keeps the magnet planted at the right height through hard turns and over bumps to eliminate the need for constant height adjustment. The Baffin also has a clean-off system that allows drivers to empty the magnet quickly and safely from the truck cab without ever having to get out of the truck or handle debris.

With a maximum pickup height of 10.75”, the Baffin is well suited to collect any metal debris up to 25 km/h (~15 mph) at the recommended sweeping height of 2” inches.

And the two on-board removable 1.65 cubic foot debris bins allow for the 95” inch wide magnet to be cleaned off multiple times before the bins need to be emptied. This increases efficiency by letting the magnet spend more time sweeping. And by easily keeping the magnet clear of debris there is more power available to collect debris which further increases efficiency.

Sweeping height adjustment (recommended 2”-5” inches) is done using stroke control blocks on the hydraulic cylinders. Moving from sweeping height to the travelling height of 10.5” inches just requires a cycle of the hydraulics (this position can be maintained by inserting all the supplied stroke control blocks or you may rely on the hydraulic system to keep the magnet suspended).

Ball Mill Clean Up Magnetic Sweeper for Skid Steers

The Sunda magnetic sweeper is built to quickly retrieve all sizes of steel balls used in ball mills. This is possible thanks to the permanently charged 12” x 11” x 48” C8 ceramic magnet housing that can reliably pick up steel balls and will hold 247Lbs of 20mm balls without dropping any. When its time to empty the debris off, the Sunda uses a hydraulic ram powered by the skid steer’s auxiliary hydraulics to separate the debris pan from the magnetic field which drops everything off onto the ground or over a bin.

The massive magnetic power of the Sunda also enables it to be an excellent magnetic sweeper for general metal debris clean up. The Sunda can pick up a 2.5” inch 8 penny nail from 16” inches off the ground, this means you can set the magnet high enough to avoid hitting the ground while still collecting all debris on the ground while moving.

Thanks to the wrap around function, even if the stainless-steel debris pan hits the ground, debris will just snap around to the back of the magnet rather than knocked off the magnet. The Sunda skid steer magnet also comes standard with a height adjustable 3/8” inch spring steel debris digging rakes equipped. This allows the operator to agitate debris out of packed ground and groom the surface the Sunda is being used on.

shanetesting

Bluestreak Equipment

Application Driven

Self Levelling Suspension & Onboard Debris Bins

Ball Mill Clean Up Magnetic Sweeper for Skid Steers

shanetesting

Bluestreak Equipment

Application Driven

Self Levelling Suspension & Onboard Debris Bins

Model: Baffin

$26,989.99 USD

Ball Mill Clean Up Magnetic Sweeper for Skid Steers

Model: Sunda

$25,899.99 USD
